Version 2:

(Acoustic cover with press-stud fastener)

Press press-stud fasteners (1 to 4) in succession and simultaneously raise acoustic cover slightly. Acoustic cover can be unlocked when all four press-stud fasteners have been unlocked.

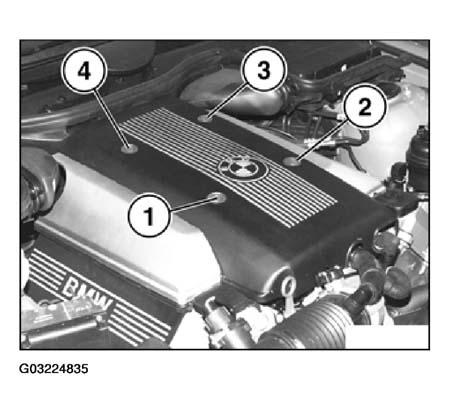

Fig 1: Identifying Press-Stud Fasteners
G03224835
