Acoustic cover version 1:

(Acoustic cover screwed down) Remove sealing caps (1).

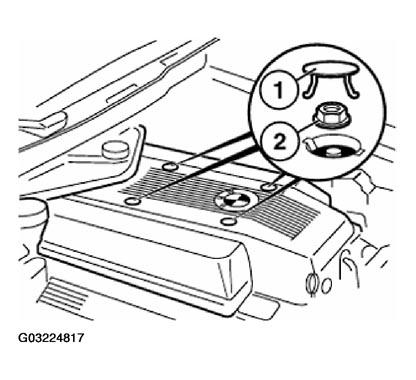

Fig 1: Removing Sealing Caps

G03224817

Release nuts (2).

Remove acoustic cover.
