Version 2

(Acoustic cover with press-stud fastener)

Open press-studs (1 ... 4) one at a time, at the same time lifting the acoustic cover slightly. Once all four press-studs have been opened, remove the acoustic cover.

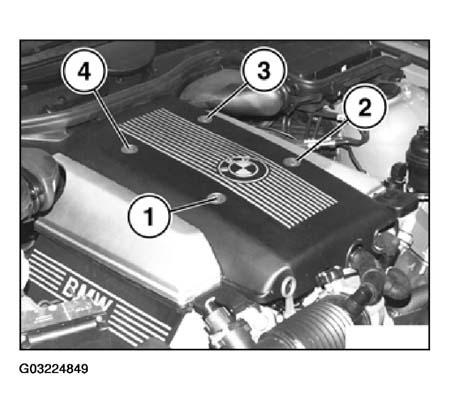

Fig 1: Removing Acoustic Cover (Version 2)
G03224849
