ENGINE ELECTRICAL SYSTEM - REPAIR INSTRUCTIONS - 740i & 740iL
>>
Starter with mounting
>>
12 41 020 Removing and installing/replacing starter (M60, M62)
>>
Cars without primary catalytic converters only (M60/M62):
Cars without primary catalytic converters only (M60/M62):

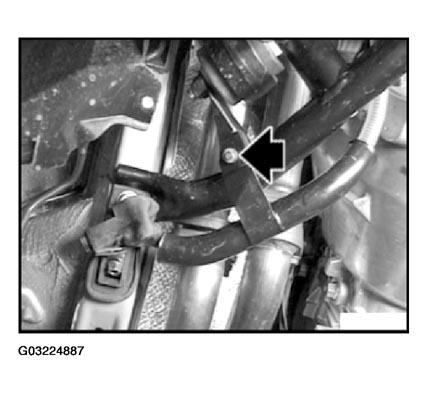

Unscrew screw.
Fig 1: Removing Screw

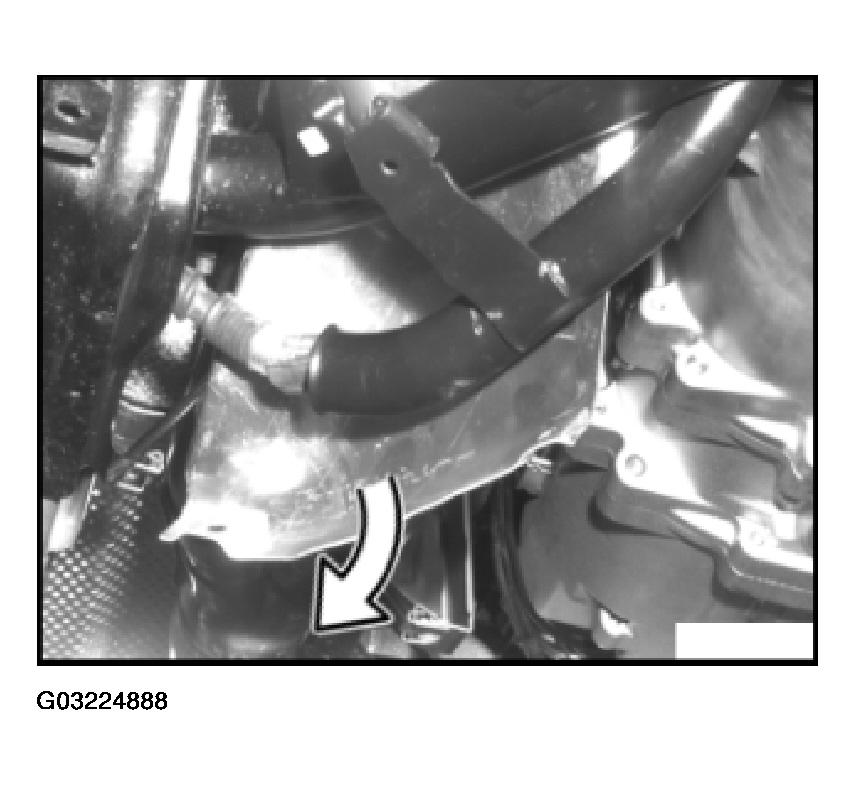

Press cable guide to one side.
Unfasten screws.
Remove shield plate.
Fig 2: Removing Shield Plate
