All cars (M60/M62):

Unfasten connections on starter motor.

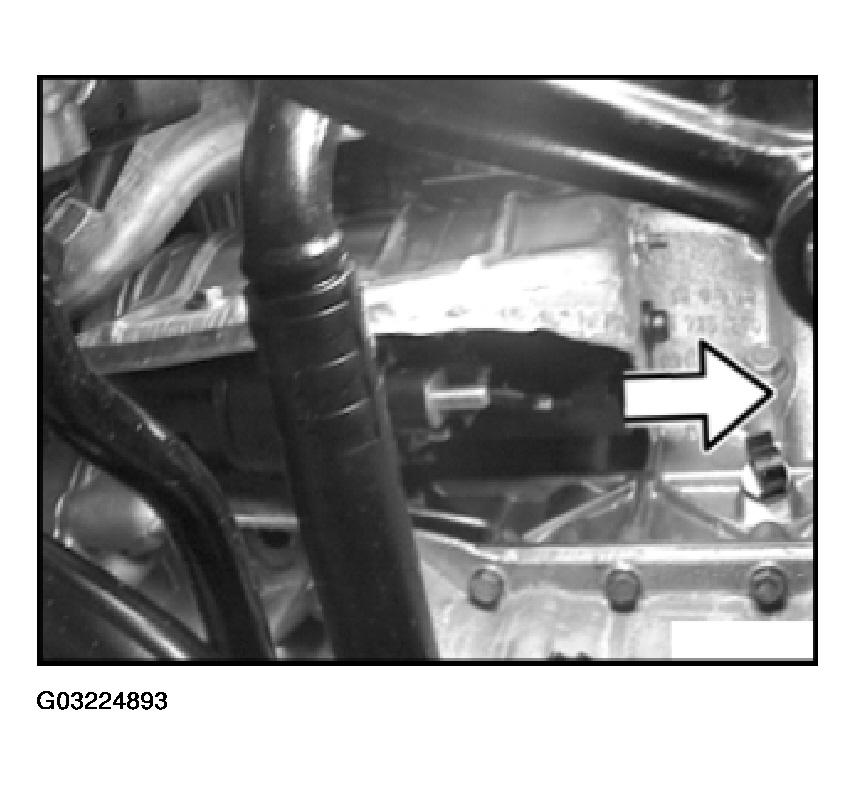

Fig 1: Removing Starter Motor Connection

Tightening Torque, refer to 12 41 4AZ STARTER AND MOUNTING PARTS .

Unfasten screws.

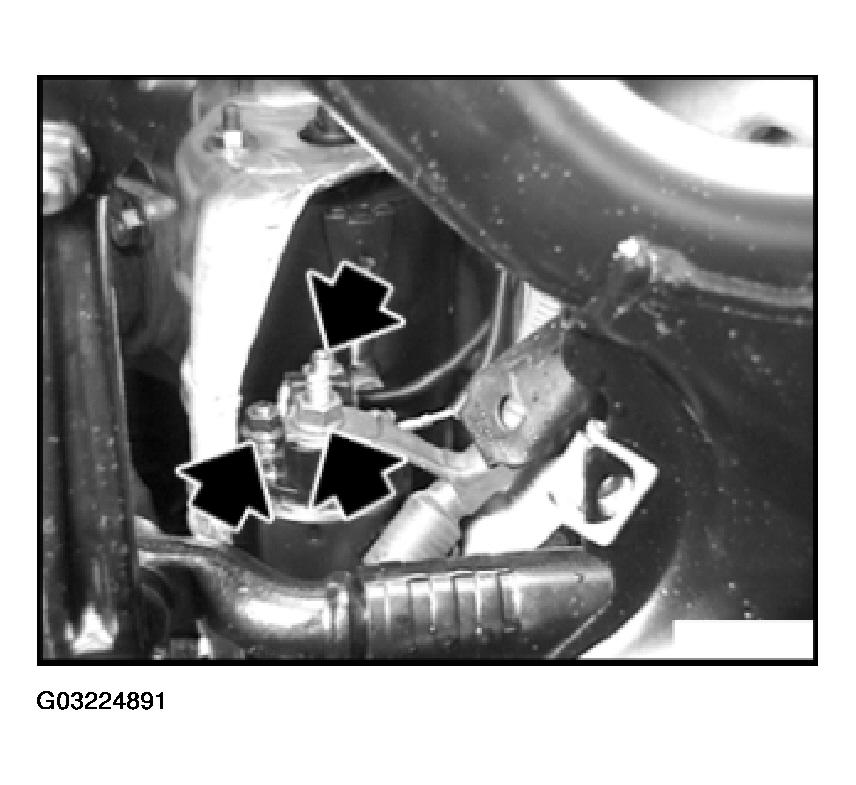

Fig 2: Removing Screws

Tightening Torque, refer to 12 41 1AZ STARTER AND MOUNTING PARTS .

Remove starter motor from transmission mount.

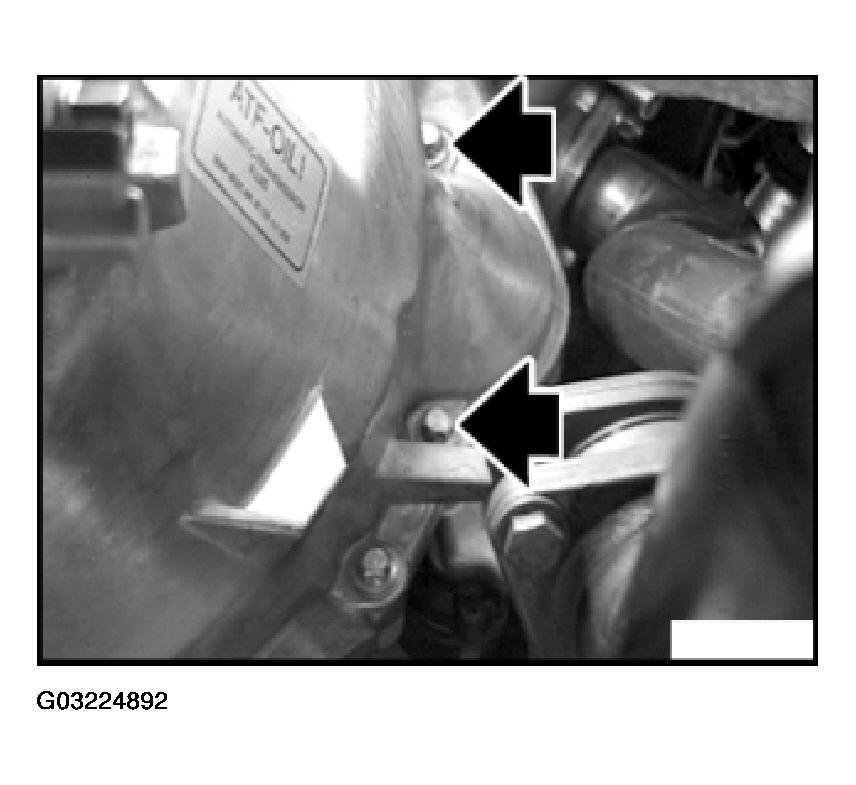

Fig 3: Removing Starter Motor From Transmission Mount

Remove starter motor.
