34 41 220 Removing and installing / replacing all brake shoes of the parking brake: Notes

Remove rear brake disc, refer to 34 21 320 REMOVING AND INSTALLING OR REPLACING BOTH REAR BRAKE DISKS  .

Installation:

Adjust parking brake, refer to 34 41 006 ADJUSTING PARKING BRAKE

Disconnect return springs with brake spring pliers.

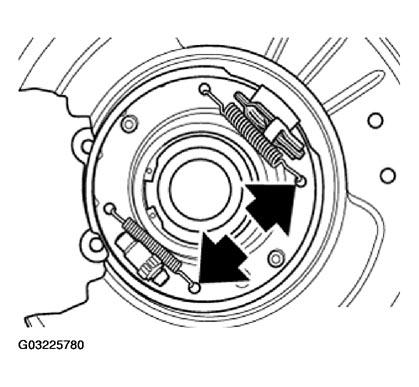

Fig 1: Identifying Return Springs
G03225780
