Removal & Installation

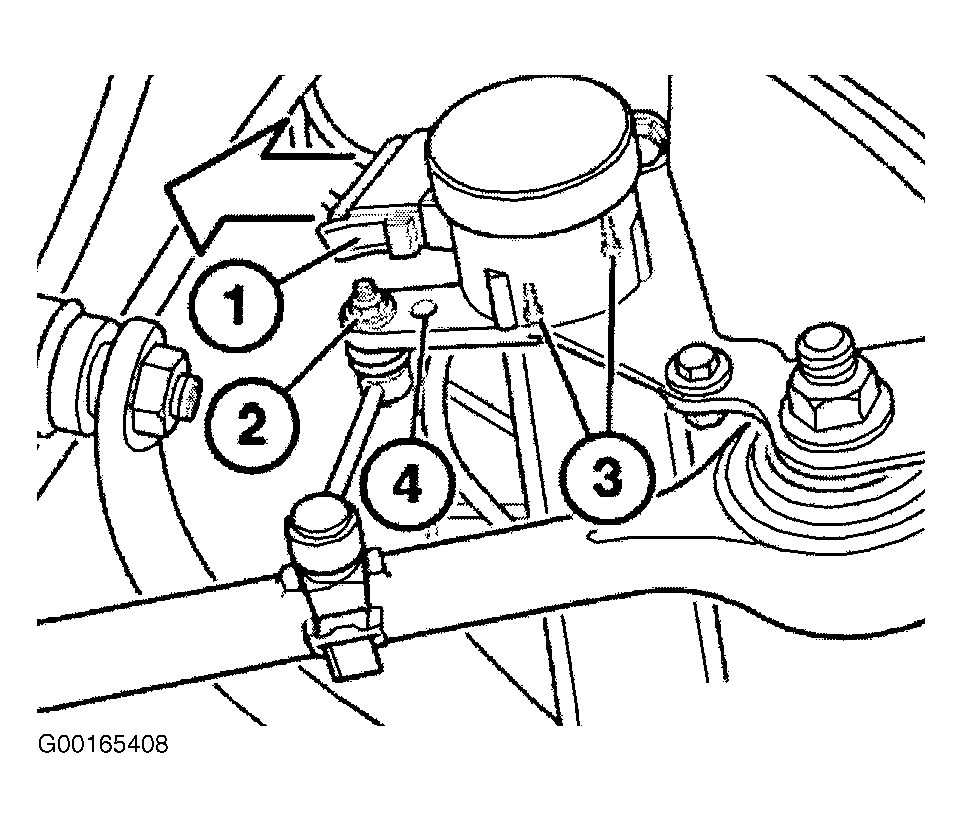

- Remove connector (1). Unfasten nut (2) and disconnect control rod. Release screws (3) and remove height setting sensor. See Fig 1
.

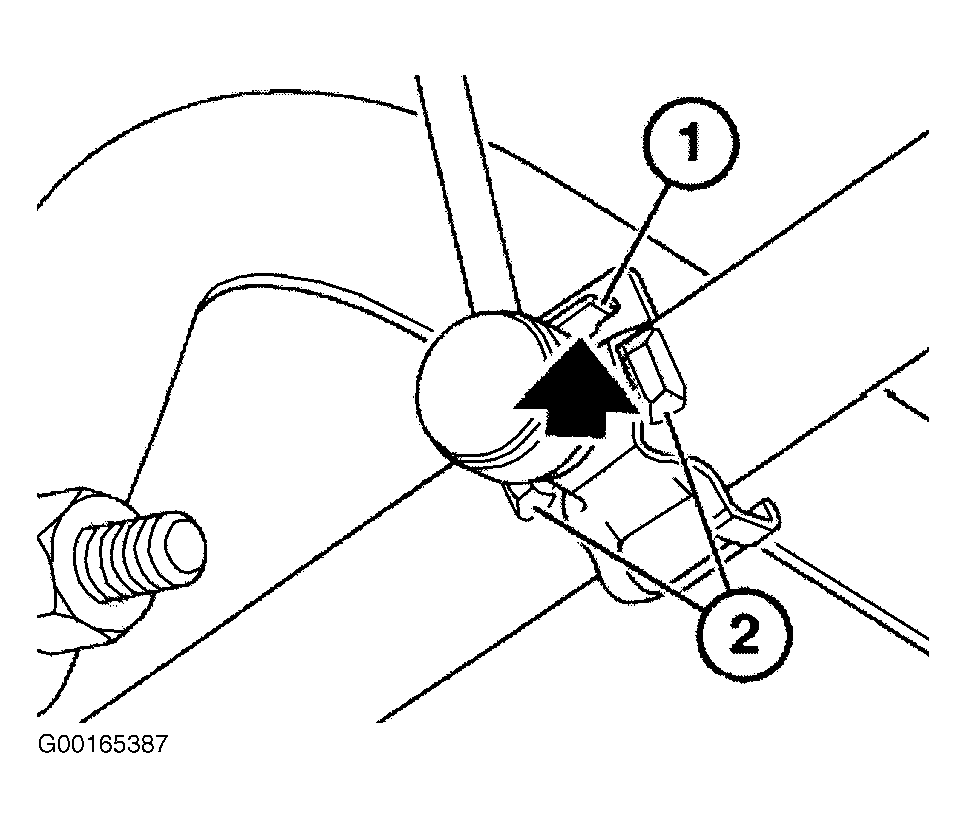

- To install, reverse removal procedure. If replacing the control rod, disconnect tab (1). The bracket must be located between both cast lugs (2). Ensure that tab (1) is seated correctly. See Fig 2
.
- Lever (4) points outwards. See Fig 1
. Tighten nuts and screws to specification. See TORQUE SPECIFICATIONS
.
- After assembly, check headlight adjustment.
