Axle Carrier: Installation

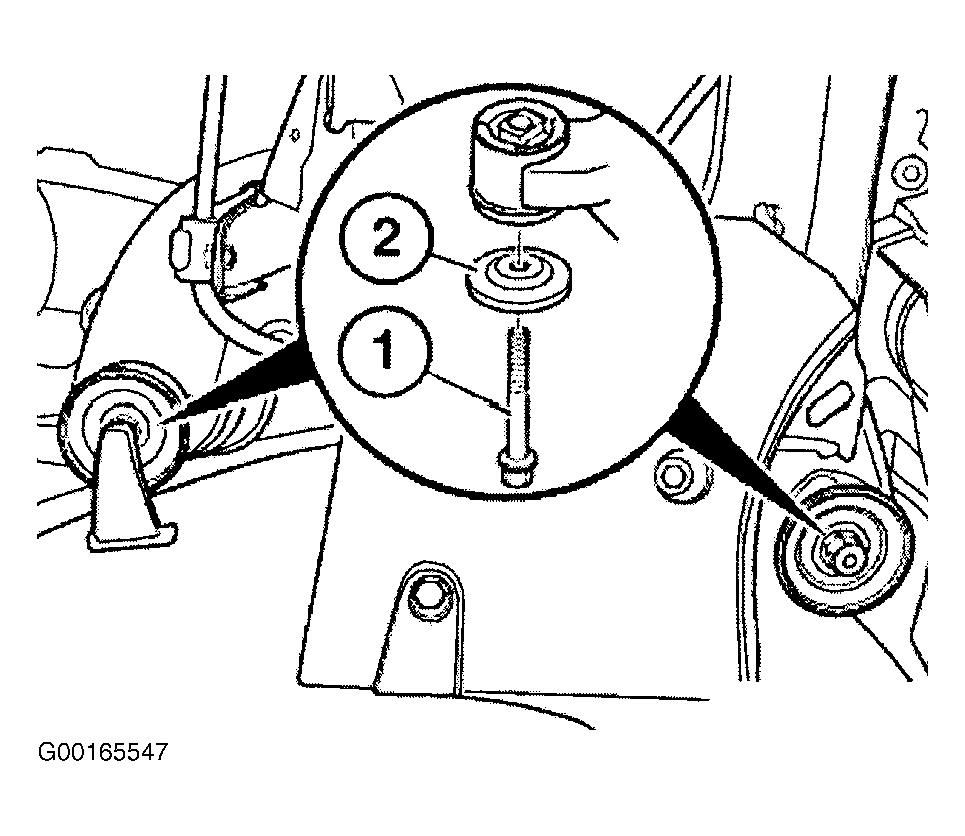

  1. To install, reverse removal procedure. The rubber-coated detent plate (2) must be installed at the rear in the driving direction. See Figure. Tighten bolts to specification. See TORQUE SPECIFICATIONS .
  2. When installing shock absorber, insert bush (1) in the bore on the wheel carrier. See Fig 1. Tighten fasteners to specification. See TORQUE SPECIFICATIONS .
Fig 1: Locating Bush In Bore On Wheel Carrier
G00165394Courtesy of BMW OF NORTH AMERICA, INC.
