33 4 400 Puller fixture
SPECIAL TOOL DESCRIPTION
| Note: | For removing inner wheel bearing races on rear axle |
|---|---|
| Series: | E12, E21, E23, E24, E28, E30, E30/C, E30tou, E31, E32, E32/3, E34, E34tou, E36, E36/2, E36/3, E36/5, E36/7, E36/C, E36tou, E38, E38/3, E39, E39PL, E39tou, E46, E46/16, E46/2, E46/3, E46/5, E46/C, E52, E53, E60, E61, E63, E64, E65, E66, E67, E83, E85, E87, E91, RR1 |
| SI number: | 1 05 99(426) |
| Order number: | 33 4 400 |

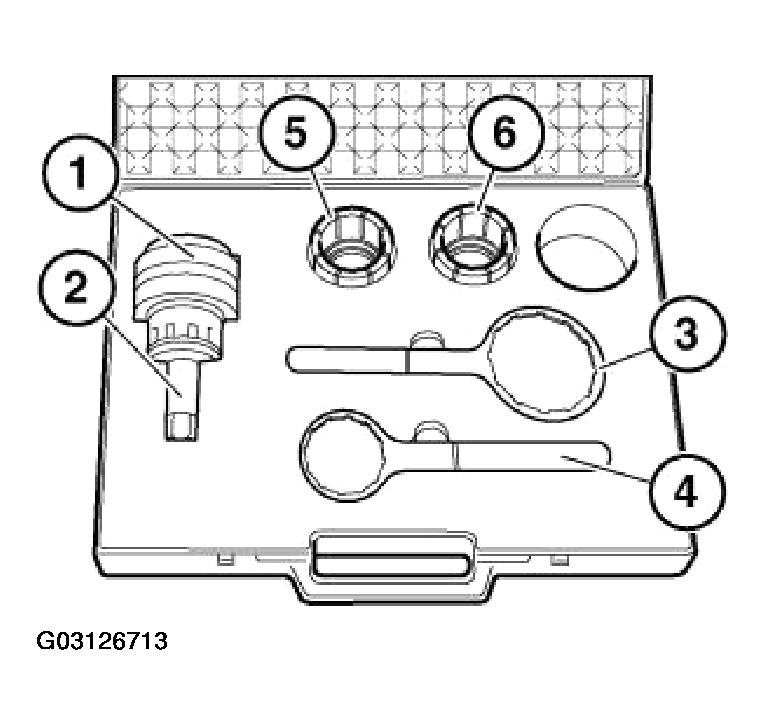

| Puller fixture | |
| Consisting of: | |
| 1 = 33 4 401 | Basic body |
| 2 = 33 4 402 | Spindle |
| 3 = 33 4 403 | Wrench, large |
| 4 = 33 4 404 | Wrench, small |
| 5 = 33 4 405 | Clamping pliers (45...51 mm) |
| 6 = 33 4 406 | Clamping pliers (50...55 mm) |
| 7 = 33 4 407 | Clamping pliers (55...61 mm) |
|
NOTE:
Model series: E67
|
