33 4 160 Removal/installation thrust pieces
Minimum set: Mechanical tools
SPECIAL TOOL DESCRIPTION
| In conjunction with: | 33 3 312, 33 3 314, 33 3 315 |
|---|---|
| Note: | For removing and installing rubber mount at front of rear axle differential (split rubber mount) |
| Series: | E38, E39, E60, E61, E63, E64, E65, E66, E67, E87, E90, E91, RR1 |
| Storage location: | B33 |
| SI number: | 1 06 94(801) |
| Order number: | 33 4 160 |

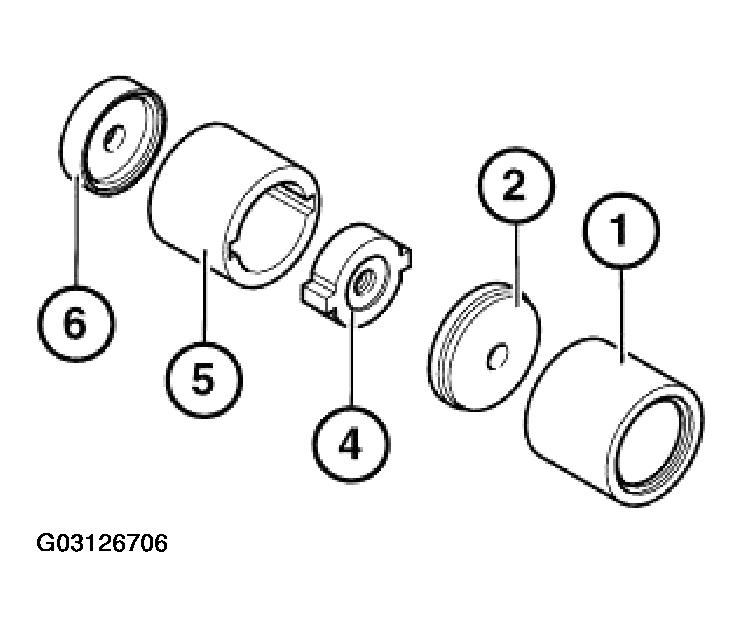

| Removal/installation thrust pieces | |
| Consisting of: | |
| 1 = 33 4 161 | Support tube |
|
NOTE:
For removal
|
|
| 2 = 33 4 162 | Support plate |
|
NOTE:
For removal
|
|
| 4 = 33 4 164 | Thrust piece |
|
NOTE:
For installation
|
|
| 5 = 33 4 165 | Guide tube |
|
NOTE:
For installation
|
|
| 6 = 33 4 166 | Support plate |
|
NOTE:
For installation
|
