33 2 100 Clamping fixture
SPECIAL TOOL DESCRIPTION
| Note: | For gripping output shafts when press-fitting constant-velocity joint |
|---|---|
| Series: | E12, E21, E23, E24, E28, E30, E31, E32, E34, E36, E36/7, E38, E39, E46, E52, E53, E60, E61, E63, E64, E65, E66, E67, E83, E85, E87, E90, E91 |
| Storage location: | C23 |
| SI number: | 1 06 94(801) |
| Order number: | 33 2 100 |

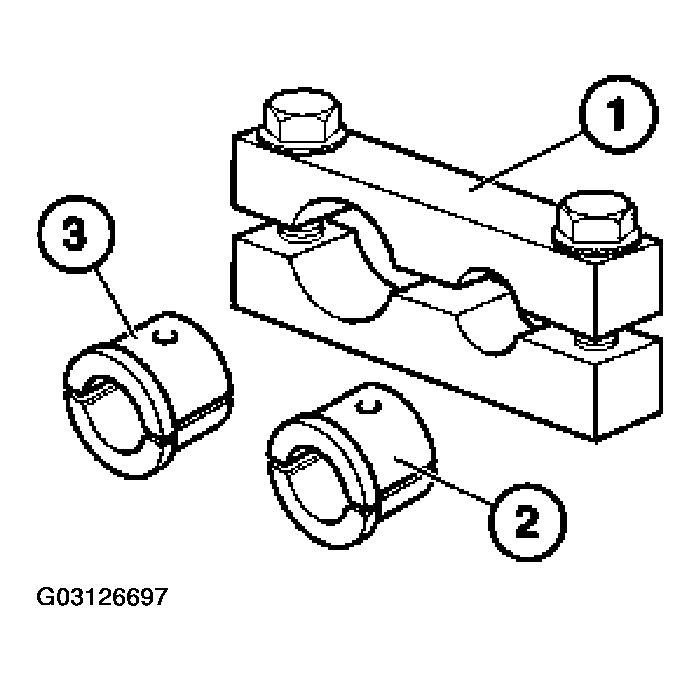

| Clamping fixture | |
| Consisting of: | |
| 1 = 33 2 101 | Frame |
| 2 = 33 2 102 | Insert shell (2 x) |
|
NOTE:
Diameter 30 mm - model series: E38/model: 730i
|
|
| 3 = 33 2 103 | Insert shell (2 x) |
|
NOTE:
Diameter 35 mm - model series: all, except E38
|
