33 1 150 Fixture
SPECIAL TOOL DESCRIPTION
| Note: | For detaching drive flanges. |
|---|---|
| Series: | E30, E32, E34, E36, E38, E39, E46/16, E53, E60, E61, E65, E66, E67, E83, E85, E87, E90, E91 |
| Transmission: | GS6-17BG, GS6-37BZ, GS6-37DZ, GS6-53BZ, GS6-53DZ, diff. type G, diff. type K, diff. type M, S5D 200G, S5D 250G, S5D 260Z, S5D 310Z, S5D 320Z |
| Storage location: | B49, C20, C21, C49 |
| Order number: | 33 1 150 |
| Fixture | |

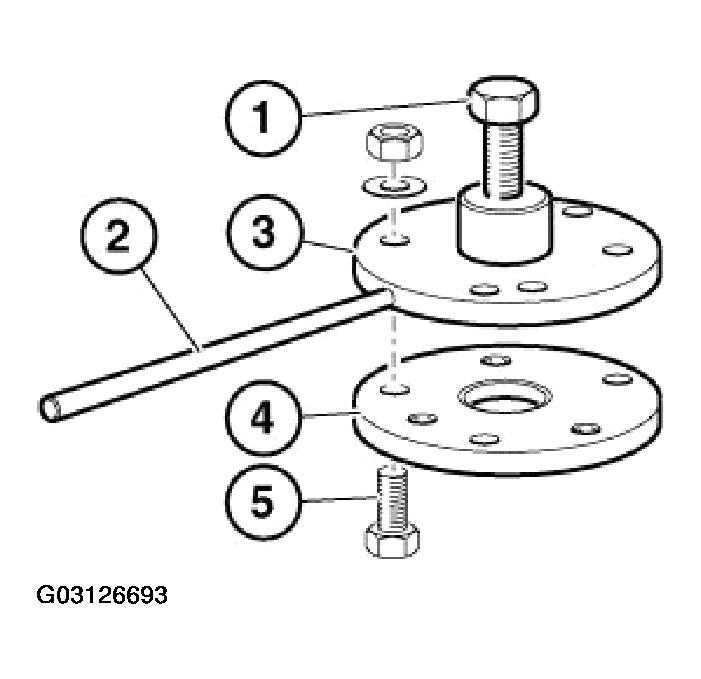

| Consisting of: | |
| 1 = 33 1 151 | Spindle |
| 2 = 33 1 152 | Drift |
| 3 = 33 1 153 | Disc |
| 4 = 33 1 154 | Adapter plate |
|
NOTE:
Transmission: GS6-57DZ, GS6-53BZ (G-transmission) GS6-51DZ, GS6-51BZ (H-transmission)
|
|
| 5 = 33 1 155 | Countersunk screws M10x30 (3 x) |
|
NOTE:
Transmission: GS6-57DZ, GS6-53BZ (G-transmission) GS6-51 DZ, GS6-51 BZ (H-transmission)
|
