33 1 070 Holding fixture
SPECIAL TOOL DESCRIPTION
| In conjunction with: | 00 1 450 |
| Note: | For mounting rear axle differential on assembly frame |
| Series: | E23, E24, E32, E34, E36, E38, E39 |
| Transmission: | Rear axle differential type G, K, M |
| SI number: | 1 05 95(932) |
| Order number: | 33 1 070 |

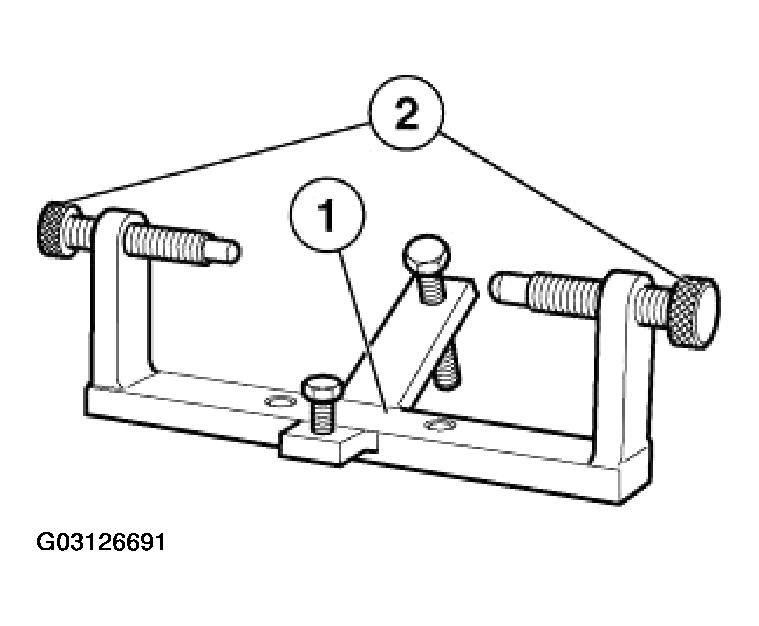

| Holding fixture | |
| Consisting of: | |
| 1 = 33 1 071 | Base frame |
| 2 = 33 1 072 | Knurled screws M16 (2) |
