61 67 040 Adjusting spray nozzles for headlight-cleaning system

Spray jet contact point approx. in center of lower-beam headlamp.

Adjust spray jet contact point with special tool 61 6 200.

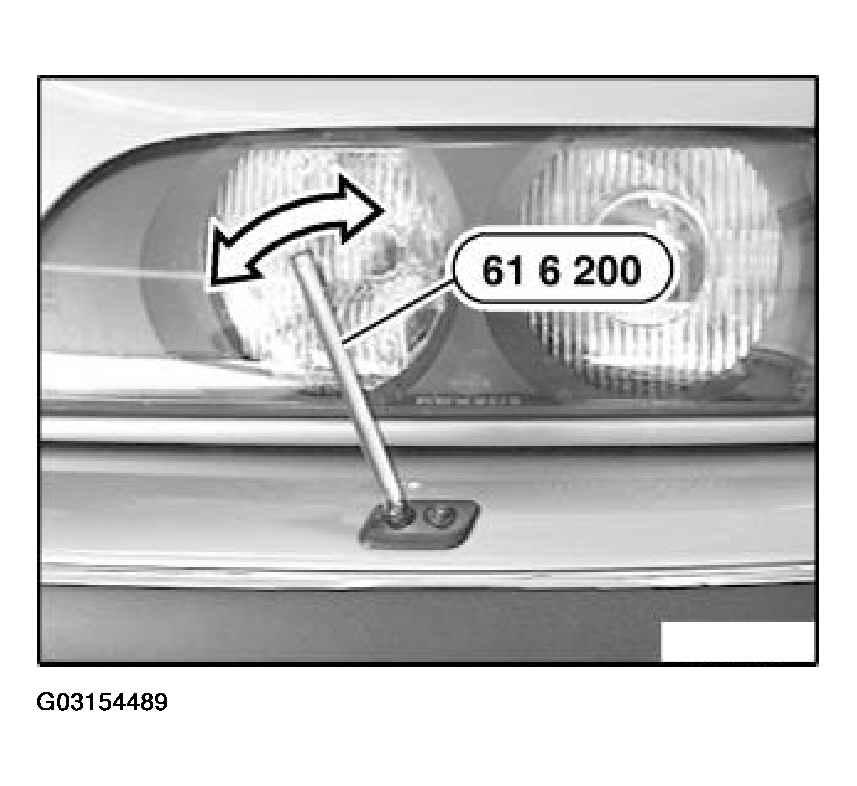

Fig 1: Adjusting Spray Nozzles For Headlight-Cleaning System (1 Of 2)

Courtesy of BMW OF NORTH AMERICA, INC.

Spray jet contact point approx. in center of high-beam headlamp.

Adjust spray jet contact point with special tool 61 6 200.

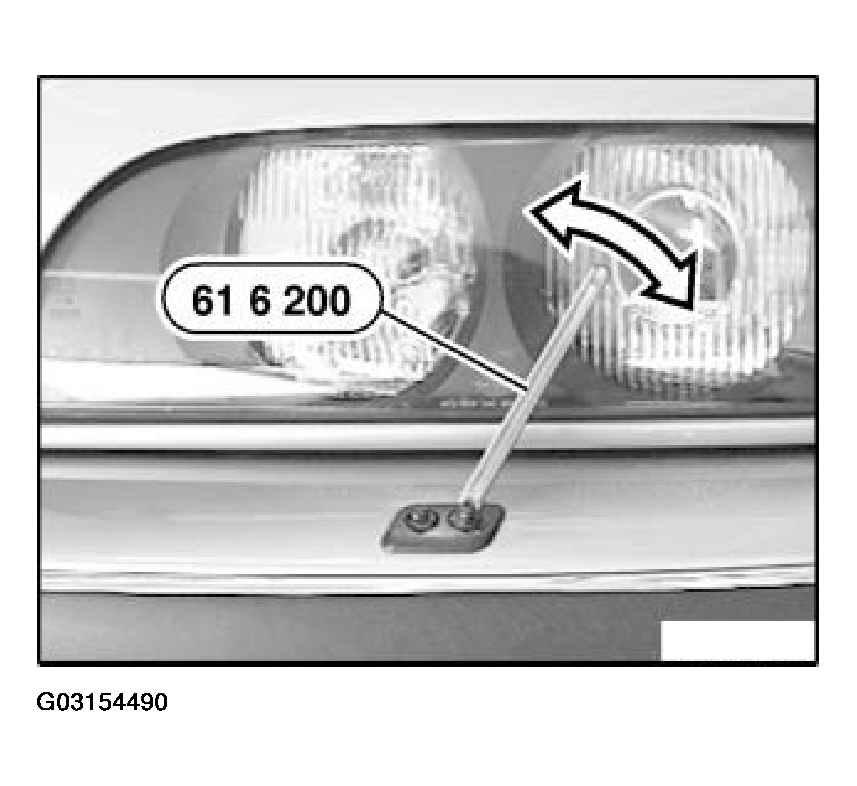

Fig 2: Adjusting Spray Nozzles For Headlight-Cleaning System (2 Of 2)

Courtesy of BMW OF NORTH AMERICA, INC.
