00 11 229 Oil change in manual transmission

NOTE: Gearbox must be at normal operating temperature.
Gear oil:

refer to OPERATING FLUIDS - AUTOMATIC TRANSMISSION .

Filling capacities:

Refer to FLUID CAPACITIES .

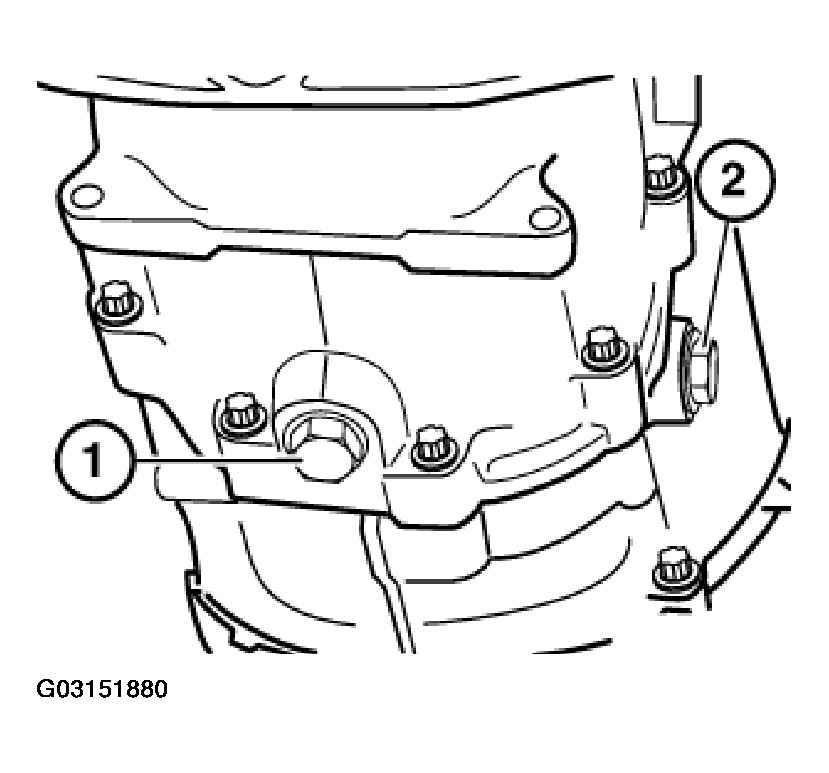

Fig 1: Locating Gear Oil Drain Plug And Filler Plug

G03151880

Courtesy of BMW OF NORTH AMERICA, INC.

Draining gear oil:

Release oil drain plug (1) and filler plug (2).
Clean oil drain plug (1) and screw in.

Tightening torque, see TORQUE SPECIFICATIONS .

Fill transmission with gear oil.

Pour in gear oil until overflowing.
Screw in filler plug (2).
Tightening torque, see TORQUE SPECIFICATIONS .
