51 13 280 Removing and installing trim strip on roof frame at left or right

First lift out trim strip (1) with folding leg (2) or special tool 00 9 321 at rear, unclip rest up to front and pull out of seal (3) toward rear.

Fig 1: Lifting Out Trim Strip With Folding Leg Or Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Replace defective clips (1) on roof outer skin if necessary.

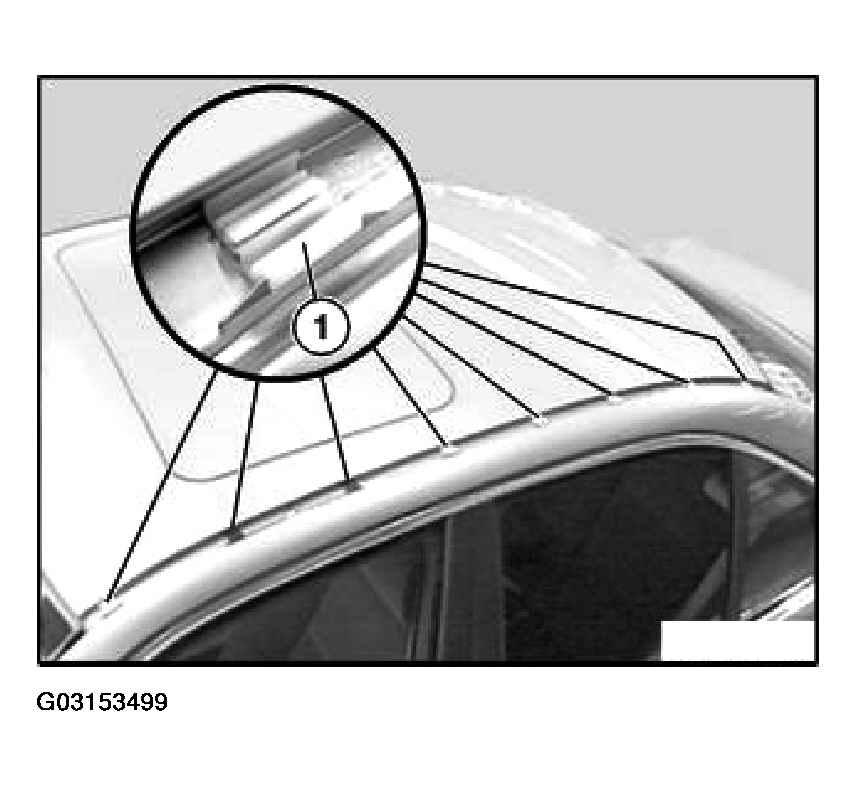

Fig 2: Replacing Defective Clips On Roof Outer Skin

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

1. Push trim strip (1) into seal (2) at front, clip in at rear flush with edge (3) and then clip in rest.

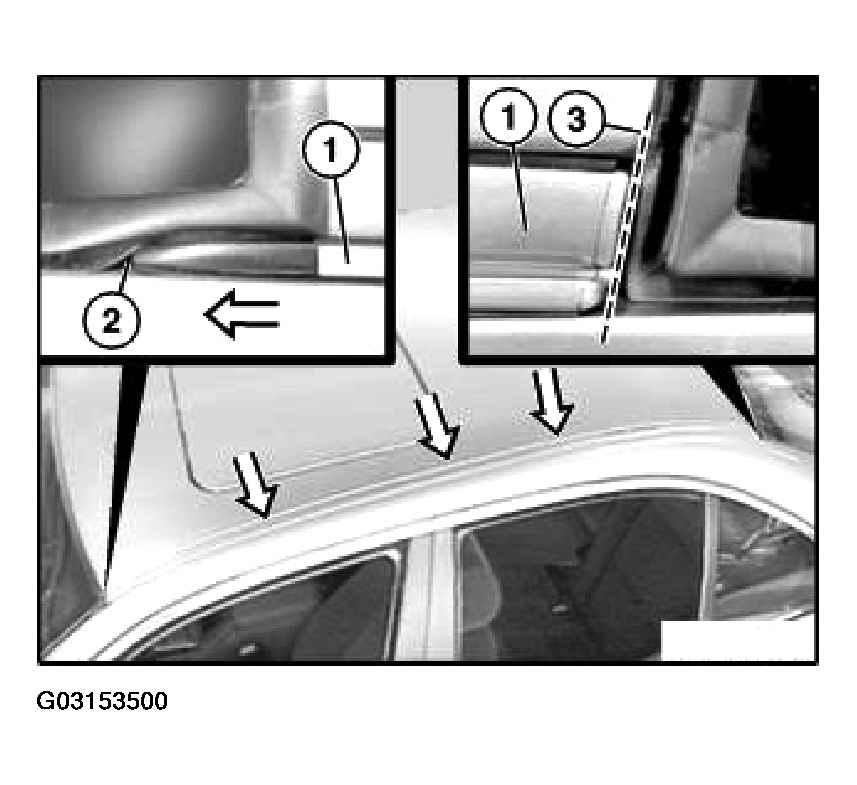

Fig 3: Pushing Trim Strip Into Seal At Front, Clip In At Rear Flush With Edge

Courtesy of BMW OF NORTH AMERICA, INC.
