51 49 005 Removing and installing/replacing trim for lower trunk lid

Open trunk lid.

Lift out expanding rivets (1).

Lift out finisher (2) and unfasten screw.

Pull trim downwards to unclip.

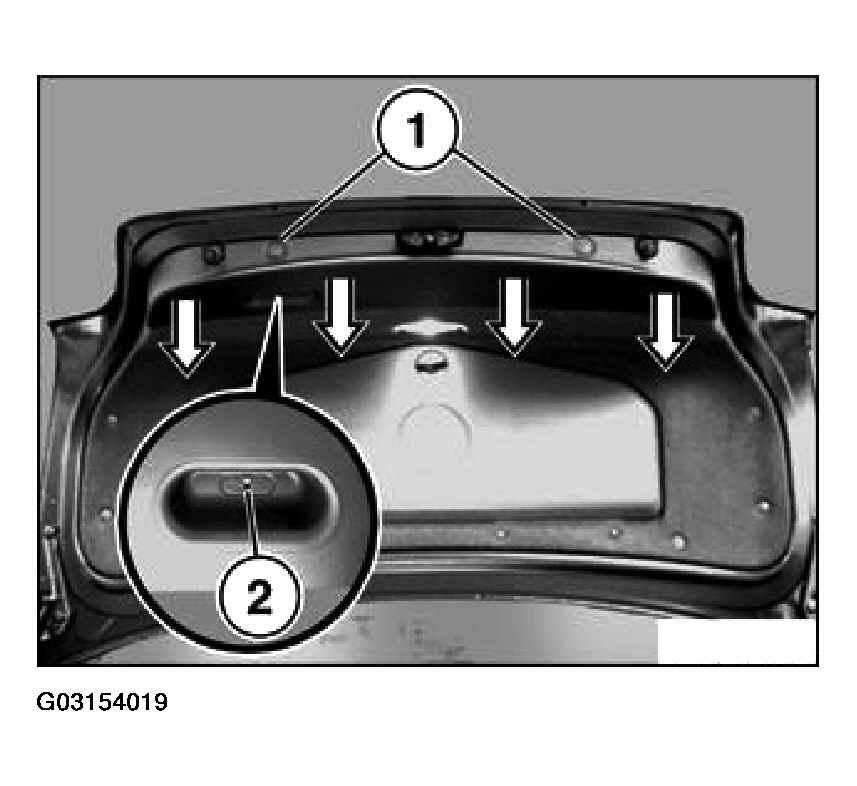

Fig 1: Lifting Out Finisher And Unfasten Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

1. If necessary, replace damaged clips.

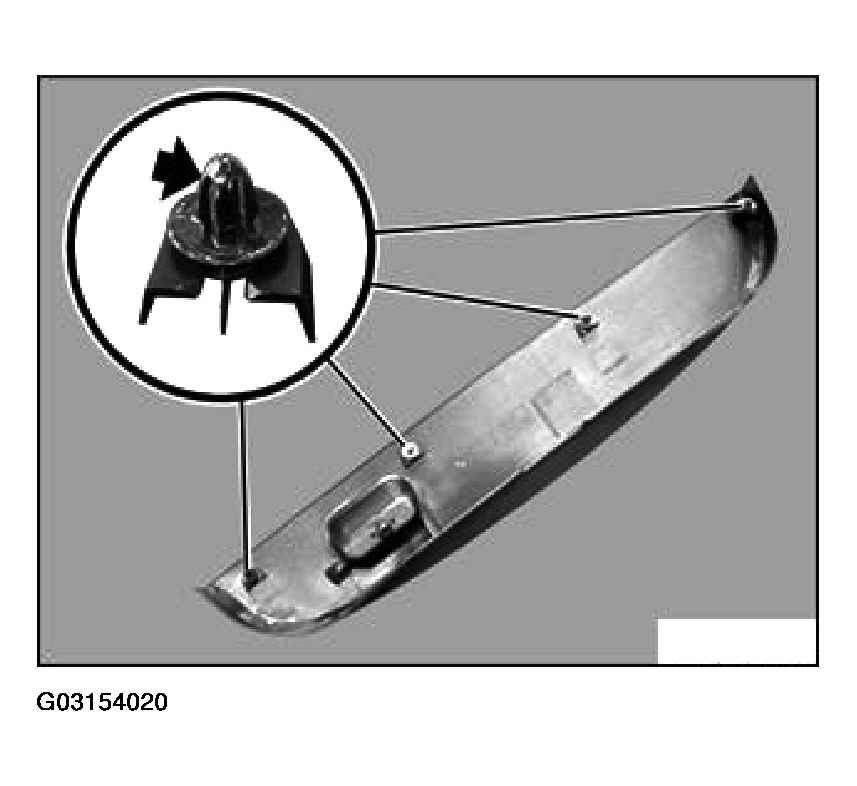

Fig 2: Replacing Damaged Clips

Courtesy of BMW OF NORTH AMERICA, INC.
