51 16 215 Removing and installing/replacing center armrest sliding unit

Remove fresh air grille in footwell. See NOZZLE AND OUTLETS

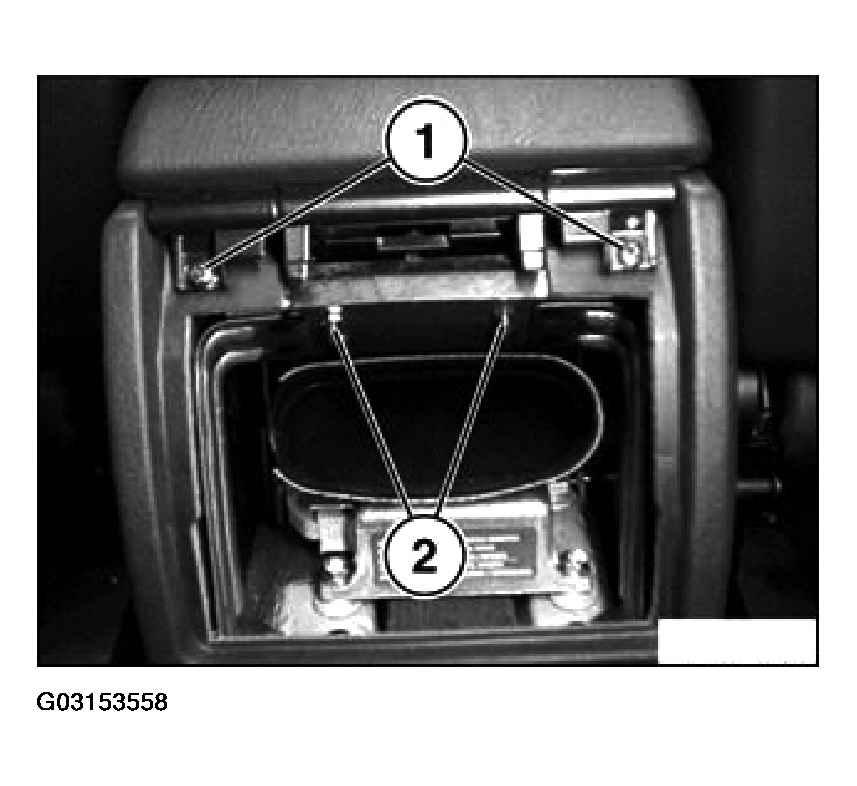

Release screws (1) and nuts (2).

Fig 1: Releasing Screws And Nuts
G03153558Courtesy of BMW OF NORTH AMERICA, INC.

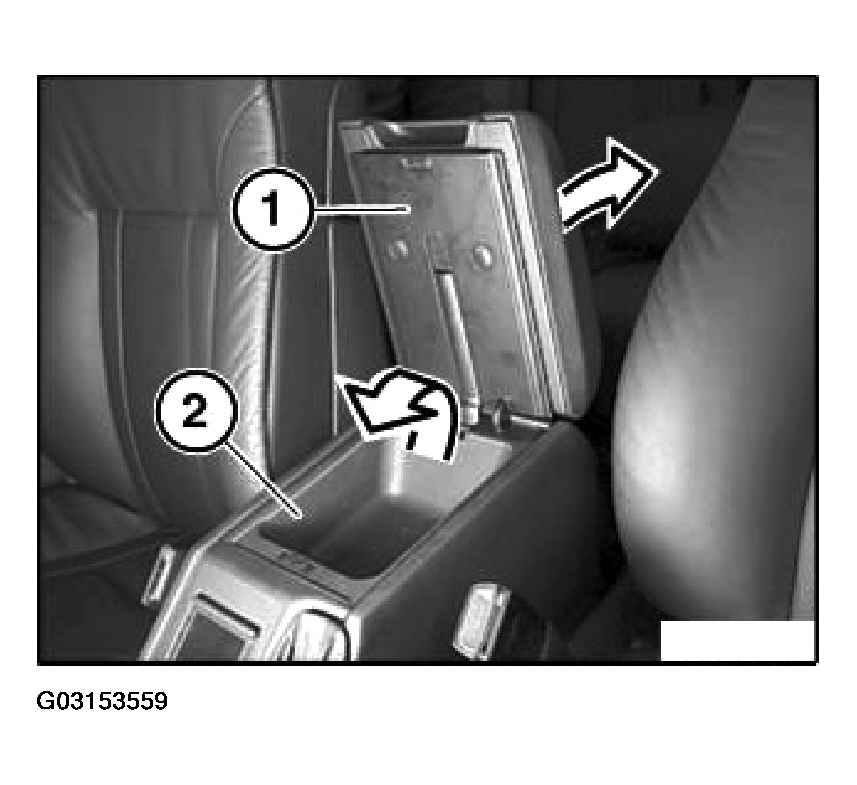

Open center armrest (1) and remove storage tray (2) at same time.

Fig 2: Opening Center Armrest And Removing Storage Tray
G03153559Courtesy of BMW OF NORTH AMERICA, INC.
