51 41 000 Removing and installing door trim panel, front left or right (Protection)

Unfasten screw (1) in air duct.

If necessary lift out footwell light (2) and remove connector.

Version with seat memory:

If necessary, lift out memory switch (3) and remove connector.

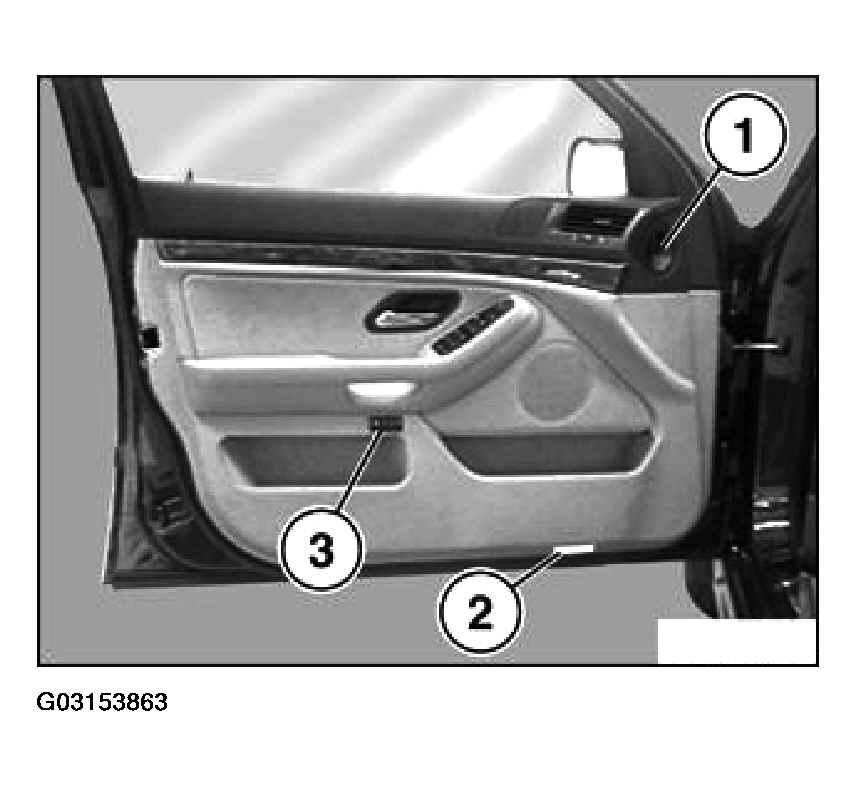

Fig 1: Removing Door Trim Panel
G03153863Courtesy of BMW OF NORTH AMERICA, INC.

Remove toggle switch (1) for side-window operation,

refer to 61 31 115 REPLACING ROCKER SWITCH FOR SIDE-WINDOW OPERATION .

Lift out seal cap (2) and unfasten screw.

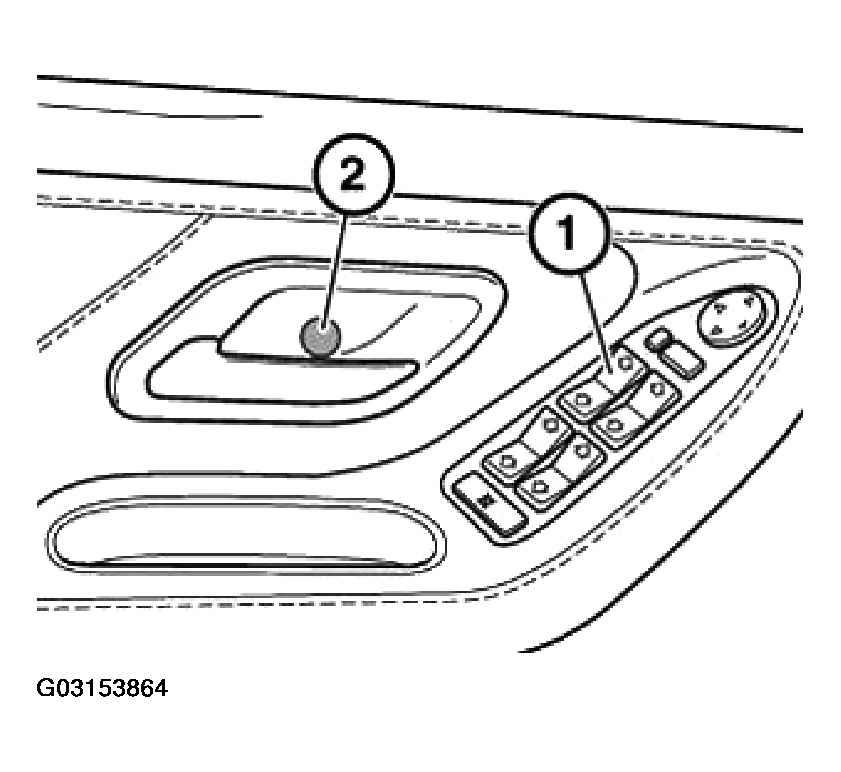

Fig 2: Removing Toggle Switch For Side-Window Operation
G03153864Courtesy of BMW OF NORTH AMERICA, INC.

Unclip door trim panel all around.

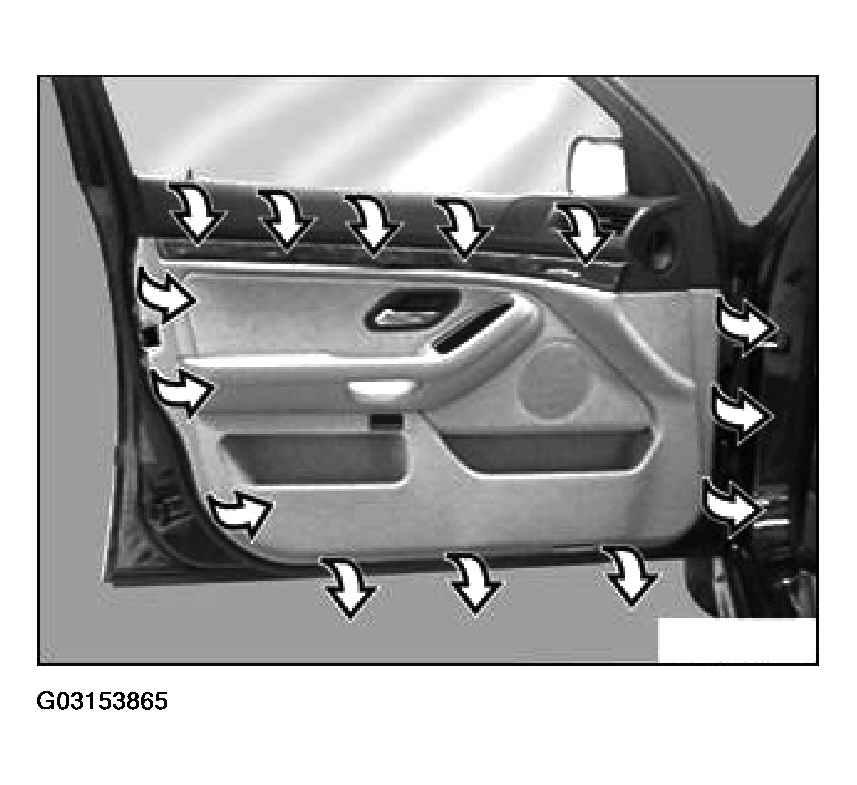

Fig 3: Unclipping Door Trim Panel All Around
G03153865Courtesy of BMW OF NORTH AMERICA, INC.

Pull door trim upwards out of door clip and slide door handle (1) through the door trim.

NOTE: Do not put down door trim panel. First detach wiring harness underneath protective mat.

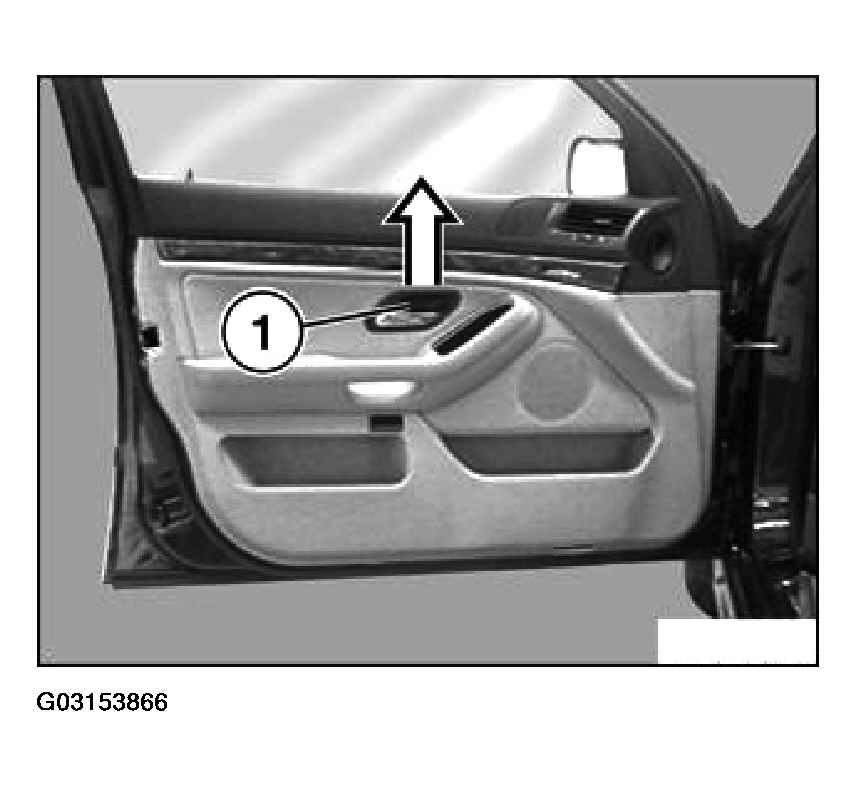

Fig 4: Pulling Door Trim Upwards Out Of Door Clip And Slide Door Handle
G03153866Courtesy of BMW OF NORTH AMERICA, INC.

Release knurled head screw (1) and open flap (2) of protective mat.

Detach wiring harness with soundproofing from door trim panel.

Installation

  1. Do not get wiring harness caught in penetrations (3).

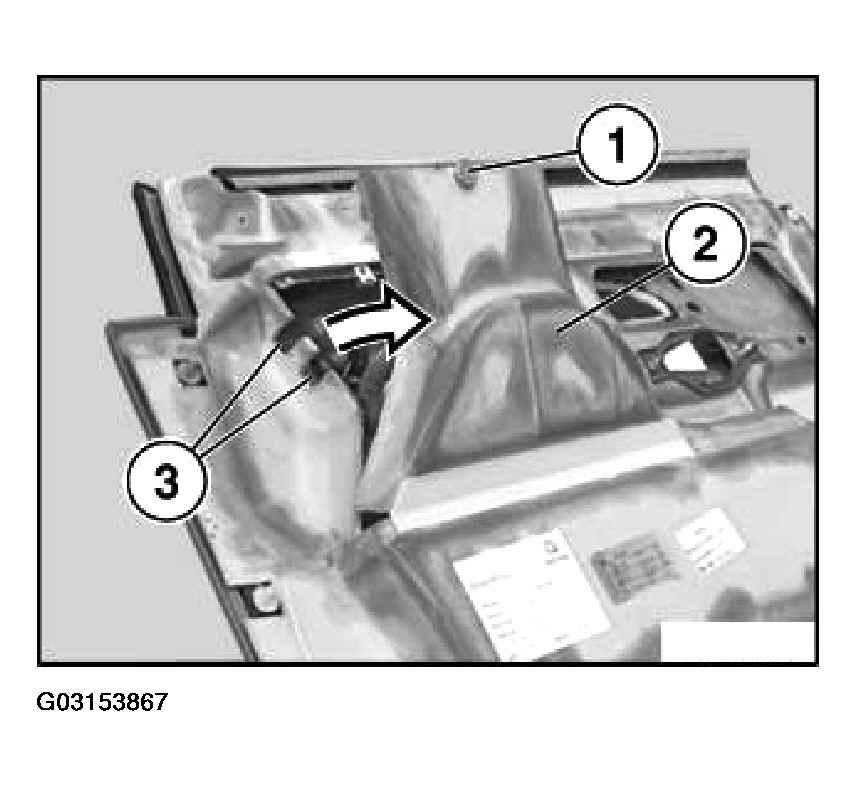

Fig 5: Releasing Knurled Head Screw And Open Flap Of Protective Mat
G03153867Courtesy of BMW OF NORTH AMERICA, INC.

Remove door clip.

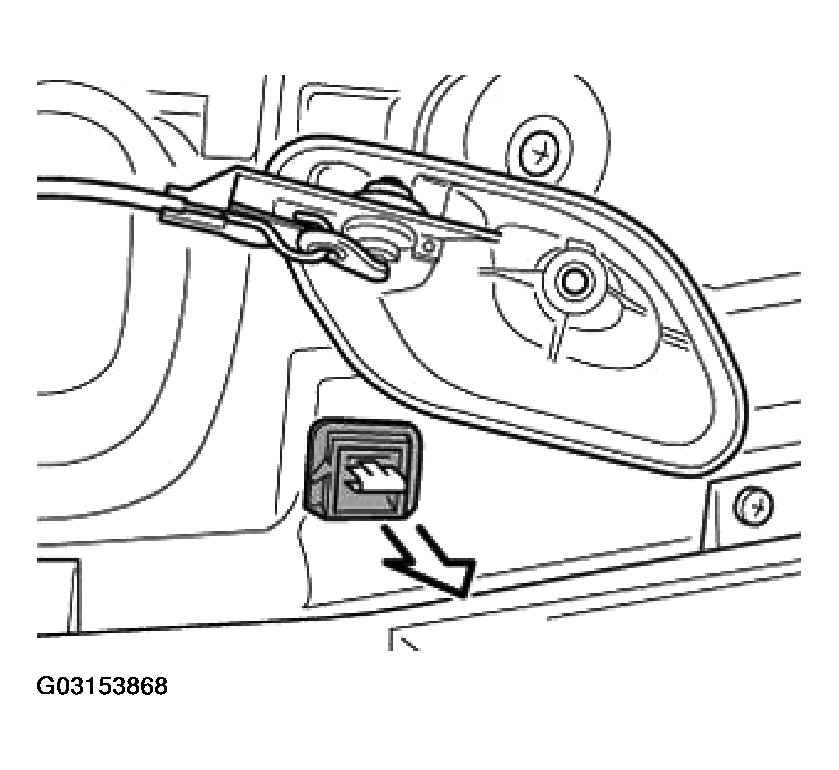

Fig 6: Removing Door Clip
G03153868Courtesy of BMW OF NORTH AMERICA, INC.

Installation

  1. Install door clip in bracket of door trim.

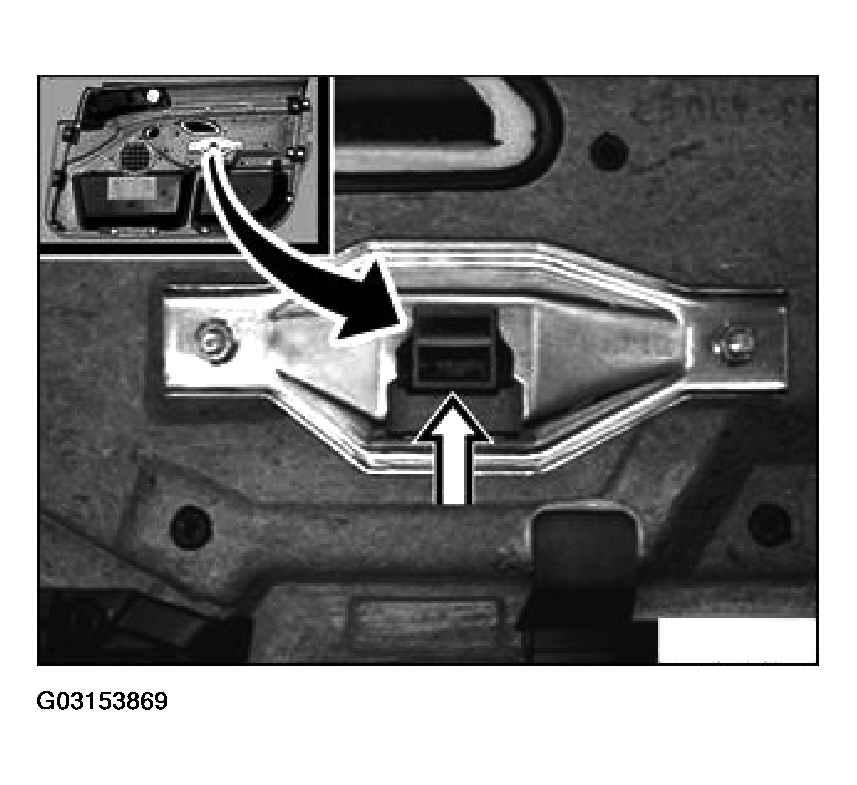

Fig 7: Installing Door Clip In Bracket Of Door Trim
G03153869Courtesy of BMW OF NORTH AMERICA, INC.

Installation

  1. Clips (1) are longer than the other clips.
  2. If necessary, replace damaged clips.

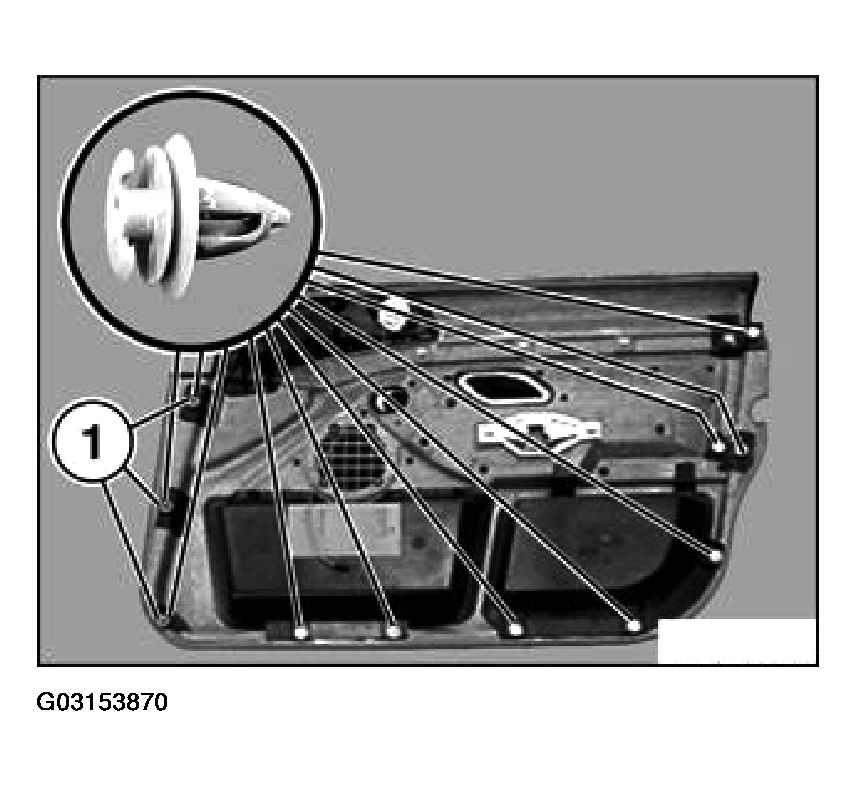

Fig 8: Replacing Damaged Clips
G03153870Courtesy of BMW OF NORTH AMERICA, INC.

Installation

After assembling the door trim panel proceed as follows:

  1. Open door window
  2. Close door
  3. Lock with vehicle key
  4. Check whether the linkage on the retaining knob can move freely.
  5. If necessary, dismantle door trim panels and align the linkage
  6. If necessary, mount door trim panel
  7. Repeat steps 1 to 4.
