51 24 130 Removing and installing/replacing locking bracket for trunk lid lock

Remove finisher strip from top tail panel, refer to 51 46 050 REMOVING AND INSTALLING/REPLACING FINISHER FOR TOP OF REAR APRON.

Unfasten screws and remove locking bracket (lower section of trunk lid lock).

Installation

1. Adjust lower section of trunk lid (operation described in section on "adjusting trunk lid"), refer to 51 49 000 Removing and installing/replacing trim for trunk lid (top) .

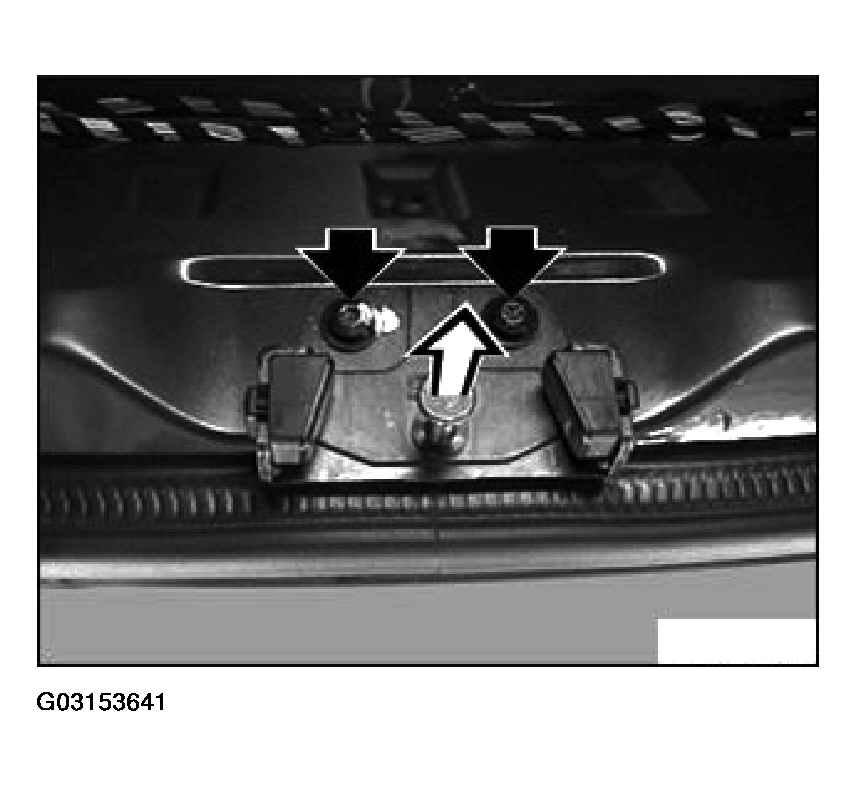

Fig 1: Adjusting Lower Section Of Trunk Lid

Courtesy of BMW OF NORTH AMERICA, INC.
