51 34... Removing and installing/replacing cover on fixed door window of rear door, inside left or right

Remove rear door trim,

refer to 51 42 000 REMOVING AND INSTALLING REAR LEFT OR RIGHT DOOR TRIM PANEL .

Remove window cavity trim from inside of rear door,

refer to 51 22 330 REMOVING AND INSTALLING/REPLACING WINDOW CAVITY COVER STRIP ON INSIDE REAR DOOR .

Open rear door window.

Lever out cover (1) at bottom/rear with special tool 00 9 321 (fishbone) and remove towards front.

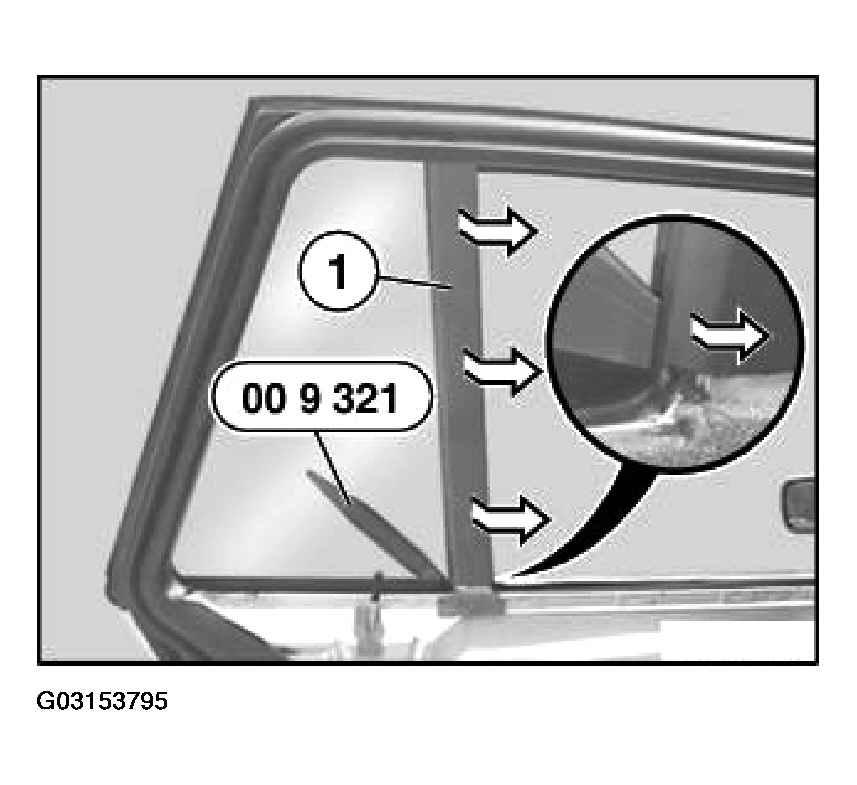

Fig 1: Levering Out Cover At Bottom/Rear With Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

1. First position cover (1) on side (A), press upwards (B) against cover (2) on door window frame and then snap into place at rear (C).

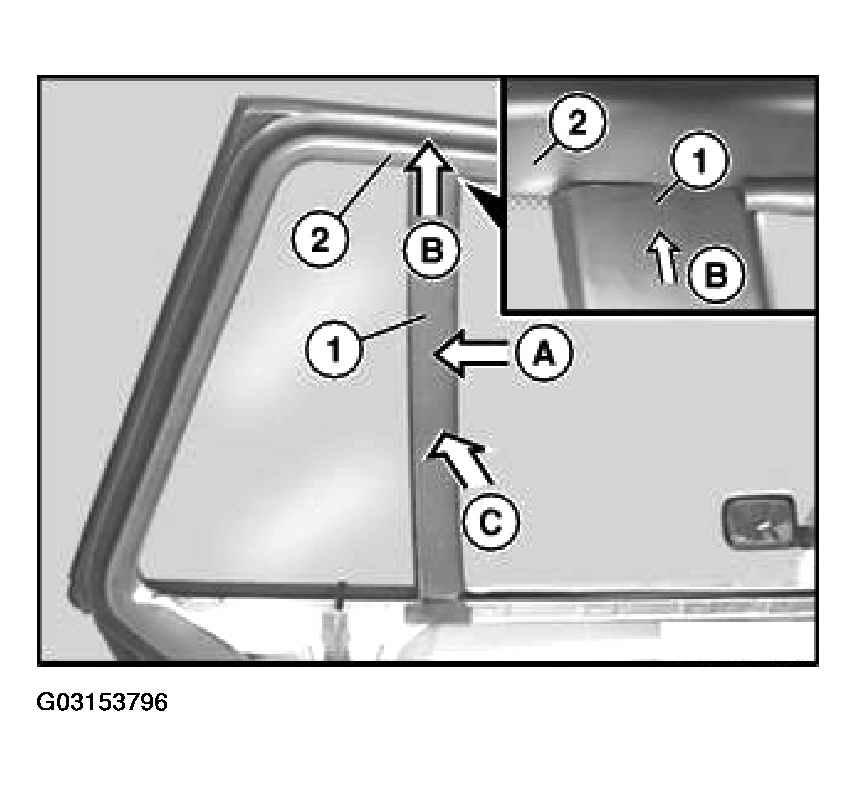

Fig 2: Identifying First Position Of Cover On Side

Courtesy of BMW OF NORTH AMERICA, INC.
