51 42... Removing and installing/replacing protective mat in rear door, left or right (Protection)

Remove rear left or right door window glass,

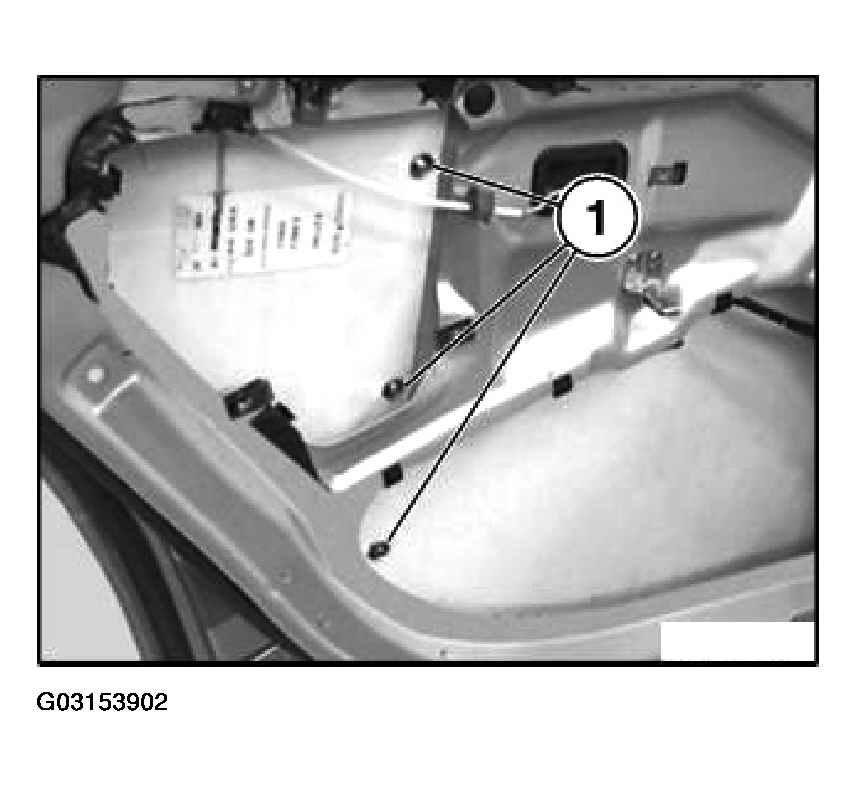

Unscrew bolts (1).

Fig 1: Unscrewing Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

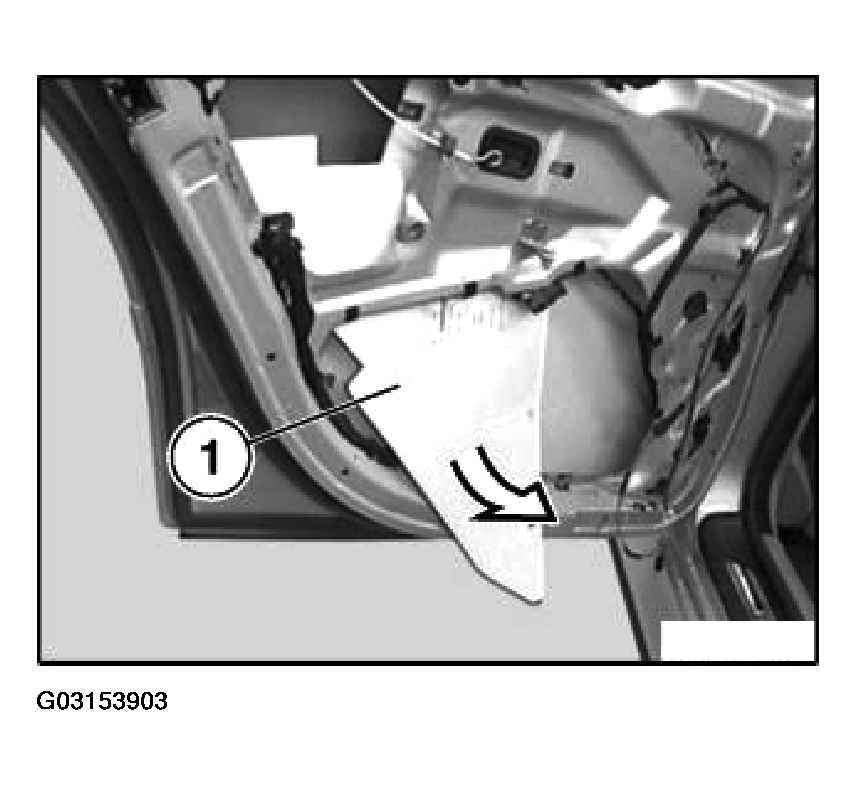

Pull out rear section (1) of protective mat towards rear.

Fig 2: Pulling Out Rear Section Of Protective Mat Towards Rear

Courtesy of BMW OF NORTH AMERICA, INC.

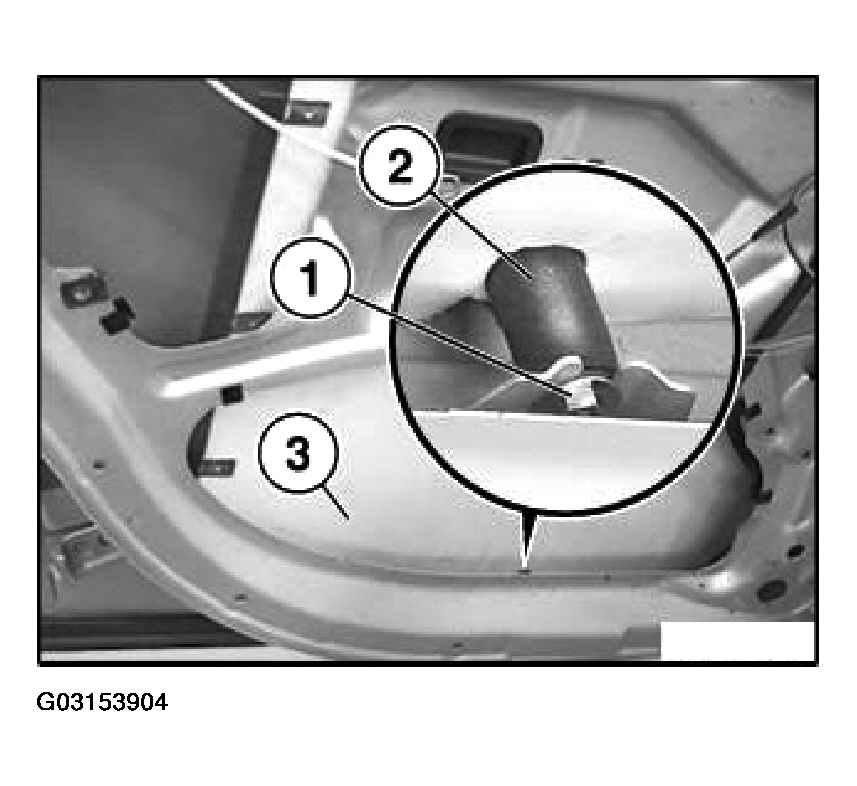

Release nut (1) on round rubber mount (2) of front section (3) of protective mat.

Fig 3: Releasing Nut On Round Rubber Mount Of Front Section Of Protective Mat

Courtesy of BMW OF NORTH AMERICA, INC.

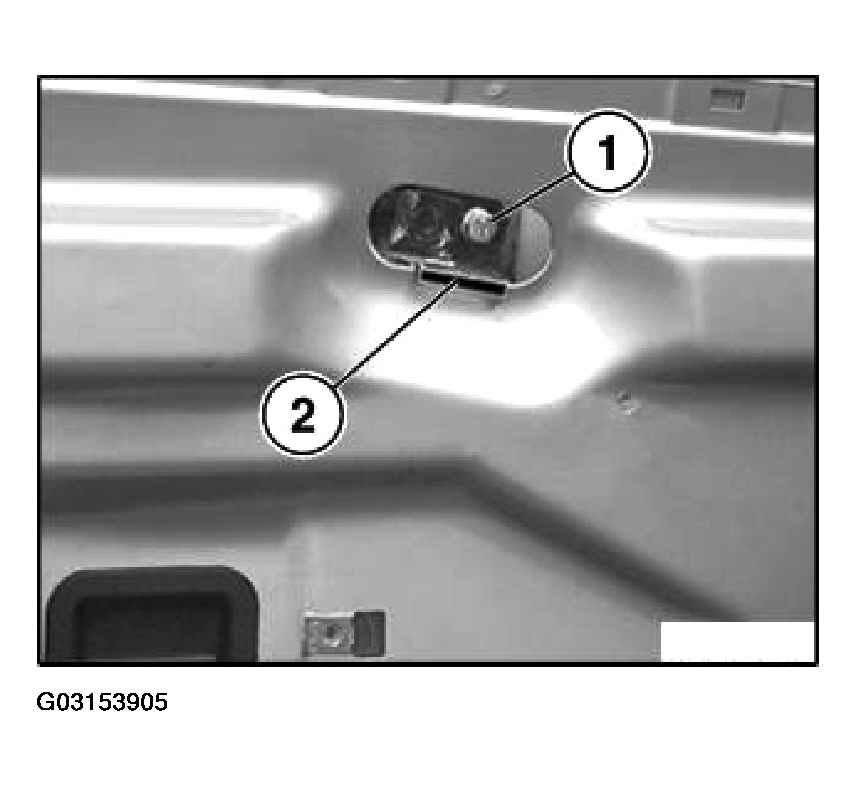

Unscrew bolt (1).

Remove support (2) through door aperture.

Fig 4: Removing Support Through Door Aperture

Courtesy of BMW OF NORTH AMERICA, INC.

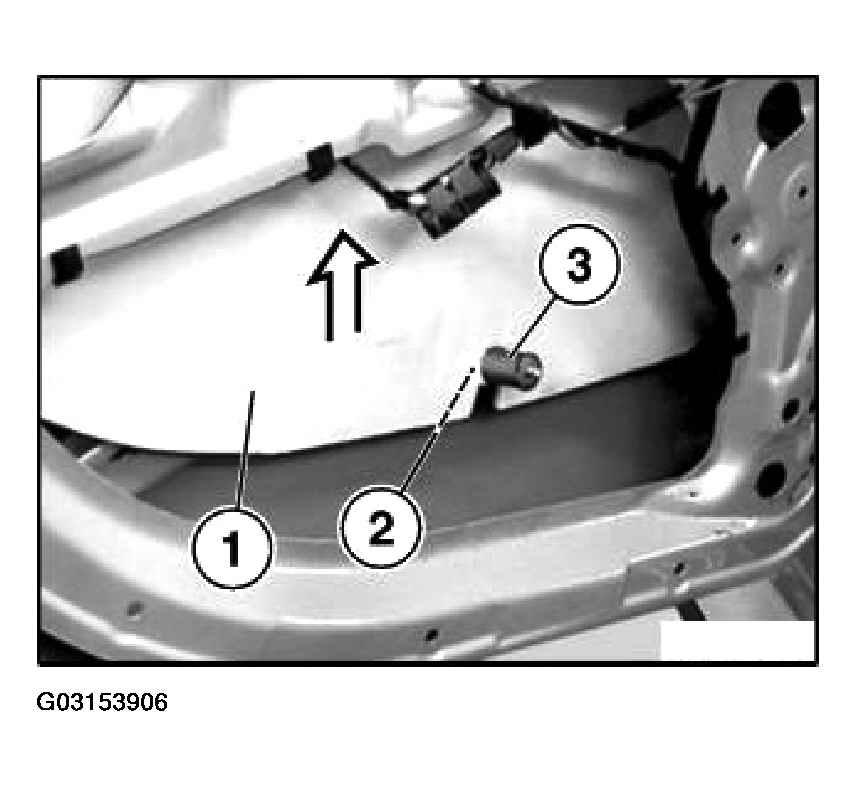

Push front section (1) of protective mat upwards a little.

Release nut (2) and remove round rubber mount (3).

Fig 5: Releasing Nut And Removing Round Rubber Mount

Courtesy of BMW OF NORTH AMERICA, INC.

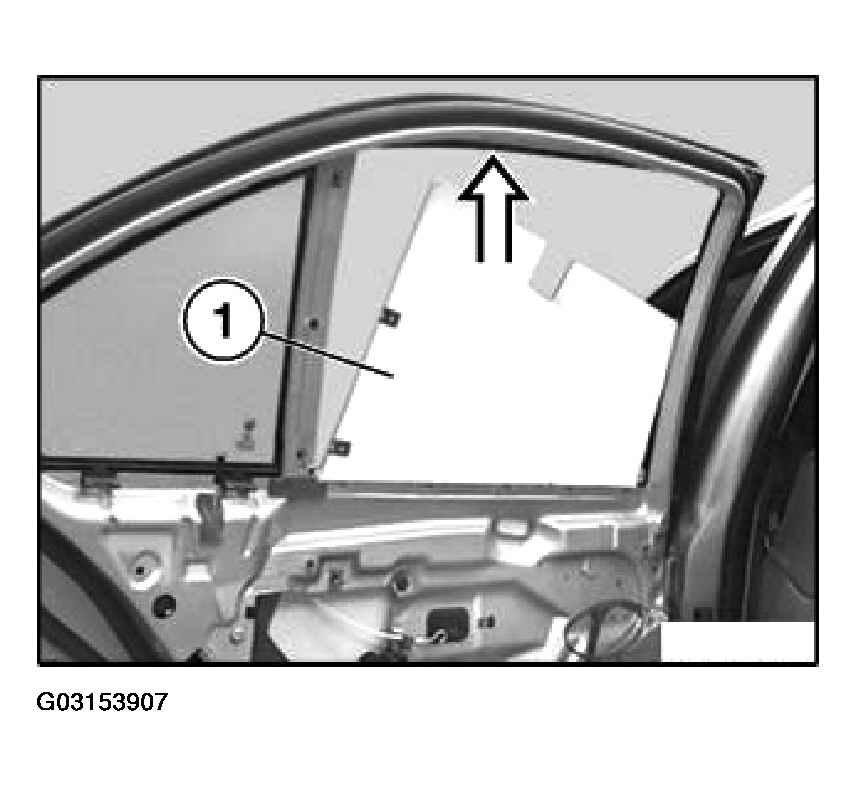

Pull out front section (1) of protective mat through window cavity.

Fig 6: Pulling Out Front Section Of Protective Mat Through Window Cavity

Courtesy of BMW OF NORTH AMERICA, INC.
