26 1 030 Fixture

SPECIAL TOOL DESCRIPTION

Note: For checking and adjusting diffraction angle of propeller shaft
Series: E12, E21, E23, E24, E28, E30, E31, E32, E34, E36, E38, E39
Order number: 26 1 030
  Fixture
Consisting of:
1 = 26 1 031 Spirit level

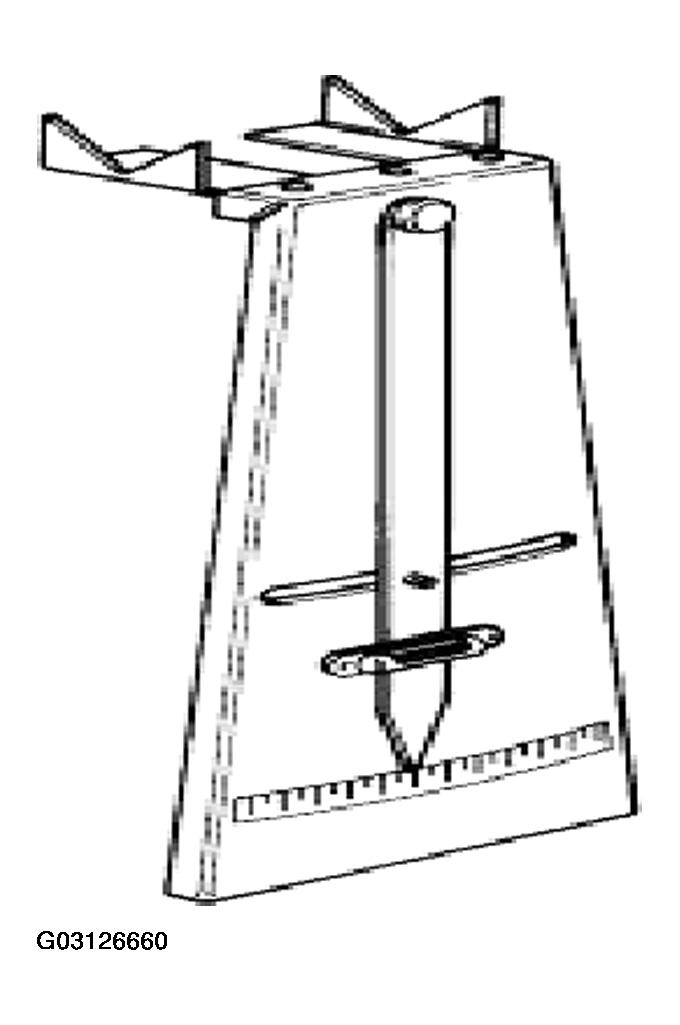

Fig 1: Identifying Fixture (26 1 030)
G03126660Courtesy of BMW OF NORTH AMERICA, INC.
