12 41 020 Removing And Installing/Replacing Starter (M60, M62): Notes

Switch off ignition.

Follow instructions for disconnecting and connecting battery. See 12 00 Instructions For Disconnecting And Connecting Battery .

Disconnect battery negative lead from battery.

Unscrew and remove splash guard.

Cars without primary catalytic converters only (M60/M62):

Unscrew screw.

Press cable guide to one side.

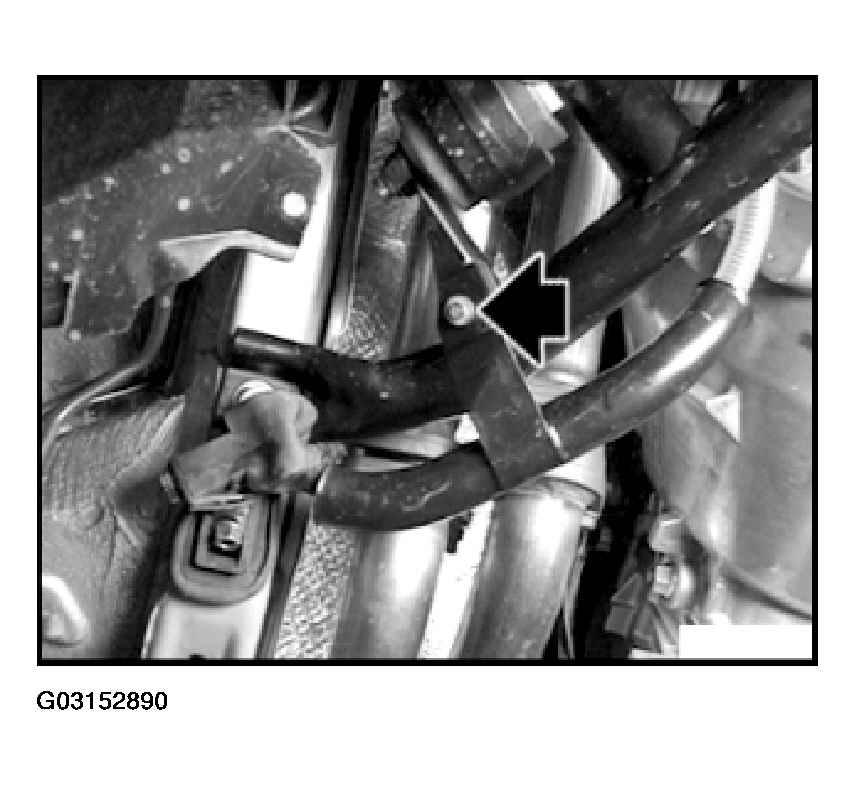

Fig 1: Identifying Cable Guide Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws.

Remove shield plate.

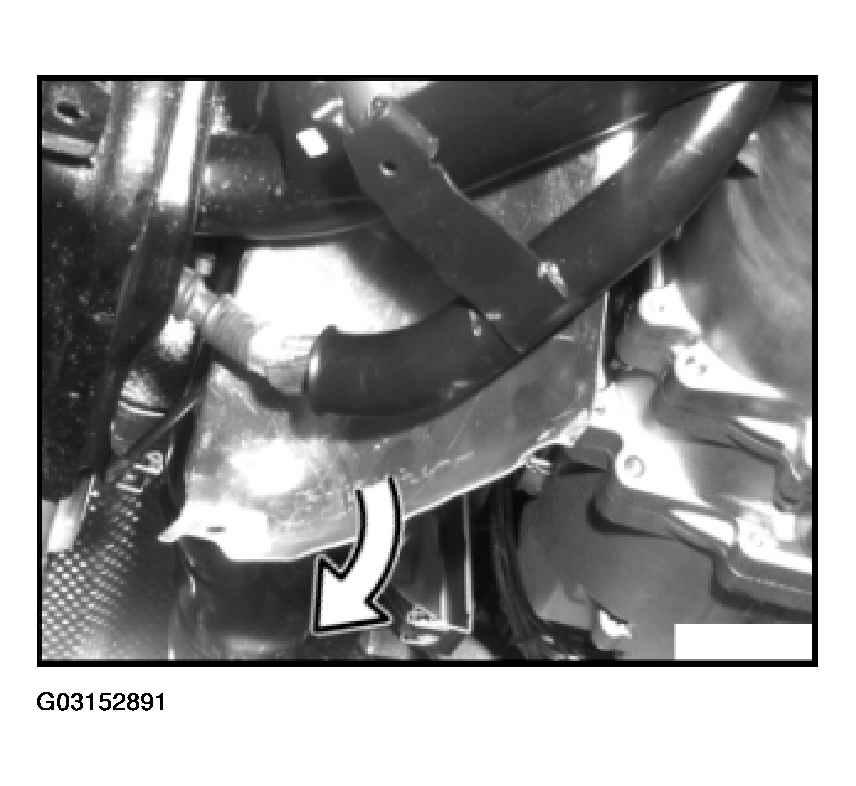

Fig 2: Removing Shield Plate

Courtesy of BMW OF NORTH AMERICA, INC.

Cars with primary catalytic converters only (M62):

Unclip battery positive lead (1).

Unfasten screws (2).

Remove shield plate (3).

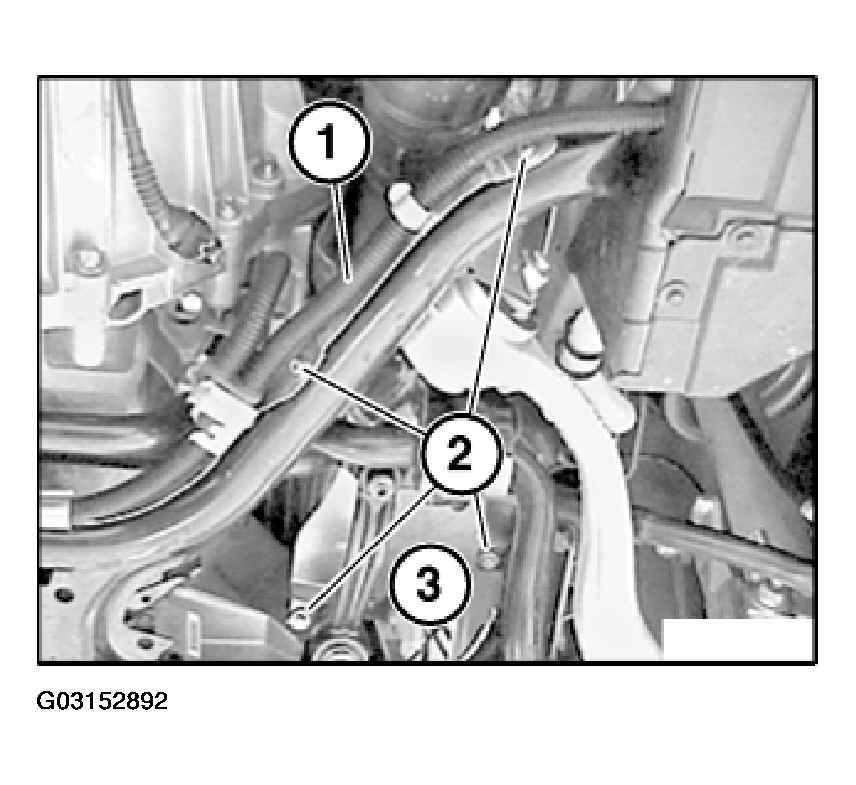

Fig 3: Removing Shield Plate (Cars With Primary Catalytic Converters Only - M62)

Courtesy of BMW OF NORTH AMERICA, INC.

Remove plug connection (1) of right oxygen sensor from retaining clip (2).

Remove retaining clip (2) from transmission.

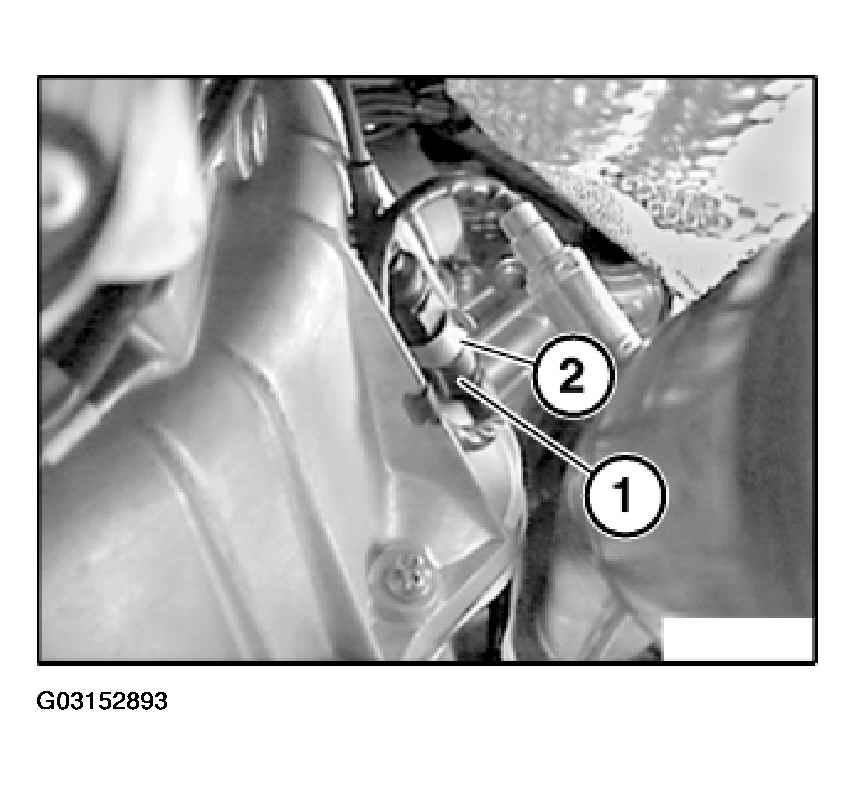

Fig 4: Removing Retaining Clip From Transmission

Courtesy of BMW OF NORTH AMERICA, INC.

All cars (M60/M62):

Unfasten connections on starter motor.

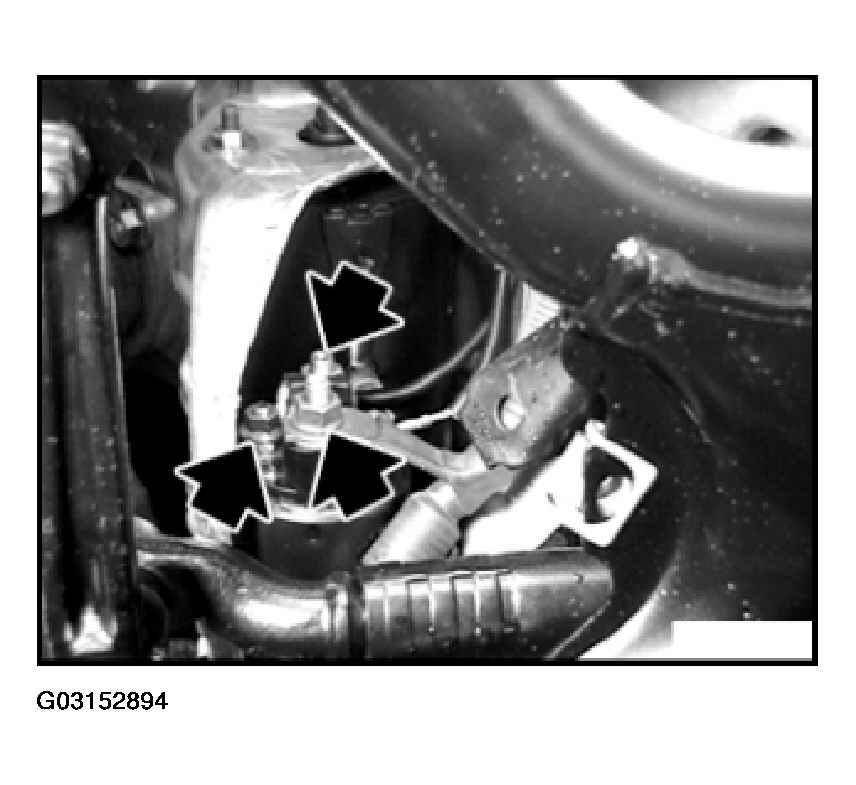

Fig 5: Identifying Connections On Starter Motor

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws.

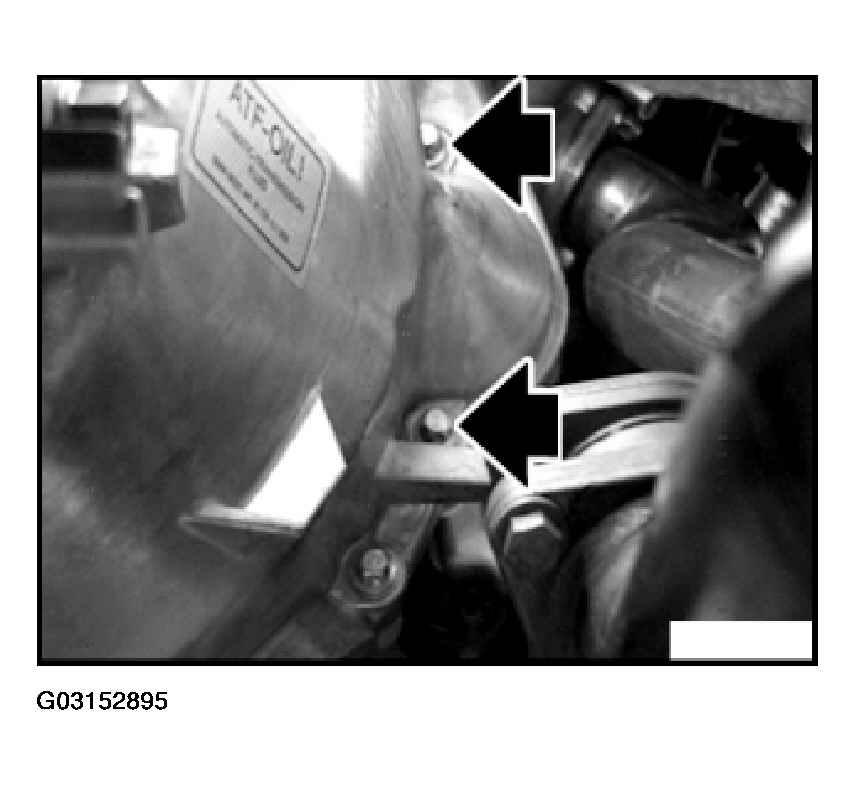

Fig 6: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Remove starter motor from transmission mount.

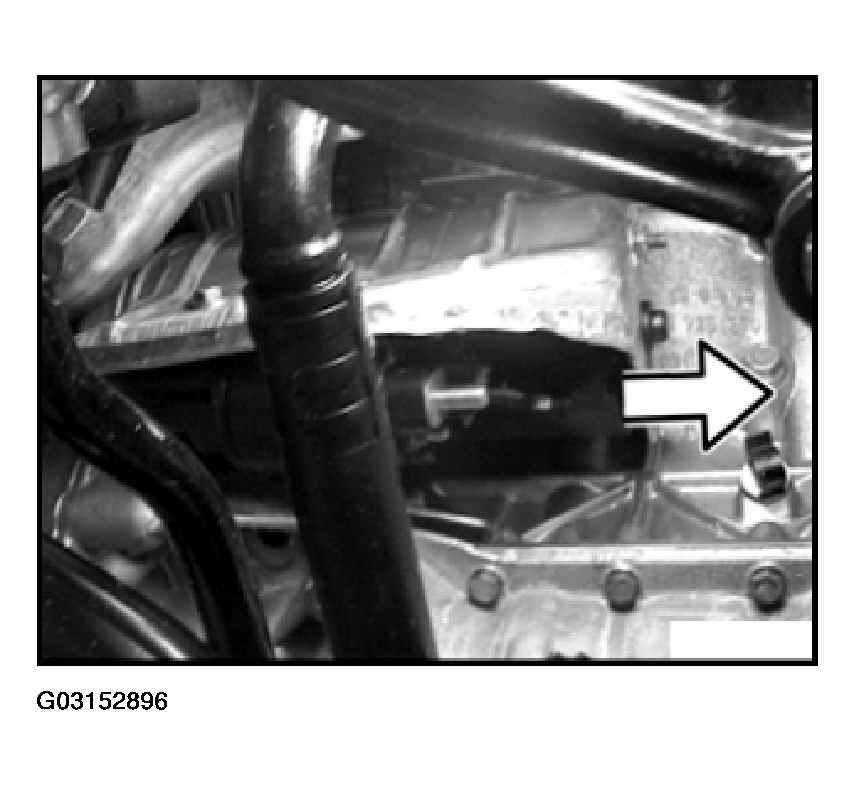

Fig 7: Removing Starter Motor From Transmission Mount

Courtesy of BMW OF NORTH AMERICA, INC.

Remove starter motor.
