Battery in luggage compartment under spare wheel: Notes

Remove spare wheel.

Release screws.

CAUTION: Do not kink air pipes.

Set air supply system (1) to one side.

Follow instructions for disconnecting and connecting battery. See 12 00 Instructions For Disconnecting And Connecting Battery .

Disconnect battery negative lead.

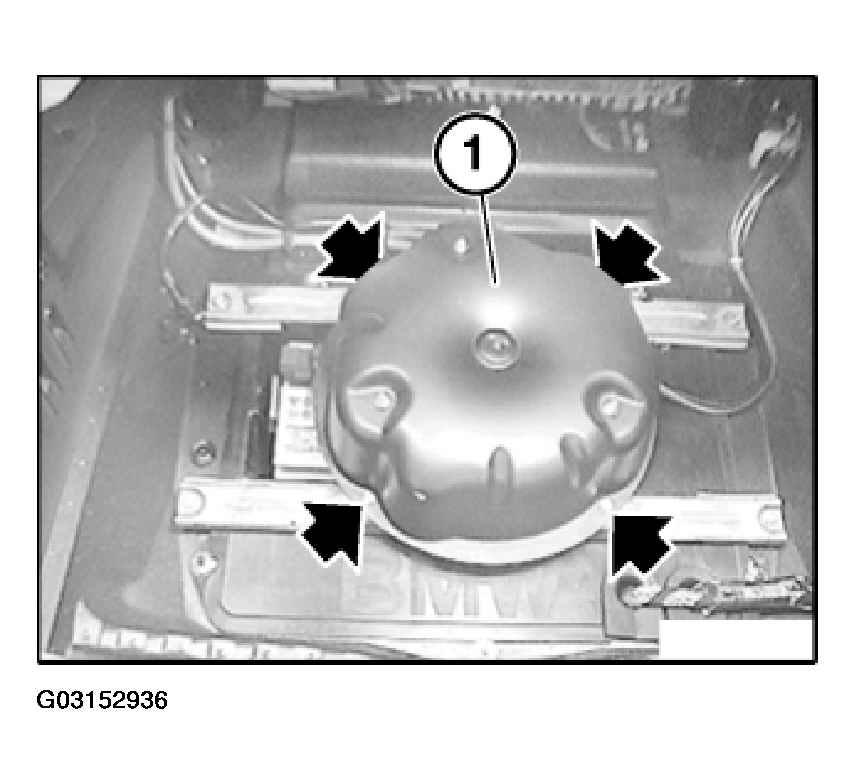

Fig 1: Installing Luggage Compartment Battery Under Spare Wheel Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect supply cable (1) for vehicle electrical system.
