12 51 001 Replacing wiring harness section for engine (M60, M62): Notes

Instructions for disconnecting and connecting battery. See 12 00 Instructions For Disconnecting And Connecting Battery .

Switch off ignition.

Remove battery negative line.

Remove complete splash guard.

Version 1:

(acoustic cover screwed down)

Remove seal caps (1) and unfasten nuts (2).

Remove acoustic cover.

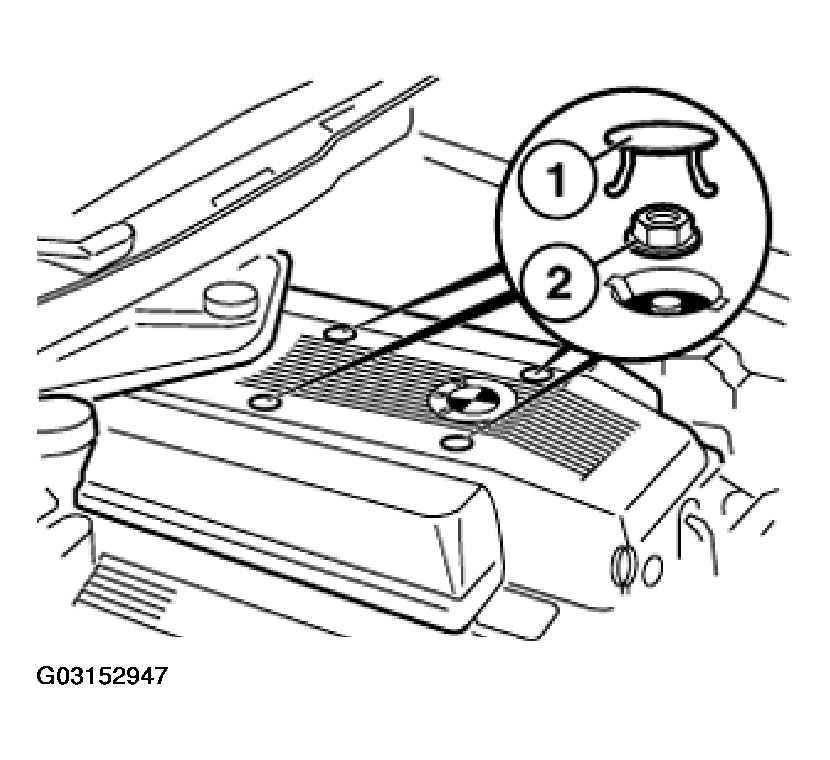

Fig 1: Removing Seal Caps And Unfasten Nuts From Acoustic Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Version 2:

(acoustic cover with press-stud fastener)

Press press-stud fasteners (1...4) in succession and at same time raise acoustic cover slightly.

Remove acoustic cover once all four press-stud fasteners have been unlocked.
