6-Cylinder Diagnosis: M52 - 2.8L (11/95-8/96)

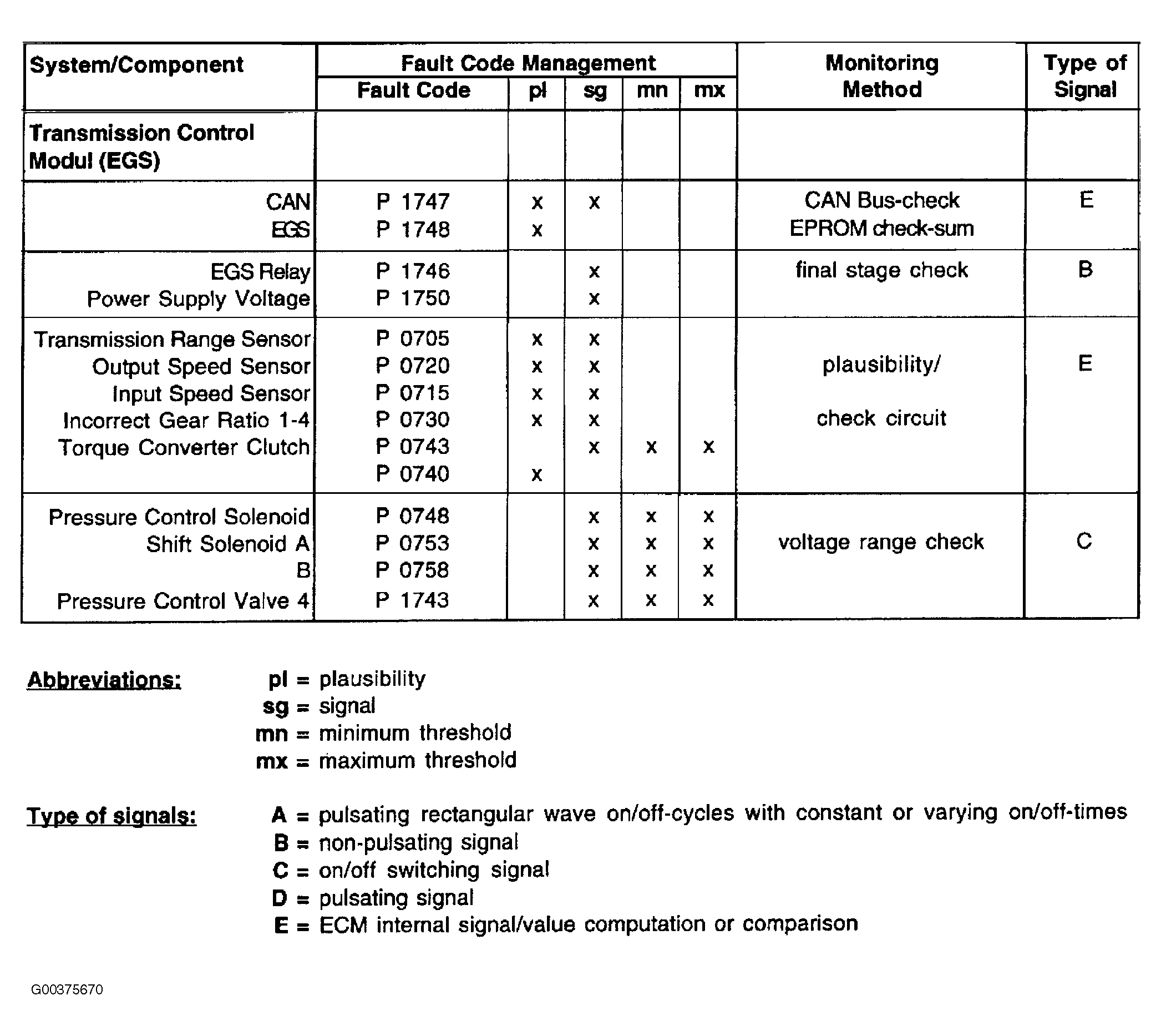

Fig 1: 6-Cylinder Diagnosis: M52 - 2.8L (11/95-8/96)

G00375670

Courtesy of BMW OF NORTH AMERICA, INC.
