Rear Camber

Rear Camber is adjusted by rotating an eccentric bolt located at the outer end of the rear lower lateral link. No Special tools are required to make the Camber adjustment.

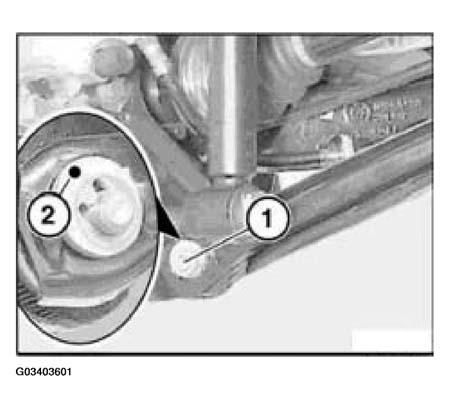

Fig 1: Identifying Rear Camber Bolt (1 Of 2)

Courtesy of BMW OF NORTH AMERICA, INC.

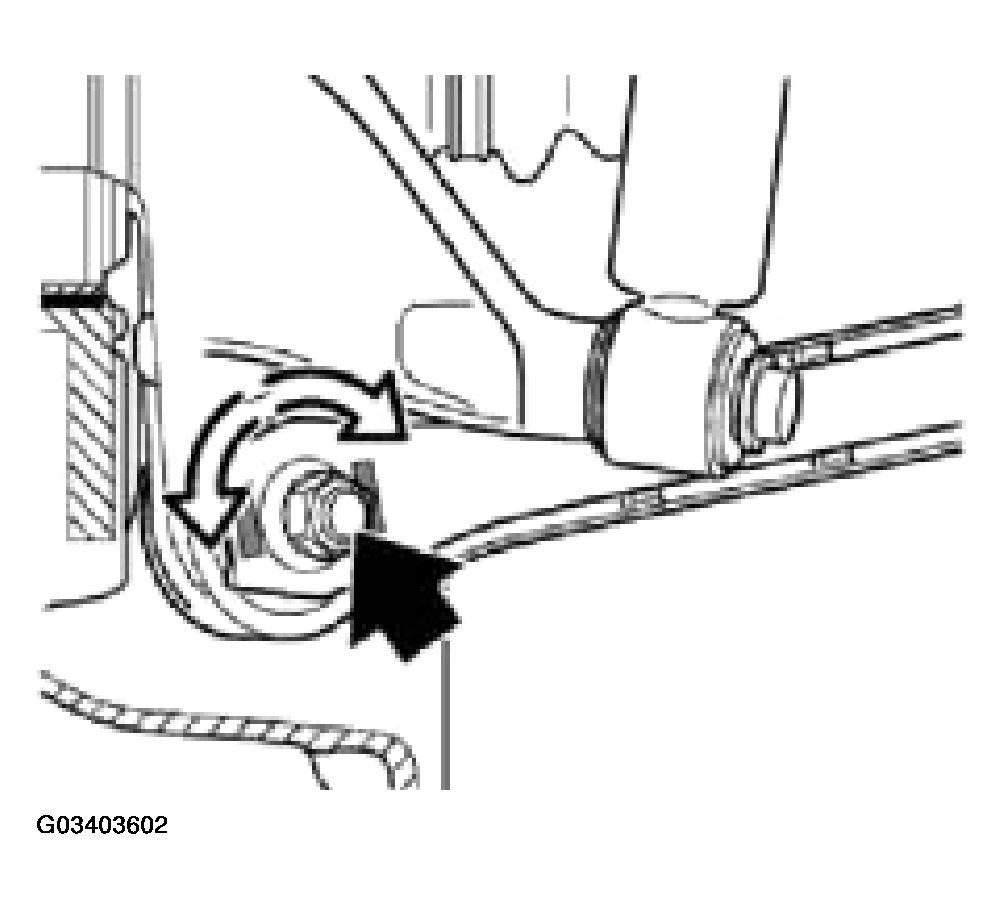

Fig 2: Identifying Rear Camber Bolt (2 Of 2)

Courtesy of BMW OF NORTH AMERICA, INC.
