E65/E66 Rear Suspension

The rear axle on the E65/E66 is also the integral type. It is very similar to the E38/E39 rear suspension. The rear axle carrier (subframe) is made from tubular aluminum. The E65/E66 is also available with optional systems such as:

• EDC-K Electronic Damping Control (Continuous)
• ARS Active Roll Stabilization
• Air Suspension System

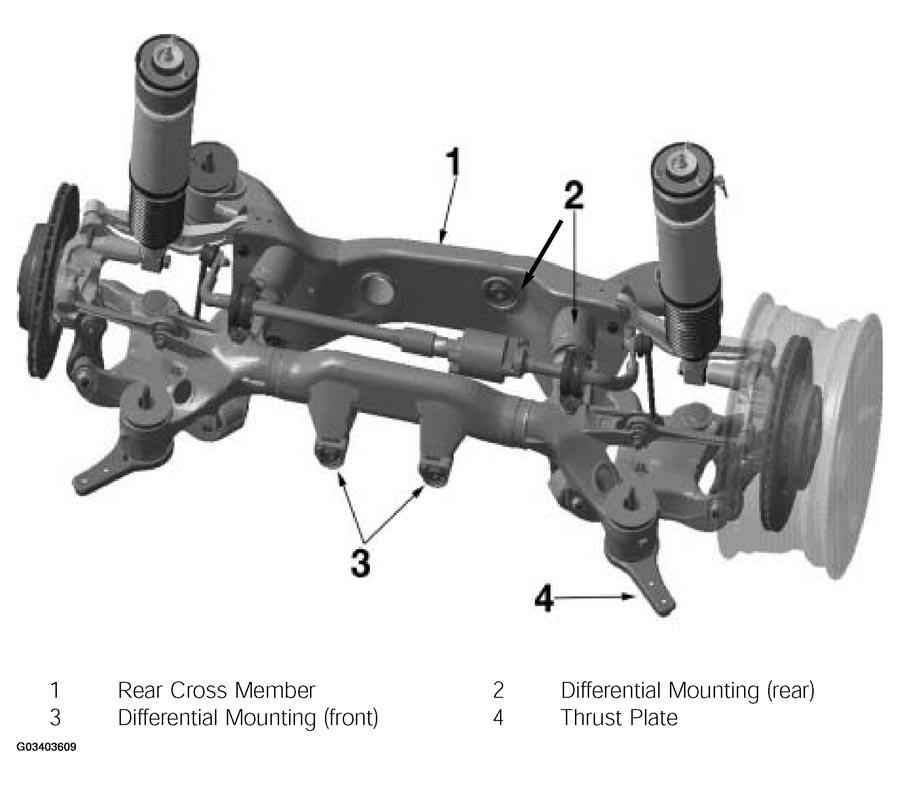

  Fig 1: Identifying E65/E66 Rear Suspension

  Courtesy of BMW OF NORTH AMERICA, INC.

The Rear Toe and Rear Camber are adjusted by means of eccentric bolts. No special tools are needed to make these adjustments.
