Rear Toe

Toe is adjusted by moving the forward central arm bushing mount with a special tool. The tool part number varies between models.

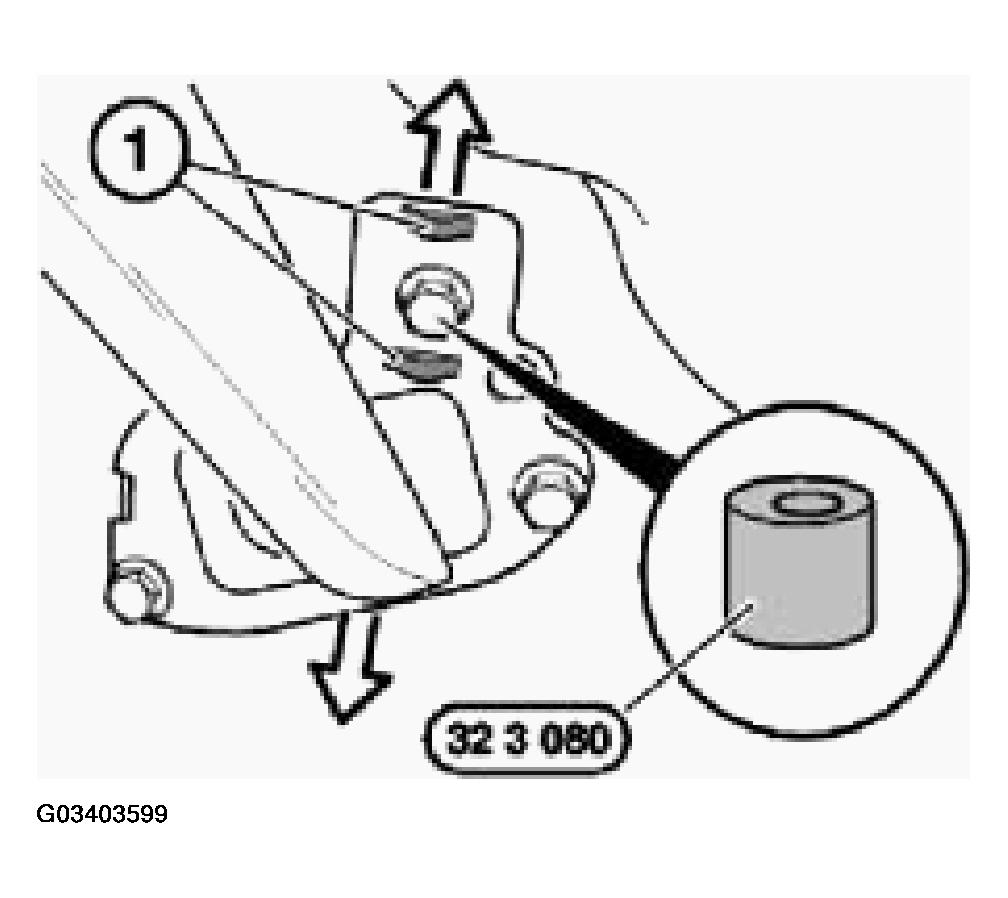

Fig 1: Identifying Rear Toe Adjustment Bolt Tool # 90 88 6 323 080 For E36

Courtesy of BMW OF NORTH AMERICA, INC.

Tool # 90 88 6 323 080  for E36

Not Used for Z3 and 318ti

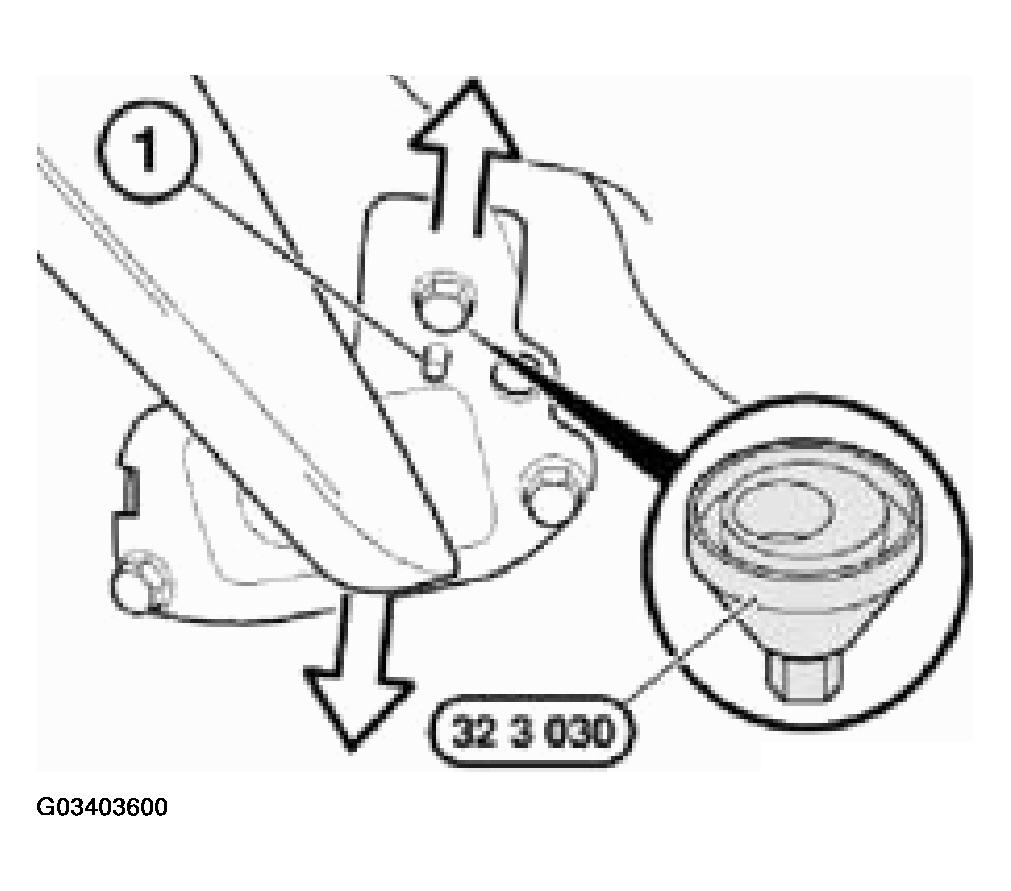

Fig 2: Identifying Rear Toe Adjustment Bolt Tool # 90 88 323 030 For E46 And E85

Courtesy of BMW OF NORTH AMERICA, INC.

Tool # 90 88 6 323 030  for E46 and E85
