Arrangement Of Components

  1. Adjusting Bolt.
  2. Lock Nut.
  3. Plug.
  4. Replace Sealing Ring.
  5. Replace "O" ring.
  6. Dowel Sleeve.
  7. Compression Spring. (Ensure cylindrical part of compression spring faces chain tensioning piston.) See Fig 1 .
  8. Chain Tensioning Piston.

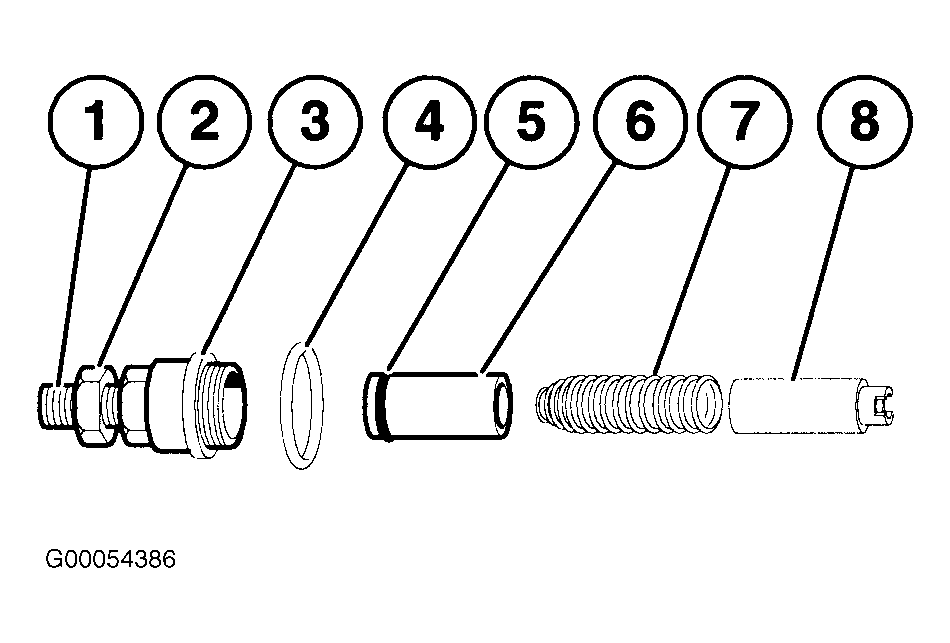

Fig 1: Arrangement Of Components
G00054386Courtesy of BMW OF NORTH AMERICA, INC.
Fig 2: Installing Chain Tensioning Piston
G00054387Courtesy of BMW OF NORTH AMERICA, INC.
