Removal & Installation (Air Induction Pipes Cylinders No. 1-6)

1. Remove non-return valve for cylinders No. 1-6. See NON-RETURN VALVE  under REMOVAL & INSTALLATION. Remove guide tube for dipstick. Remove right distributor cap. Remove spark plug connector for cylinders No. 1-6. Remove nut and remove ignition wiring harness. See Fig 1 .
2. Remove bolt connection (top nuts on exhaust manifold) for heat baffle plate on exhaust manifold of cylinders No. 1-3. See Fig 2 . Unfasten flanges No. 1 and 2. To install, reverse removal procedure. Clean gasket residue off flanges on exhaust manifold for cylinders No. 4-6. See Fig 3 . Replace gaskets. See Fig 4 .

Fig 1: Removing Ignition Wiring Harness

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 2: Identifying Heat Baffle Plate Of Cylinders No. 1-3

Courtesy of BMW OF NORTH AMERICA, INC.

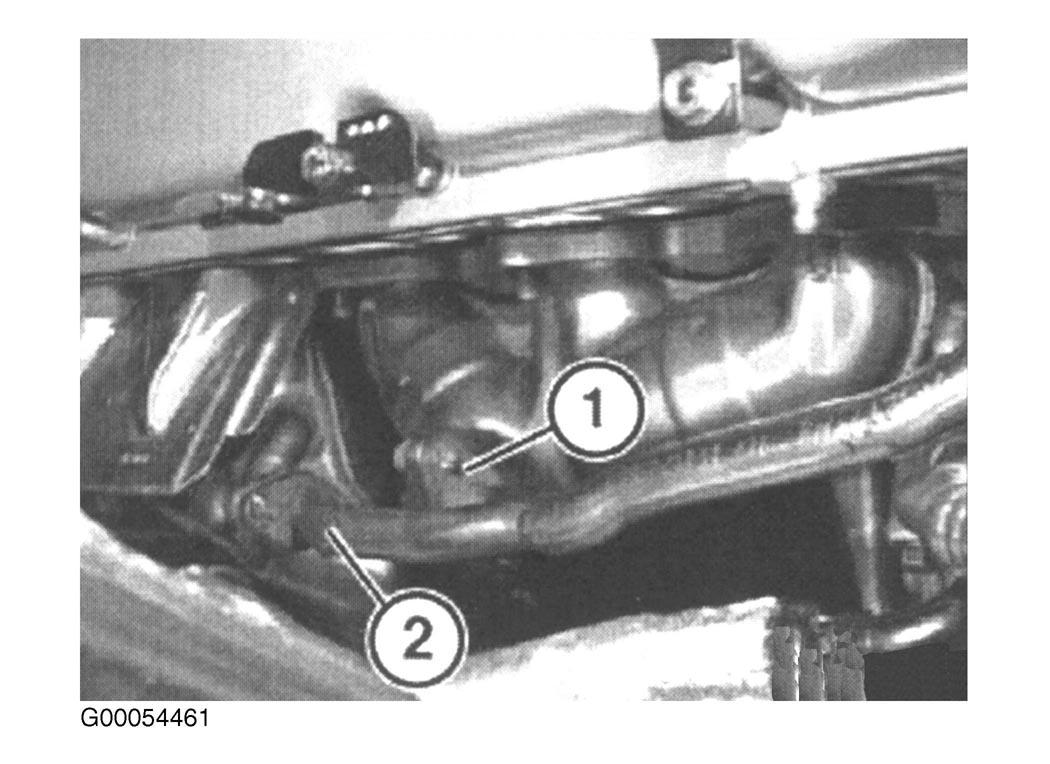

Fig 3: Identifying Flanges On Exhaust Manifold

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 4: Replacing Gaskets

Courtesy of BMW OF NORTH AMERICA, INC.
