Valve Stem Oil Seals

Remove valve stem seal with Pliers (11 1 480). See Fig 1 . Lubricate valve stem with oil and insert valve. Install Sleeve (11 1 380). Coat new valve stem seal with oil and install. See Fig 2 . Press-fit valve stem seal firmly home by hand using Drift (11 1 200). See Fig 3 .

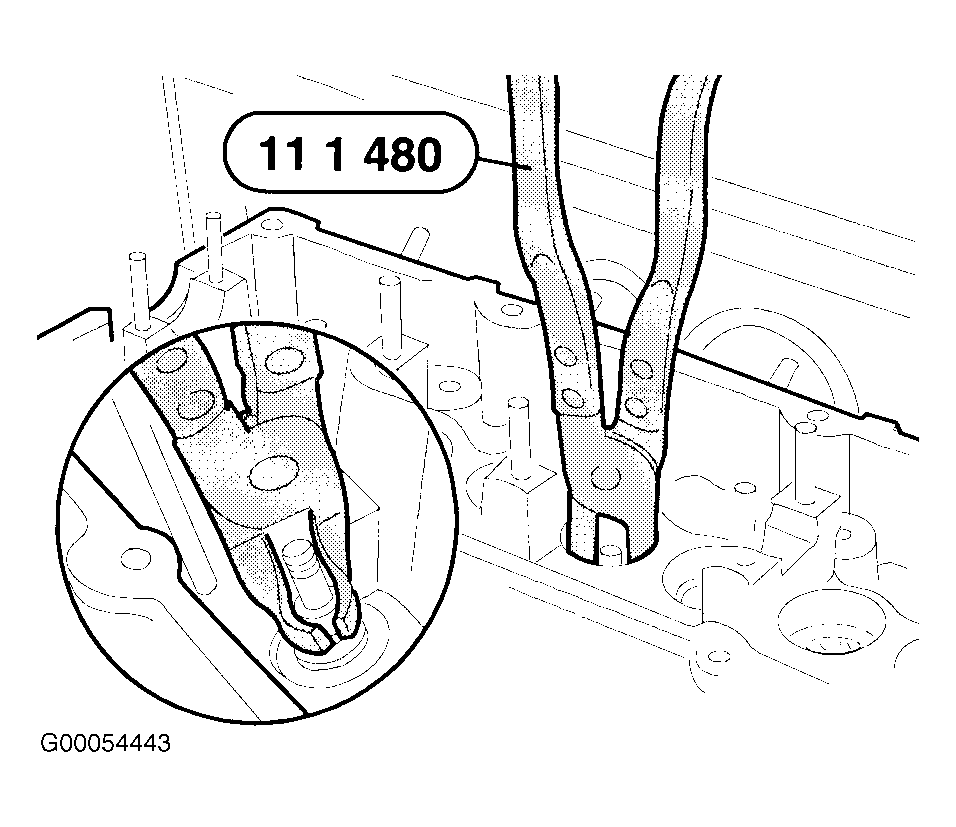

Fig 1: Removing Valve Stem Seal
G00054443Courtesy of BMW OF NORTH AMERICA, INC.
Fig 2: Installing New Valve Stem Seal
G00054444Courtesy of BMW OF NORTH AMERICA, INC.

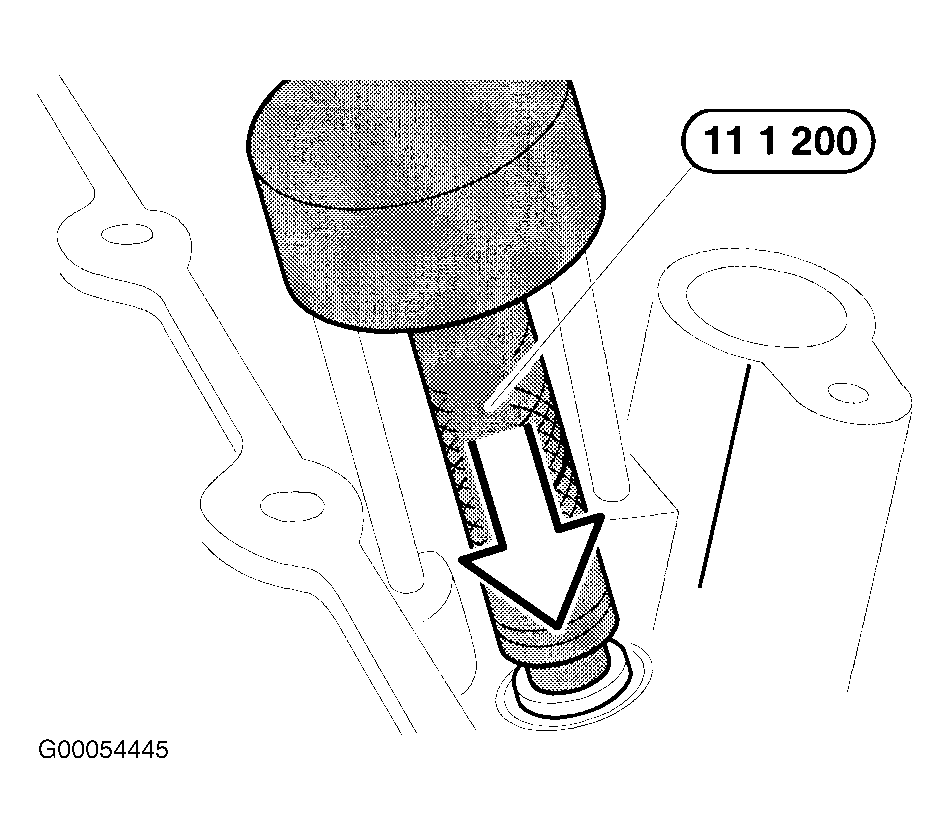

Fig 3: Installing Valve Stem Seal
G00054445Courtesy of BMW OF NORTH AMERICA, INC.
