Valve Seats

Machine valve seat face with Valve Seat (00 3 520) or Valve Seat Milling Cutters (00 3 580). After machining outer and inner diameters of valve seat face, use milling tool to rework valve seat width. See Fig 1 . Also seeCYLINDER HEAD  under ENGINE SPECIFICATIONS.

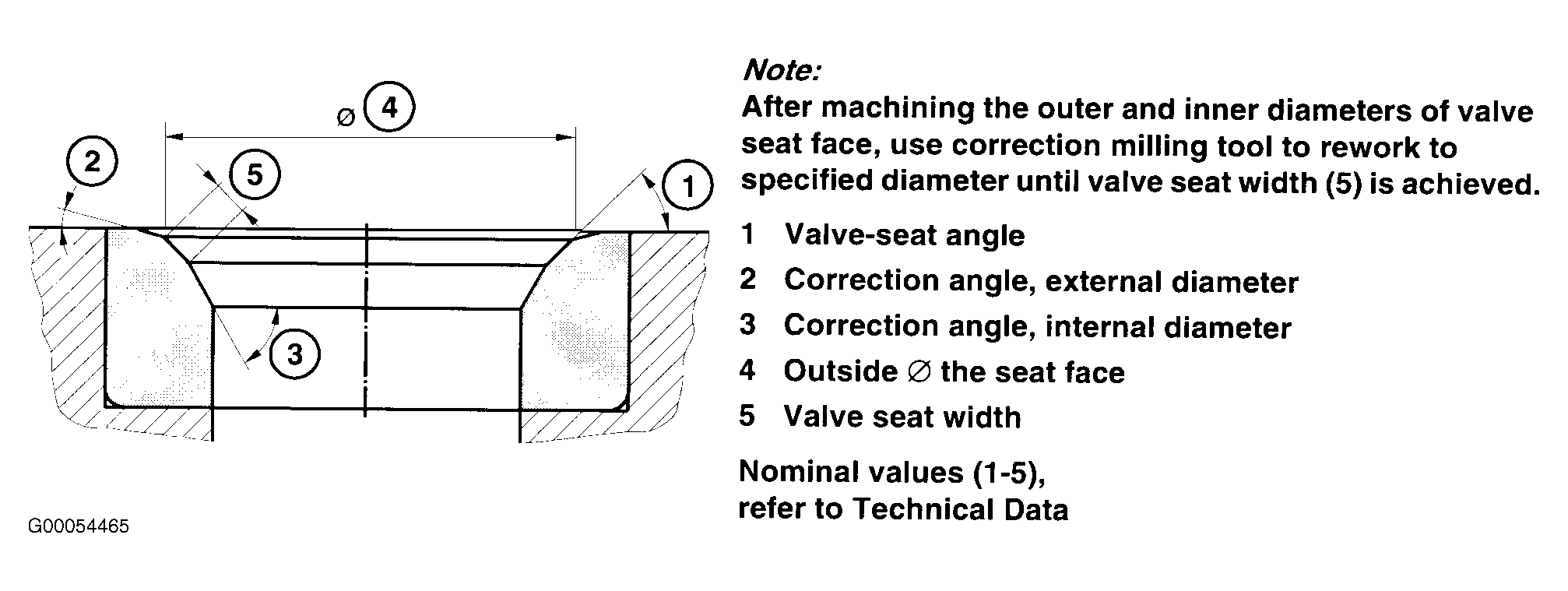

Fig 1: Identifying Valve Seat Angles
G00054465Courtesy of BMW OF NORTH AMERICA, INC.
