Master Cylinder: Removal

  1. Remove brake fluid from reservoir. Use a syringe dedicated to brake fluid.
  2. Pull off brake fluid tank (1). See Fig 1 .
  3. Disconnect brake pipes (2 and 3) from master cylinder. See Fig 1 .
  4. Unscrew tandem brake master cylinder on the brake booster.

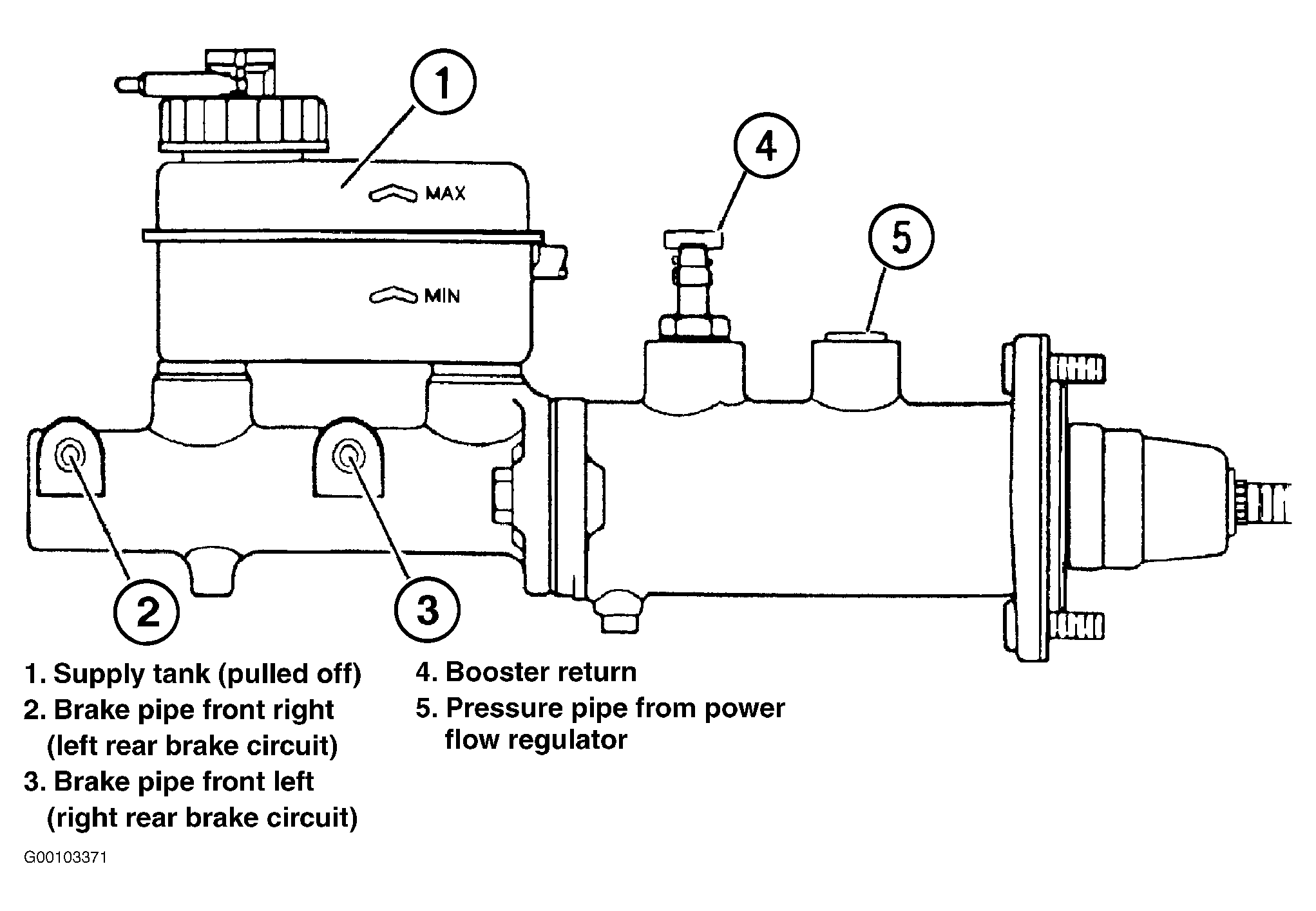

Fig 1: Locating Brake Master Cylinder Components
G00103371Courtesy of BMW OF NORTH AMERICA, INC.
