Brake Light Switch: Removal

  1. Remove lower A pillar trim panel.
  2. Remove unlocking lever for front panel.
  3. Remove dashboard trim panel at bottom left.
  4. Disconnect plug connection. See Fig 1 .
  5. Depress brake pedal. Pull plunger sleeve forward completely (1). See Fig 2 .
  6. Compress retainers and pull switch toward rear (2). See Fig 2 .

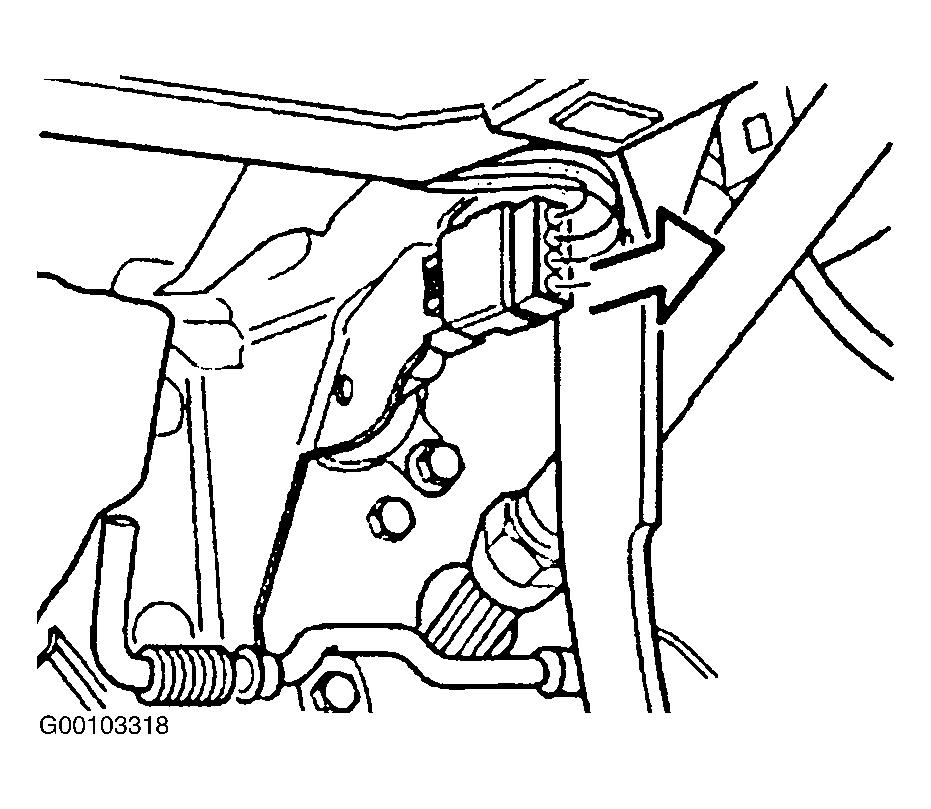

Fig 1: Disconnecting Plug Connection
G00103318Courtesy of BMW OF NORTH AMERICA, INC.
Fig 2: Removing Brake Light Switch
G00103319Courtesy of BMW OF NORTH AMERICA, INC.
