12 31 230 Removing and installing / replacing mounting block for alternator (M73)

Switch off ignition

Remove alternator,

refer to 12 31 020 REMOVING AND INSTALLING/REPLACING ALTERNATOR (M73)

Unfasten cover of oil filter to enable engine oil left in oil filter to flow back into oil pan.

Installation:

  1. Close cover on oil filter, check engine oil level and top up if necessary.

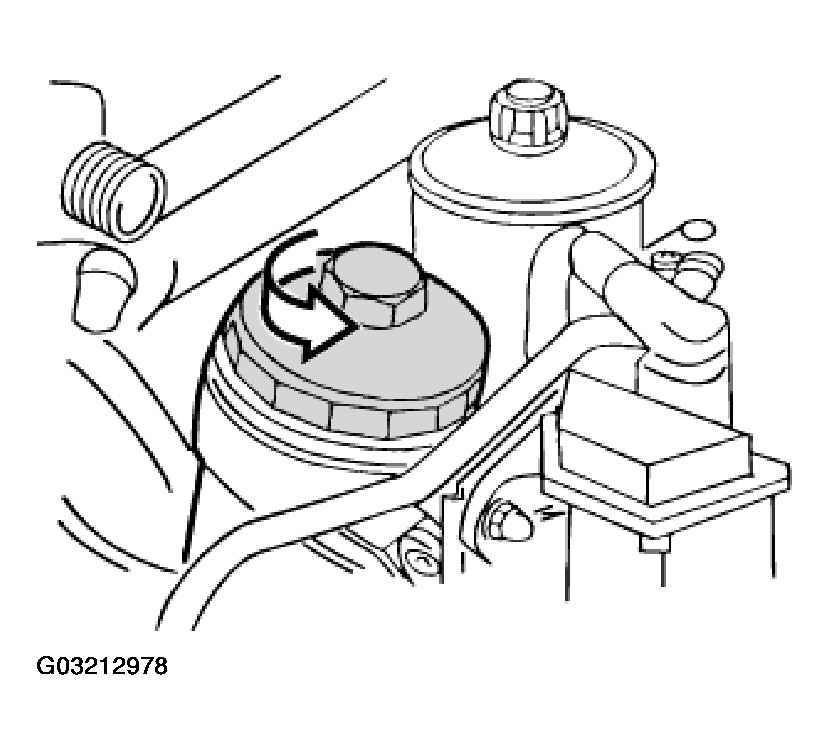

Fig 1: Removing Oil Filter Cover
G03212978

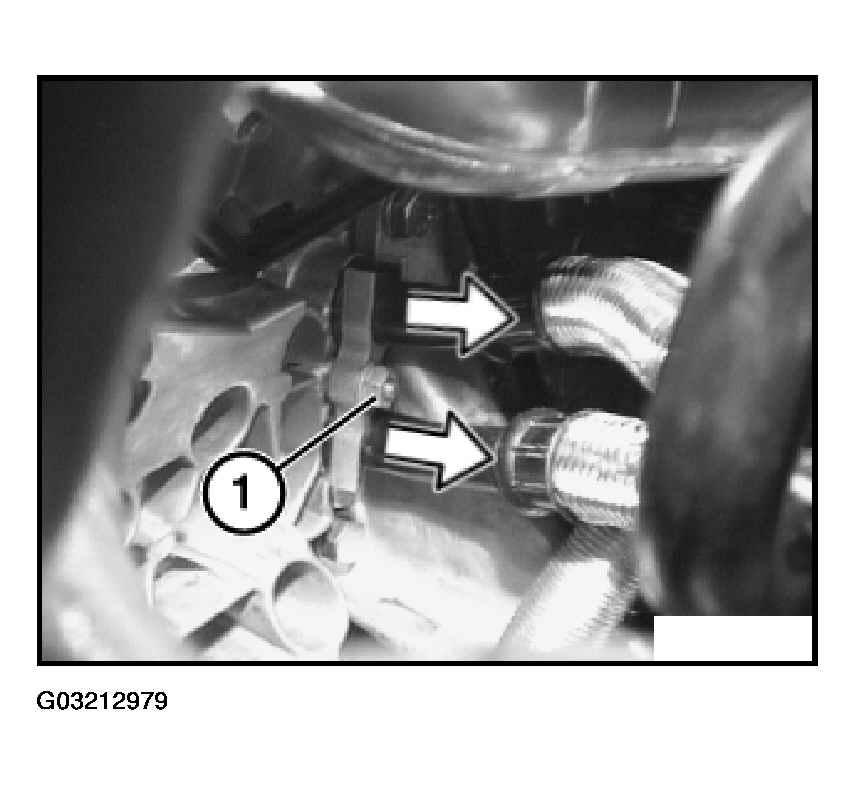

Fig 2: Releasing Alternator Mounting Block Nut
G03212979

Unfasten nut (1) on alternator mounting block, note down installation position of oil lines and remove oil lines.

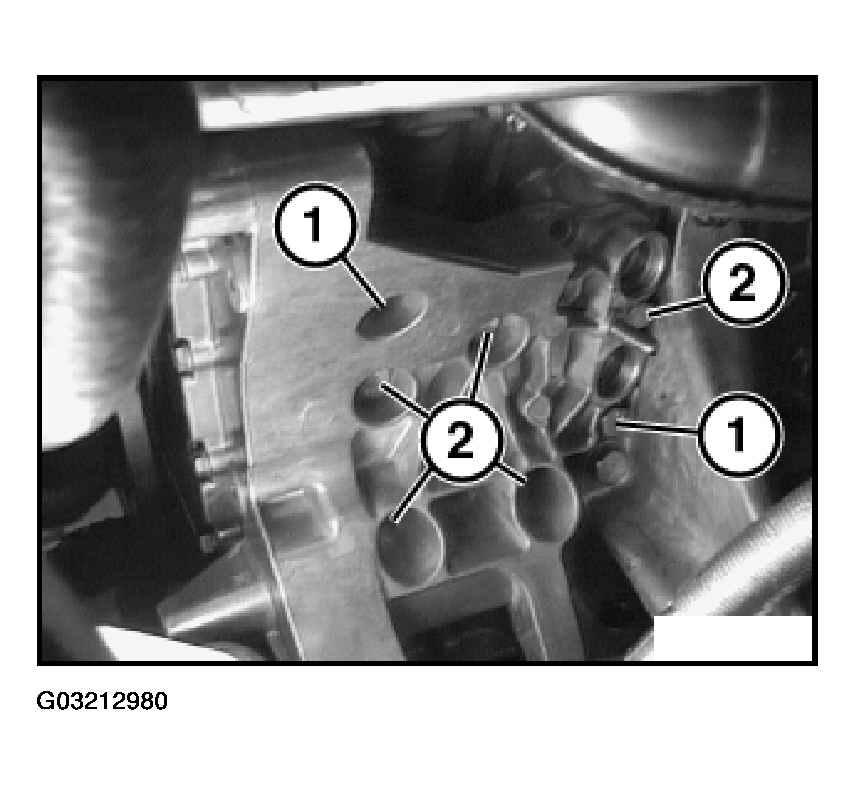

Fig 3: Releasing Screws
G03212980

Mounting block, unfasten screws.

Installation:

  1. Note length of screws! Long screws (1), short screws (2).

Installation:

  1. Clean sealing face and replace gasket.

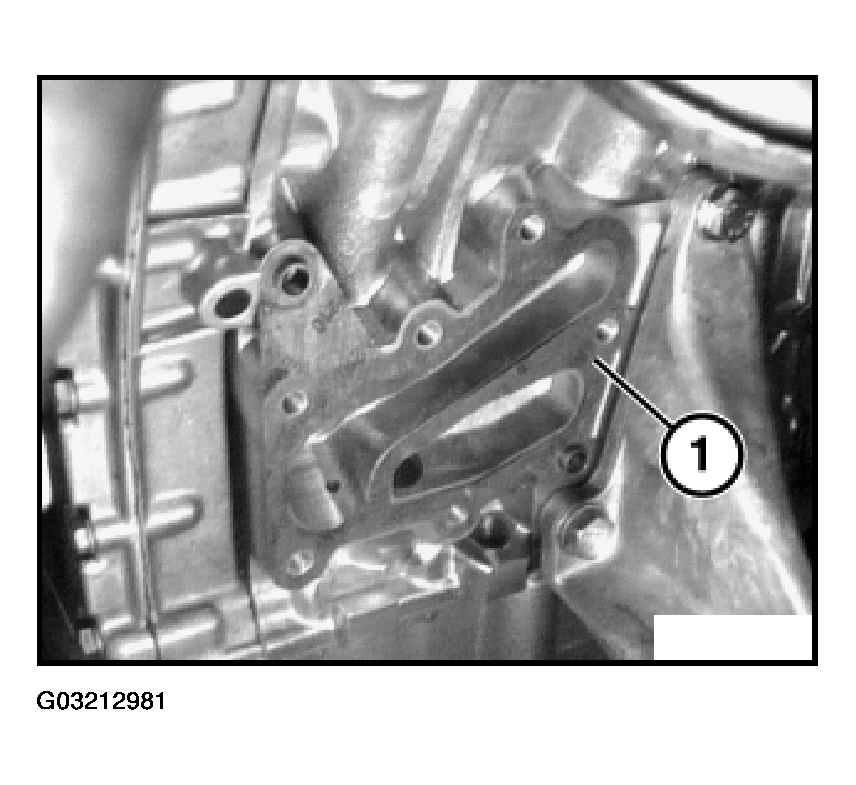

Fig 4: Locating Sealing Face
G03212981

Installation:

  1. Replace sealing rings on oil line flanges.

To facilitate assembly, always coat seals on oil lines with anti-friction agent. Carefully fit oil lines.

Note torsion protection (1) on oil lines in bracket.

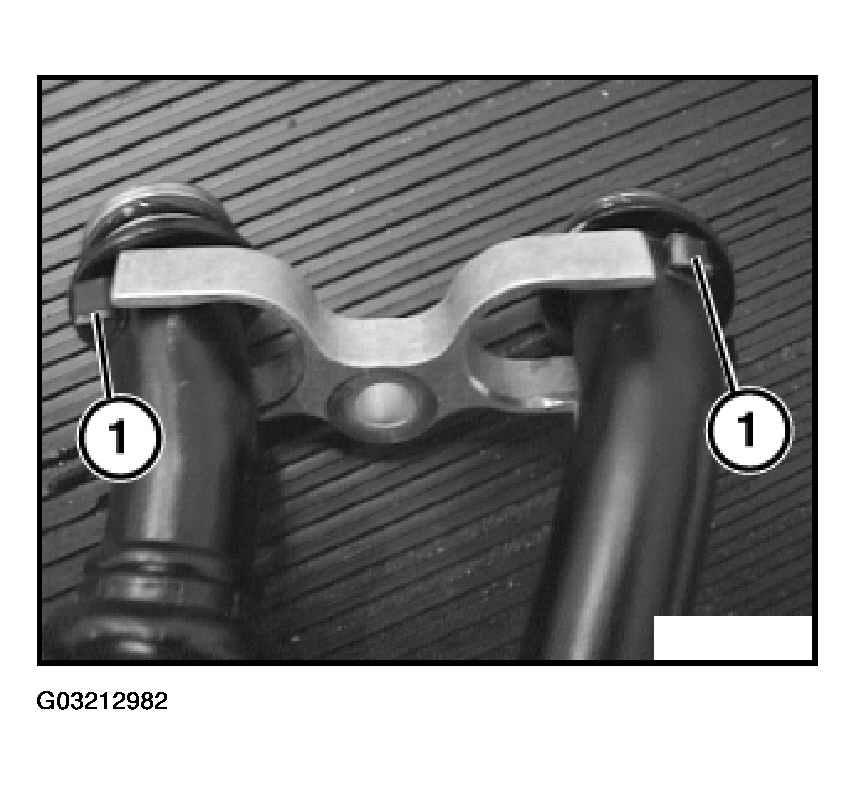

Fig 5: Locating Oil Lines Torsion Protection
G03212982
