34 11 667 Fine-grinding both sides of both front brake disks (brake disks removed)
CAUTION:
Always fine-grind both sides of both brake disks on one axle.
Observe max. machining dimension on each friction ring side, minimum brake disk thickness (MIN TH) and surface roughness of braking surfaces.
Brake disks of M models (Compound brake disks) must not be machined!
Observe max. machining dimension on each friction ring side, minimum brake disk thickness (MIN TH) and surface roughness of braking surfaces.
Brake disks of M models (Compound brake disks) must not be machined!
NOTE:
On brake disks which have been lathe-turned to the minimum brake disk thickness (MIN TH), only one brake lining set may still be used up.

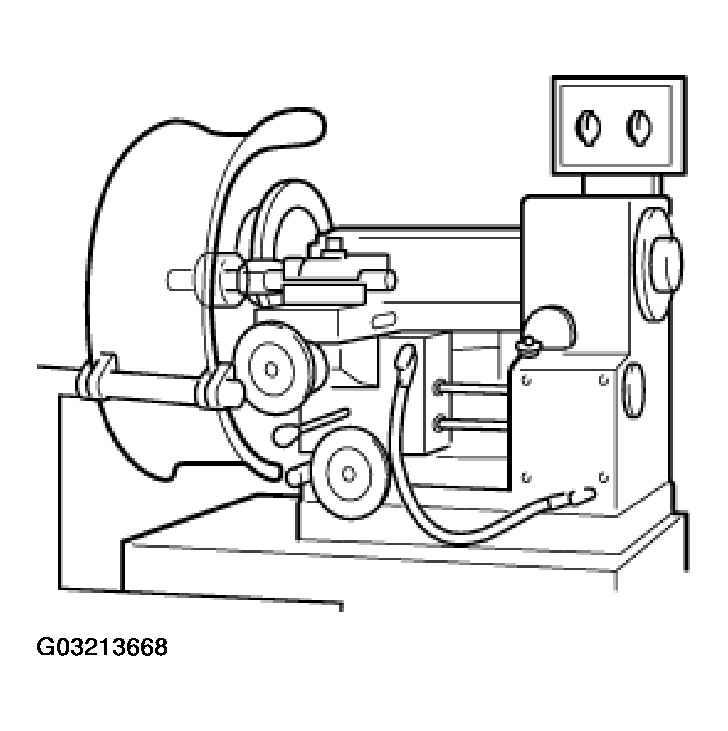

Grinding machine.
Follow the machine manufacturer's operating instructions.
