34 52 535 Removing and installing/replacing rear ABS pulse generator

Open connector housing (1), pull plug connector (2) out of bracket and disconnect. Pull cable out of fasteners on swinging fork.

Installation:

1. Ensure proper locking of the plug connector and proper seating of the cable in the brackets.

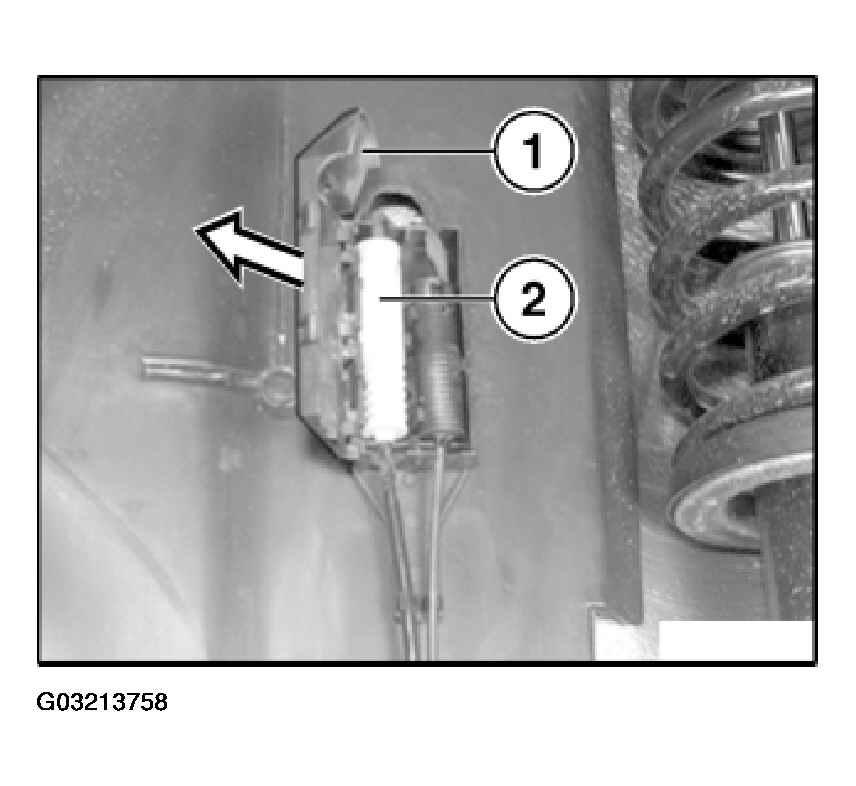

Fig 1: Opening Connector Housing & Pulling Plug Connector Out Of Bracket

Release hexagon socket head cap screw (1), pull ABS pulse generator out of bore.

Installation:

1. Tightening torque, 34 51 6AZ.
2. Clean hole for impulse sensor and grease with lubricating grease Staburags NBU 12/K.

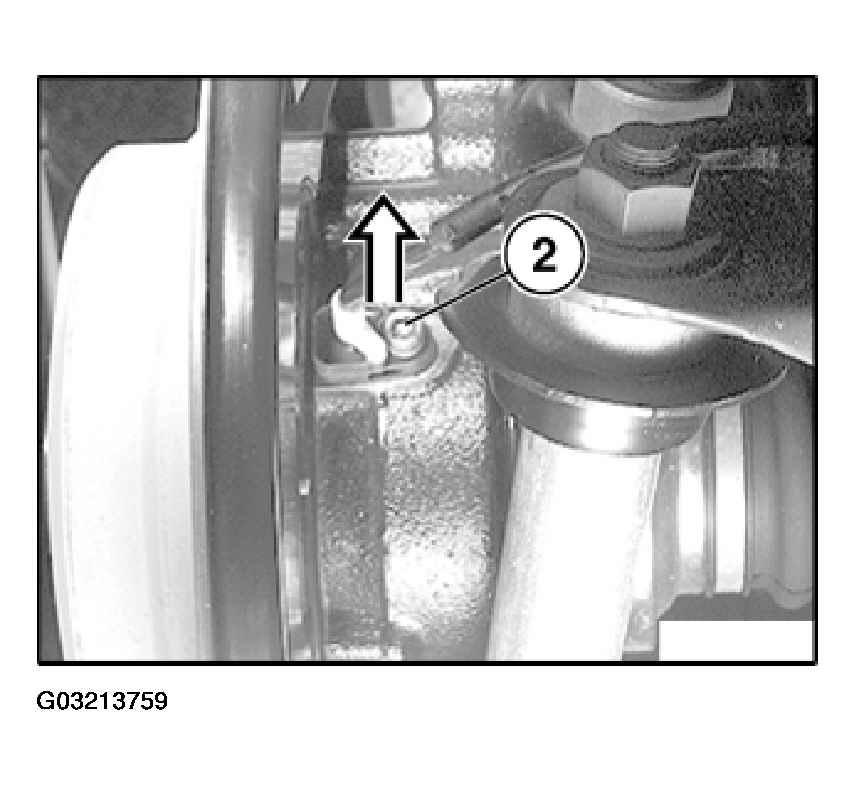

Fig 2: Releasing Hexagon Socket Head Cap Screw & Pulling ABS Pulse Generator Out Of Bore
