63 21 180 Removing and installing or replacing complete tail light assembly

Open side trim and fold downwards.

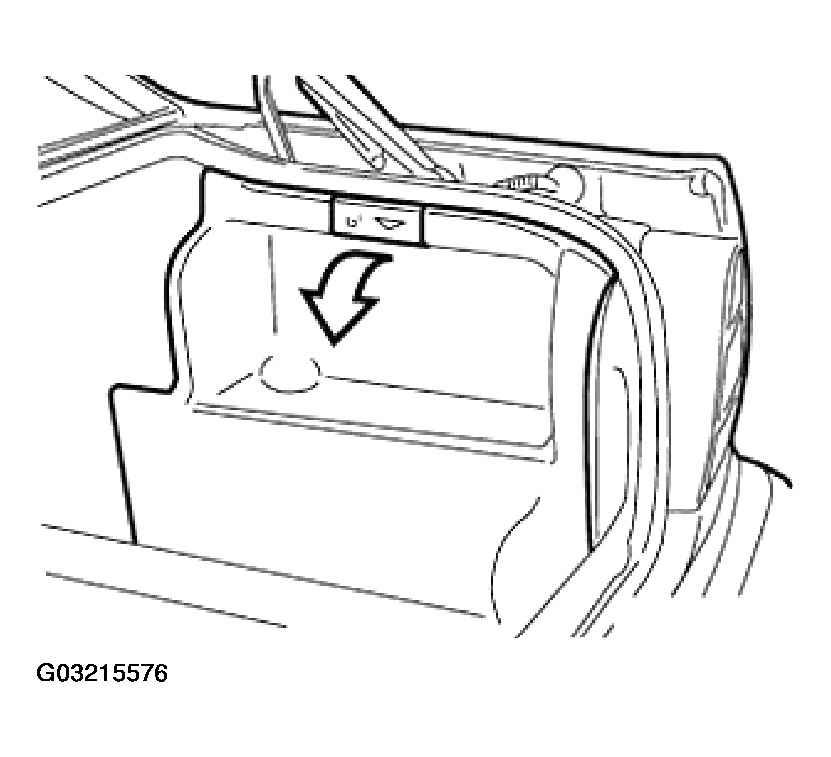

Fig 1: Opening Side Trim And Fold Downwards
G03215576

Pull off connector. Unscrew nuts and remove tail light assembly by pulling out.

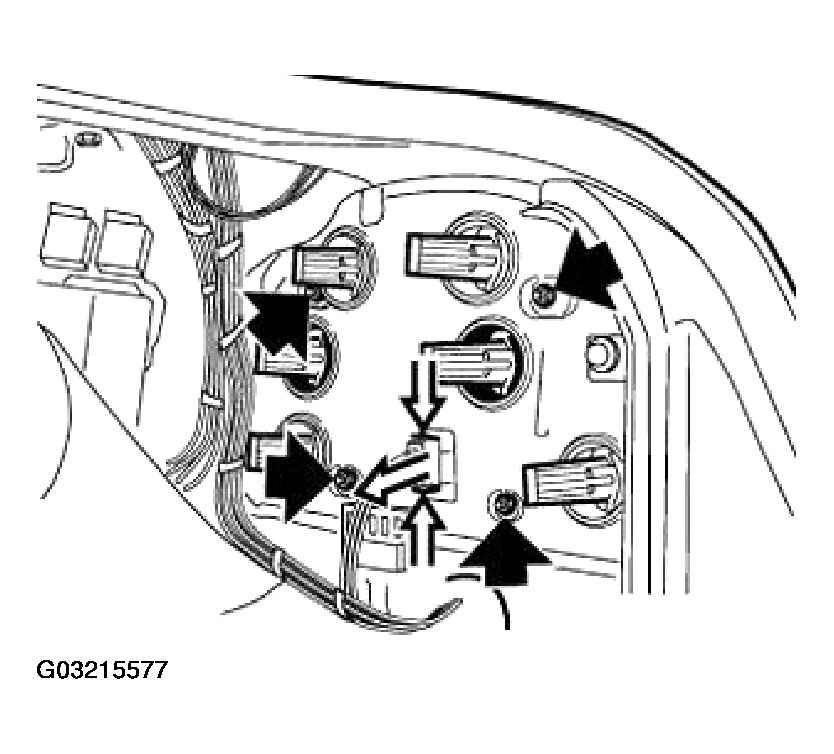

Fig 2: Removing Tail Light Assembly By Pulling Out
G03215577
