63 99 431 Replacing light bulb(s) for ceiling light

WARNING: Follow instructions for handling light bulbs (interior lights).

Version with inside reading lamps:

Remove complete ceiling light (with inside reading lamps).

Turn socket housing for bulb counterclockwise and remove.

Remove bulb.

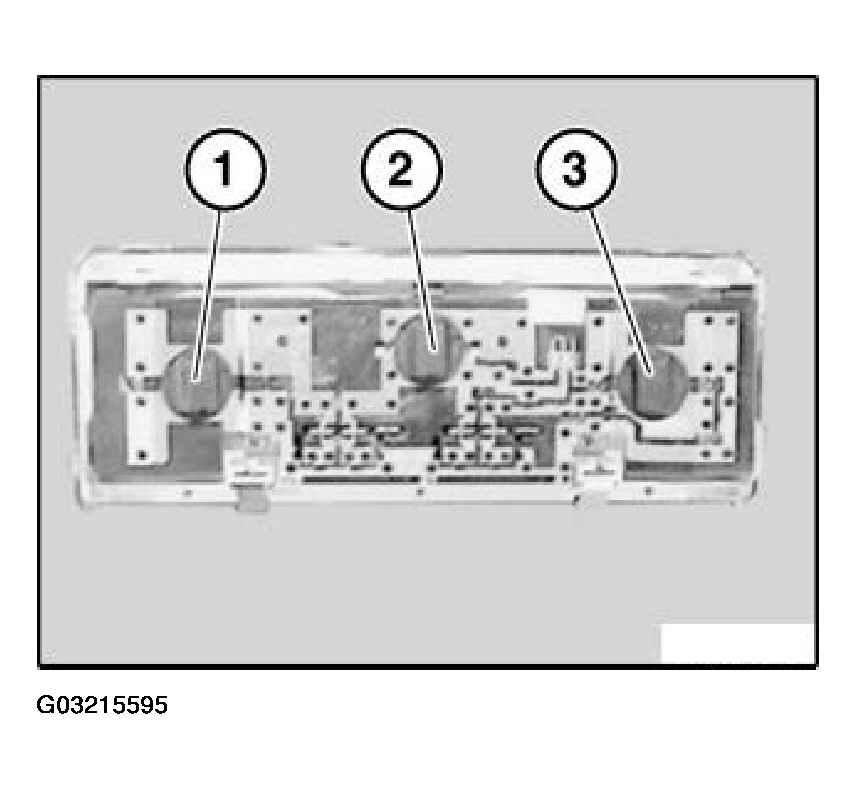

NOTE:

Socket housing for left inside reading lamp
Socket housing for ceiling light
Socket housing for right inside reading lamp

Fig 1: Removing Complete Ceiling Light

Version without inside reading lamps:

Remove complete ceiling light (without inside reading lamps).

Loosen screws (1).

Remove ceiling light (2) from lens underneath.

Remove bulb(s).

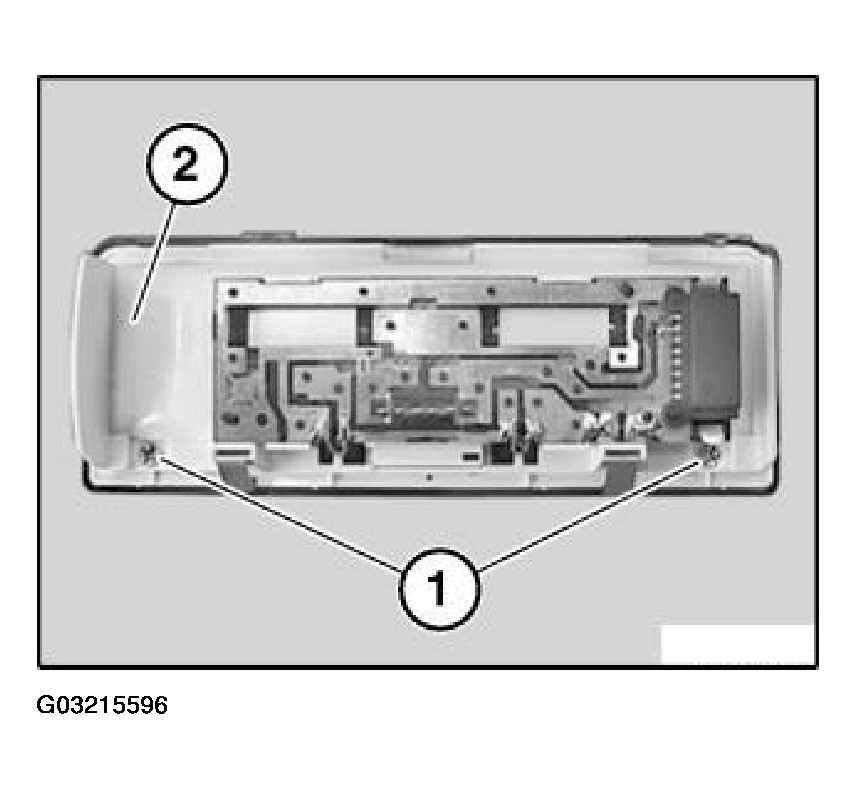

Fig 2: Removing Ceiling Light From Lens Underneath

All:

Installation:

Note type of bulb.
