63 99 076 Replacing lamp for left xenon light.

Release clip and take off bulb cover.

Pull off connector on the lamp, disconnect spring wire bracket and remove lamp.

IMPORTANT: Do not take hold of glass part of bulb with bare fingers.
Only take hold of bulb on base or with a clean cloth or packaging of light bulb.
Note type of bulb.

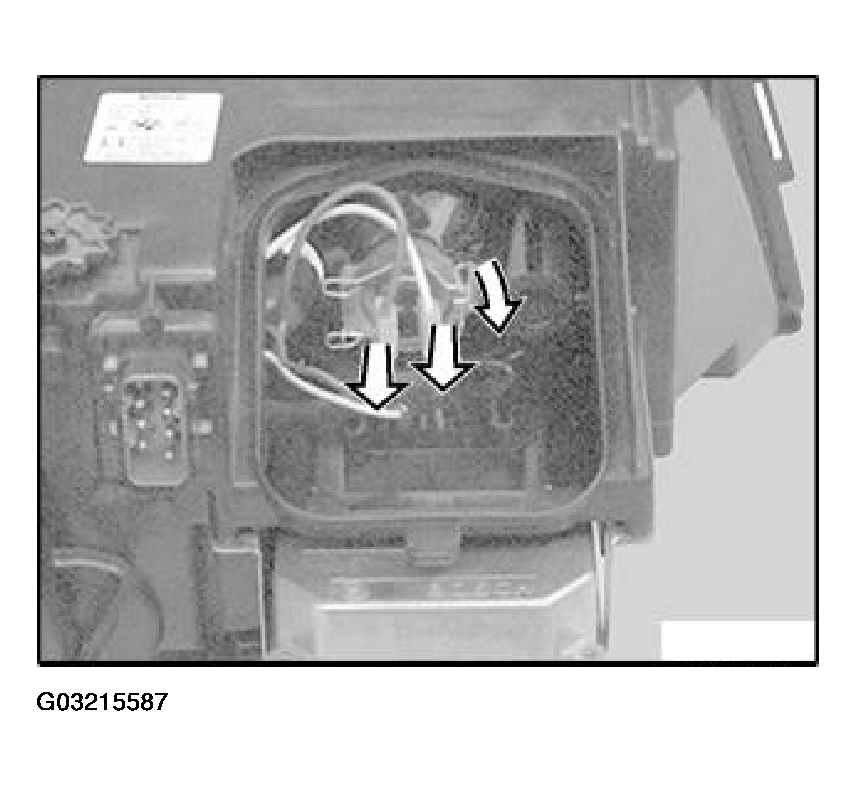

Fig 1: Replacing Lamp For Left Xenon Light
G03215587
