63 31 000 Removing and installing/replacing complete ceiling light

NOTE: Secure complete ceiling light against falling out.

Lever out complete ceiling light (1) in direction of arrow.

Disconnect plug connection underneath and remove complete ceiling light (1).

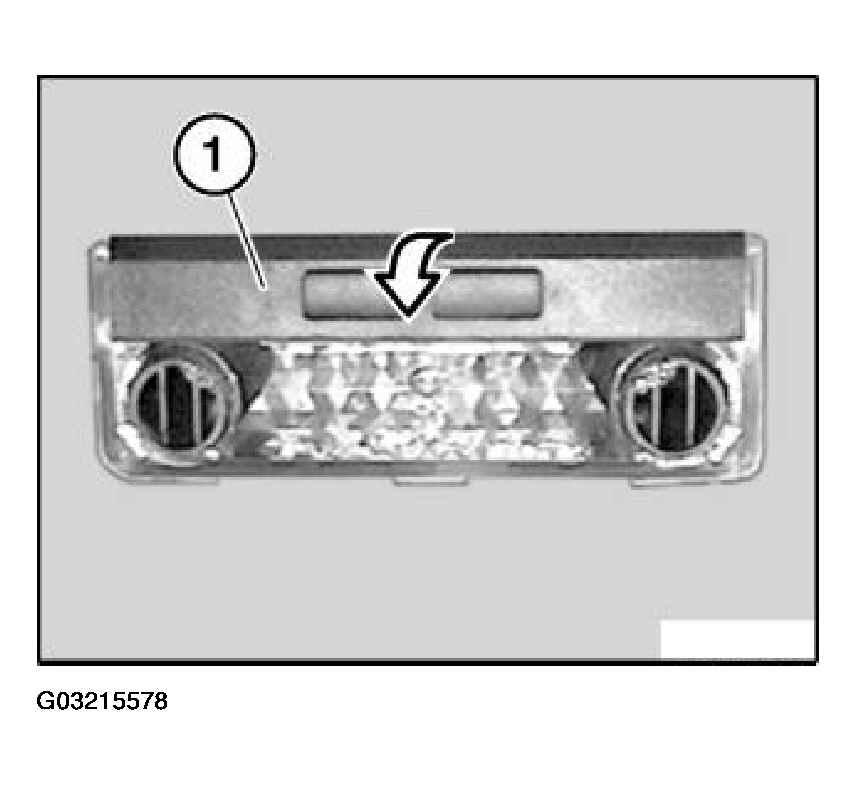

Fig 1: Removing Complete Ceiling Light
G03215578
