63 12 401 Replacing left headlight insert

1. Remove lens with cover frame, refer to 63 12 040 REMOVING AND INSTALLING OR REPLACING LENS WITH COVER FRAME FOR LEFT HEADLIGHT

Remove connector from low-beam, high-beam and parking light receptacles.

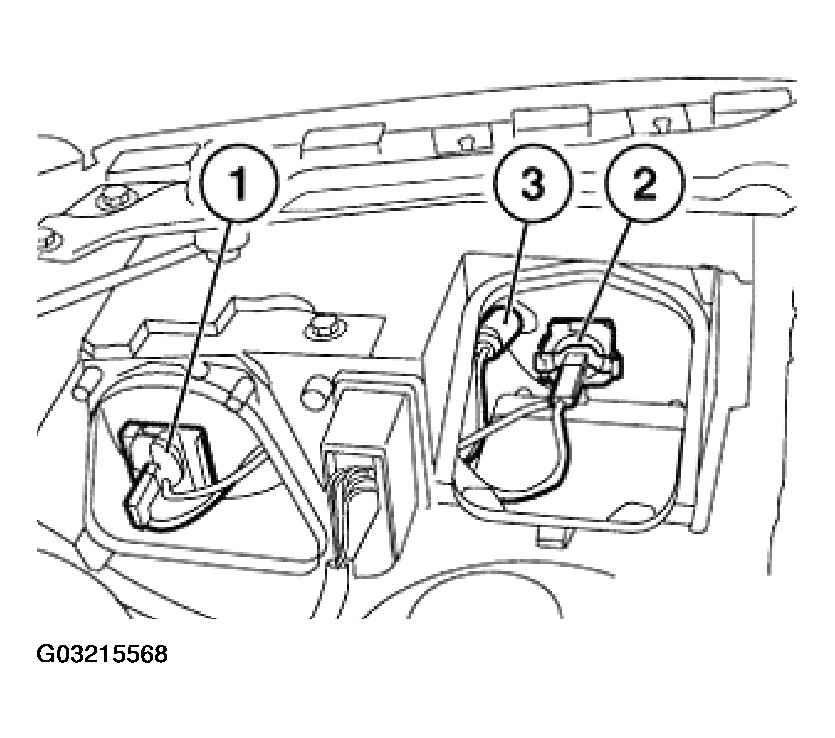

Fig 1: Removing Connector From Low-Beam, High-Beam And Parking Light Receptacles

Remove fuse (1).

Press clips apart at each retaining point and remove headlight insert from retaining point.

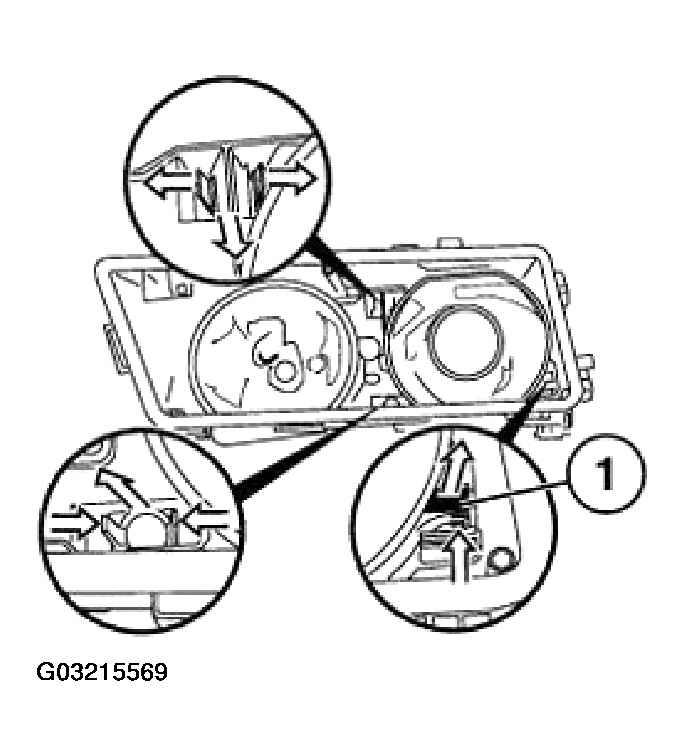

Fig 2: Removing Headlight Insert From Retaining Point
