63 17 000 Removing and installing or replacing fog lamp insert (complete)

Unclip headlight by inserting a screwdriver through upper aperture.

Pull off connector. Disconnect steel-wire clamp and pull out light bulb.

CAUTION: Do not take hold of glass part of bulb with bare fingers. Only grip light bulb on base and use either a clean cloth or the lamp packaging.

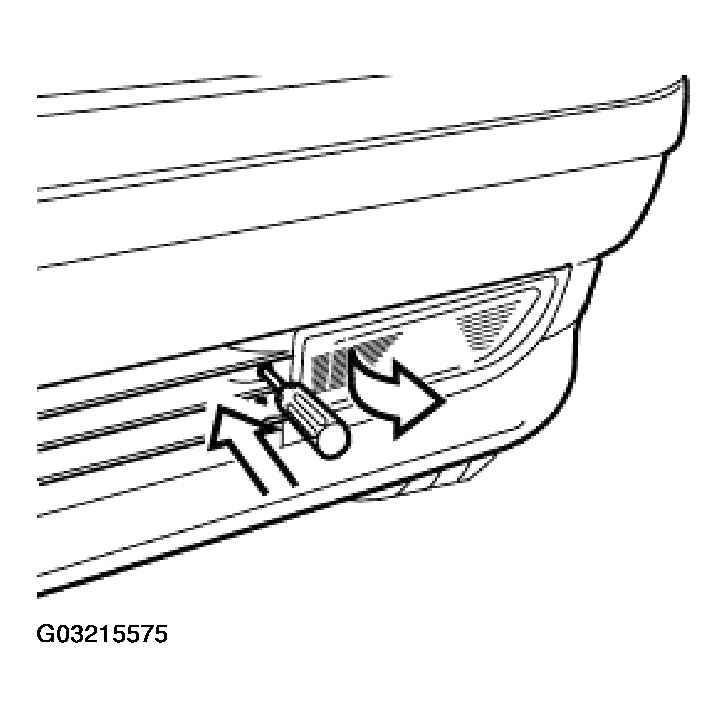

Fig 1: Unclipping Headlight By Inserting Screwdriver Through Upper Aperture
G03215575
