16 11 030 Removing and installing fuel tank: Installation:

Replace fuel lines and hose clips.

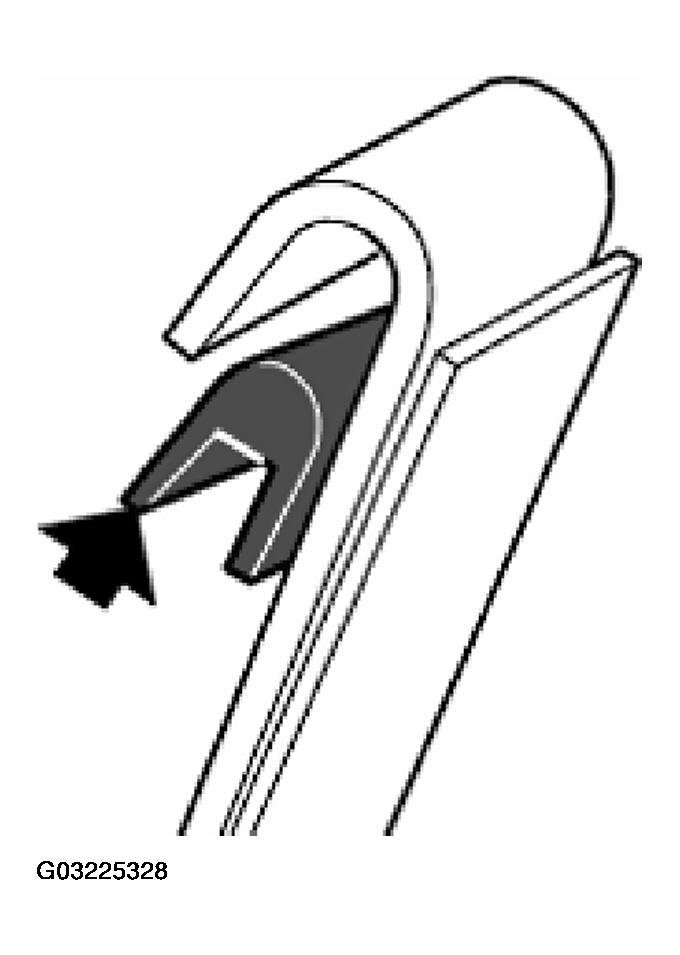

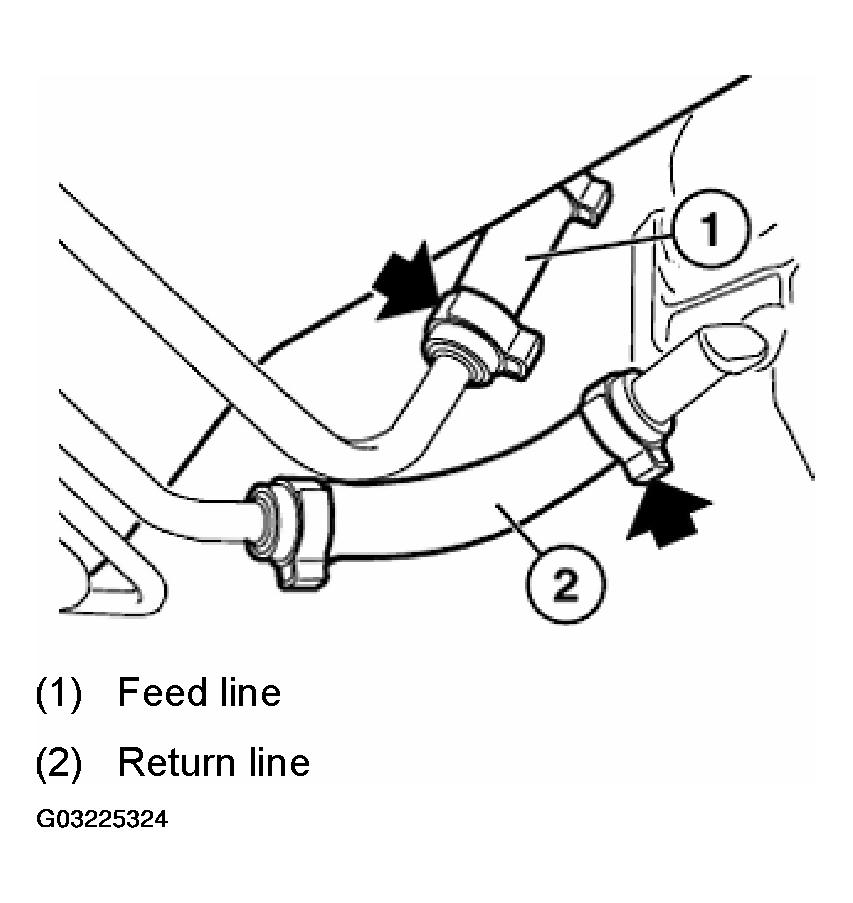

Fig 1: Identifying Hose Clips

Remove filler hose.

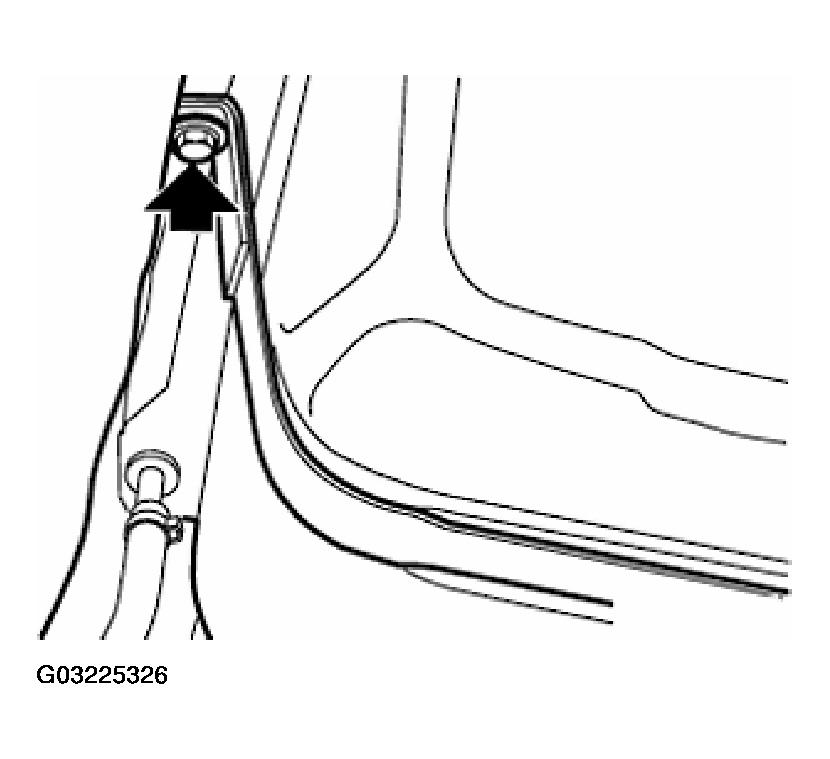

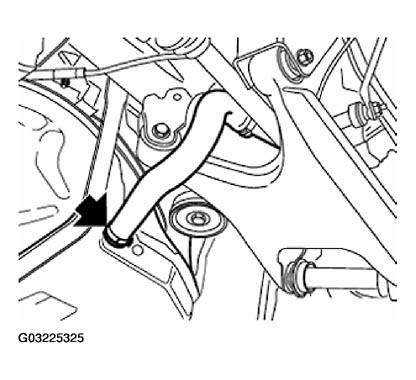

Fig 2: Removing Filler Hose

Unscrew and remove front straps.

Fig 3: Removing Front Straps

Note rubber mount with spacer bush.

Wide collar on spacer bush faces towards screw head.

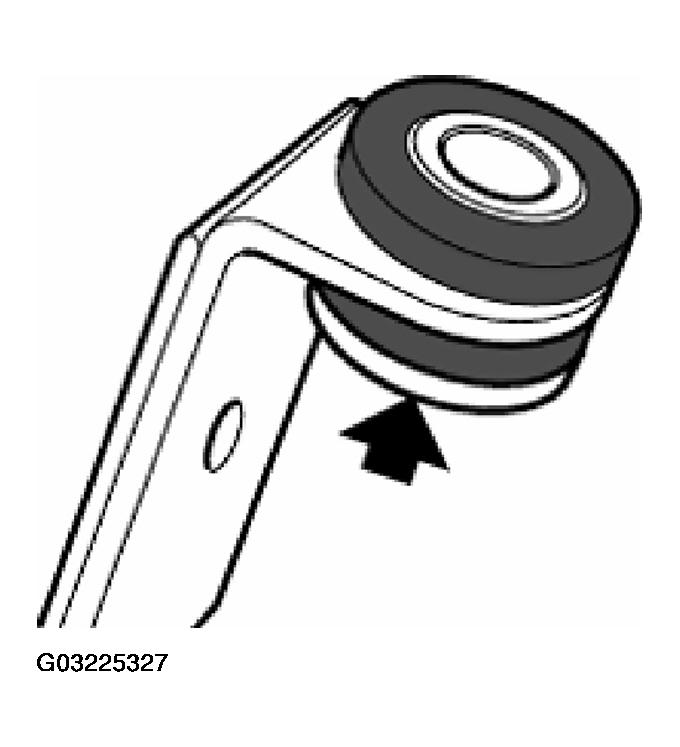

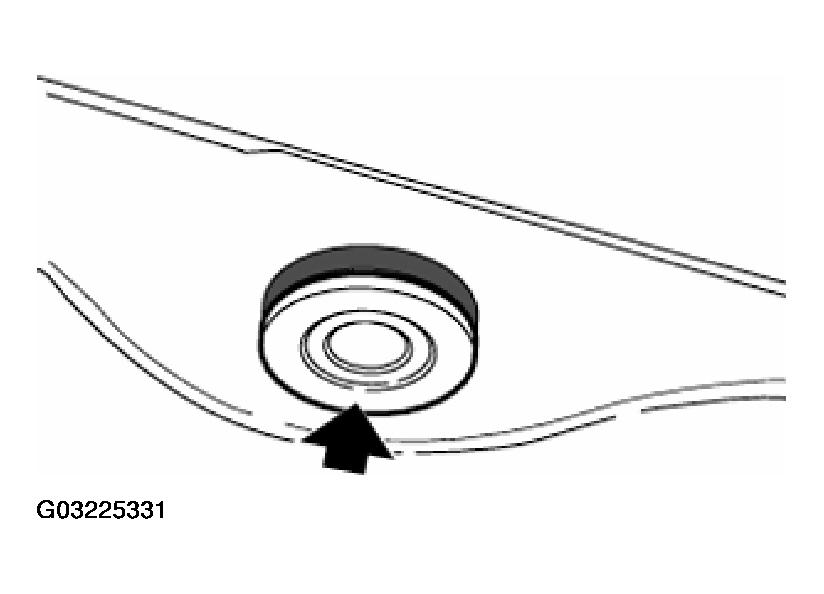

Fig 1: Identifying Wide Collar On Spacer Bush Faces Towards Screw Head

Note washer in suspension strap.

Fig 2: Identifying Washer In Suspension Strap

Heavily support the fuel tank.

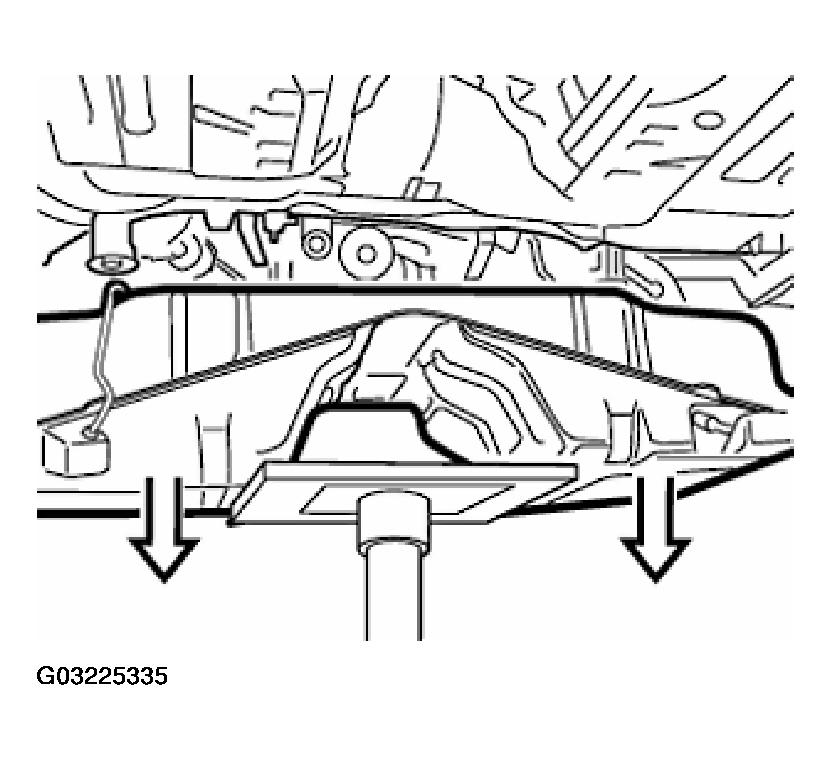

Fig 3: Supporting Fuel Tank

Unfasten left and right screw.

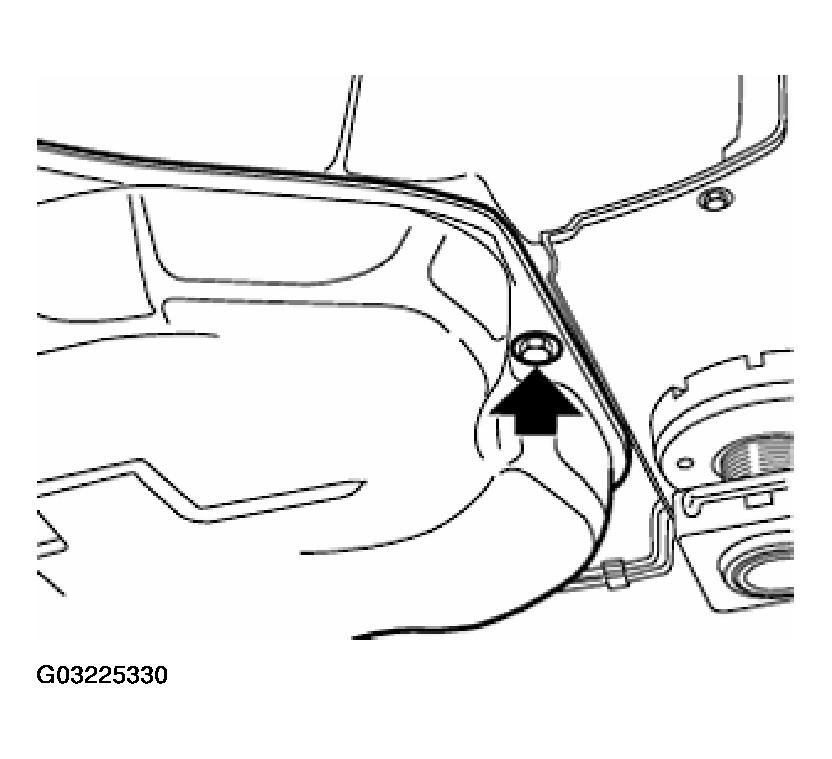

Fig 4: Unfastening Left And Right Screw

Note rubber mount with spacer bush.

Wide collar on spacer bush faces towards screw head.

Fig 1: Installing Rubber Mount With Spacer Bush

Slightly lower the fuel tank and tilt it forward until the lines can reach the upper side of the fuel tank.

Loosen the lines at the upper side of the fuel tank on the left.

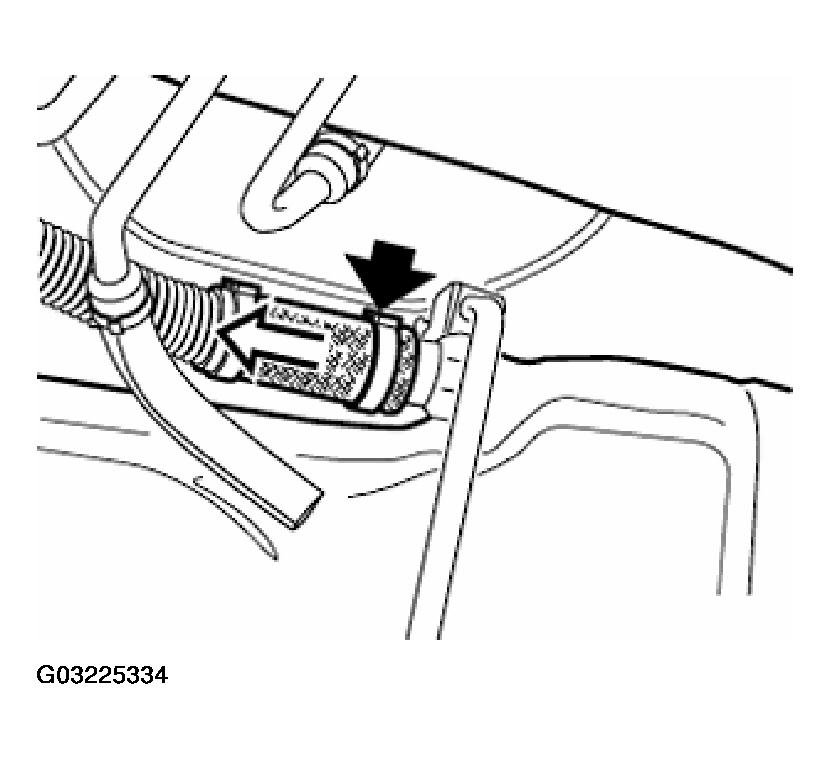

Fig 2: Loosing Lines At Upper Side Of Fuel Tank

Layout of lines:

To carbon canister
To expansion tank

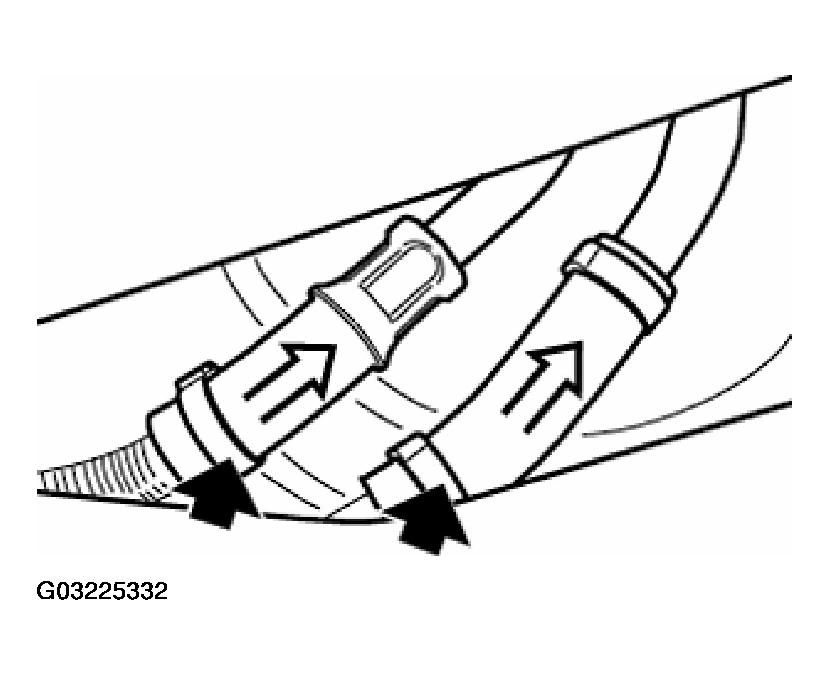

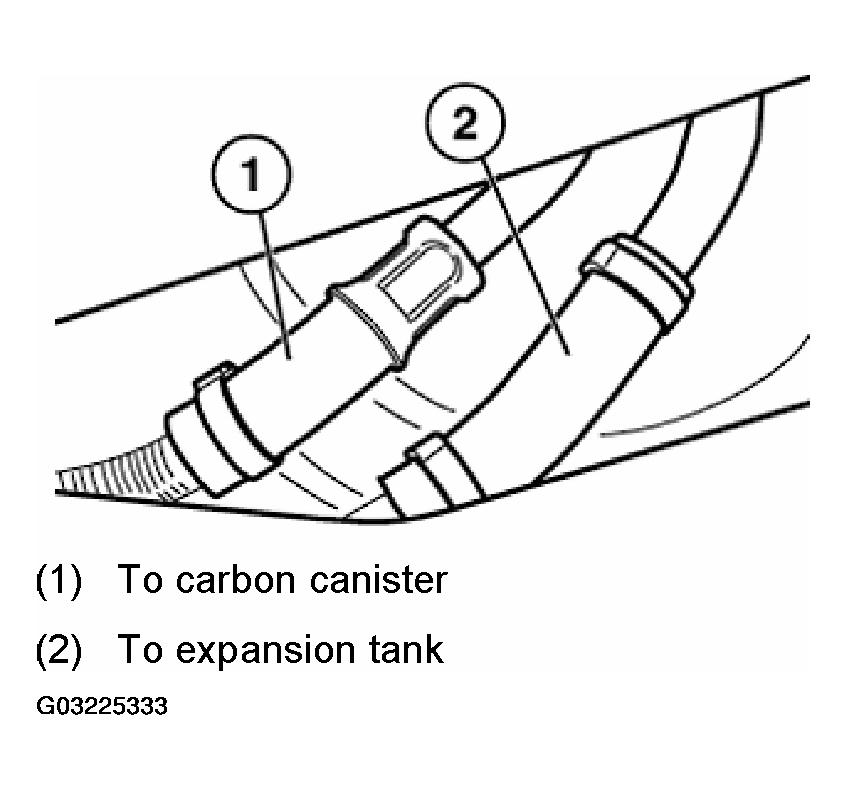

Fig 3: Identifying Hoses To Carbon Canister And Expansion Tank

Loosen the ventilation line at the upper side of the fuel tank on the right.

Fig 4: Loosing Ventilation Line At Upper Side Of Fuel Tank

Lower the fuel tank and remove downwards.

Fig 5: Lower Fuel Tank And Remove Downwards

Note the rubber supports at the back of the fuel tank.

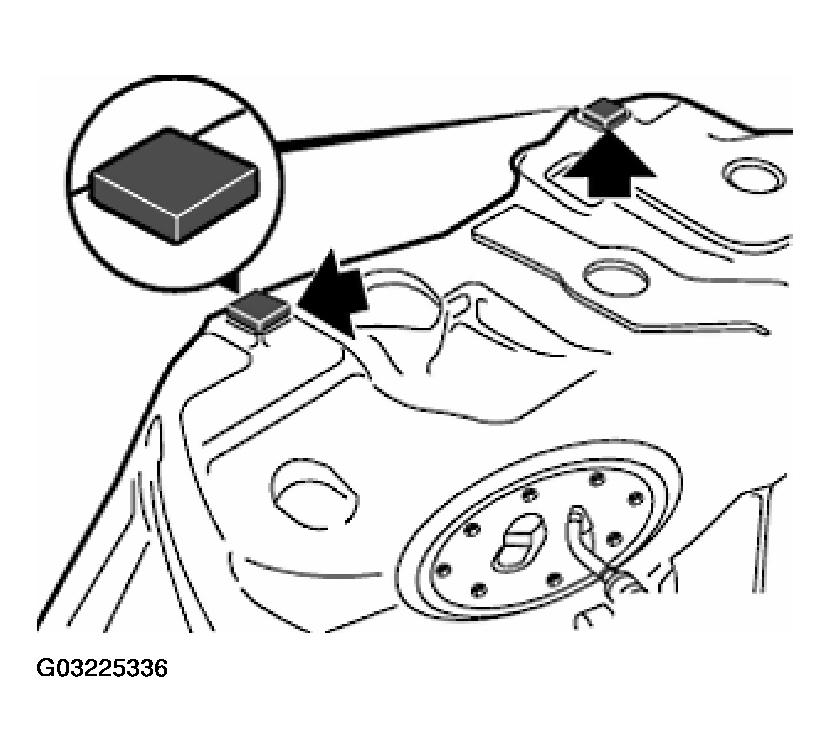

Fig 1: Installing Rubber Supports At Back Of Fuel Tank

Note locating wedges with rubber cover on floor assembly.

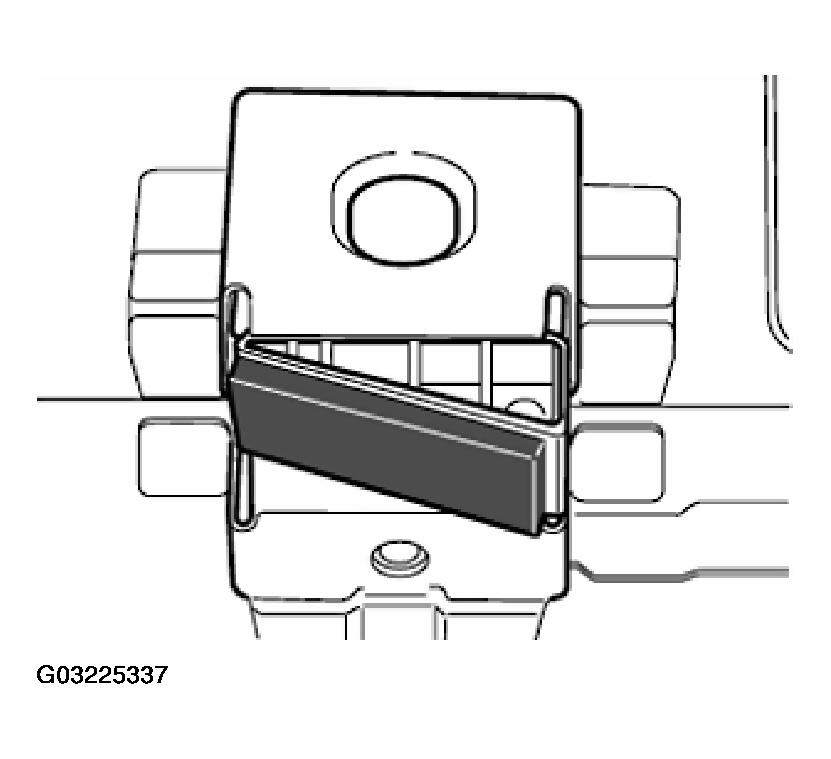

Fig 1: Identifying Wedges With Rubber Cover On Floor Assembly
