ENGINE ELECTRICAL SYSTEM - REPAIR INSTRUCTIONS - 740i & 740iL
>>
Ignition coil
>>
12 13 520 Replacing a spark plug connector (M60, M62, M54)
12 13 520 Replacing a spark plug connector (M60, M62, M54)
Switch off ignition.
Remove ignition coils.

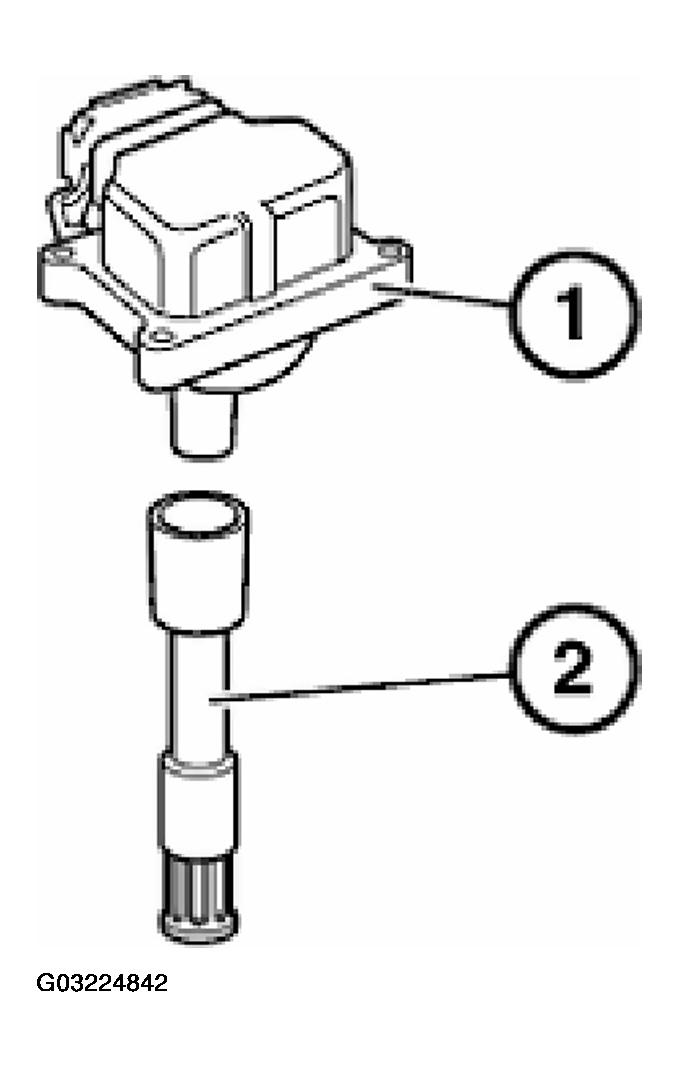

Detach ignition coil (1) from spark plug connector (2).
Fig 1: Detaching Ignition Coil
