Battery In Luggage Compartment Under Floor Trim Panel
Follow instructions for disconnecting and connecting battery. See 12 00 Instructions For Disconnecting And Connecting Battery .

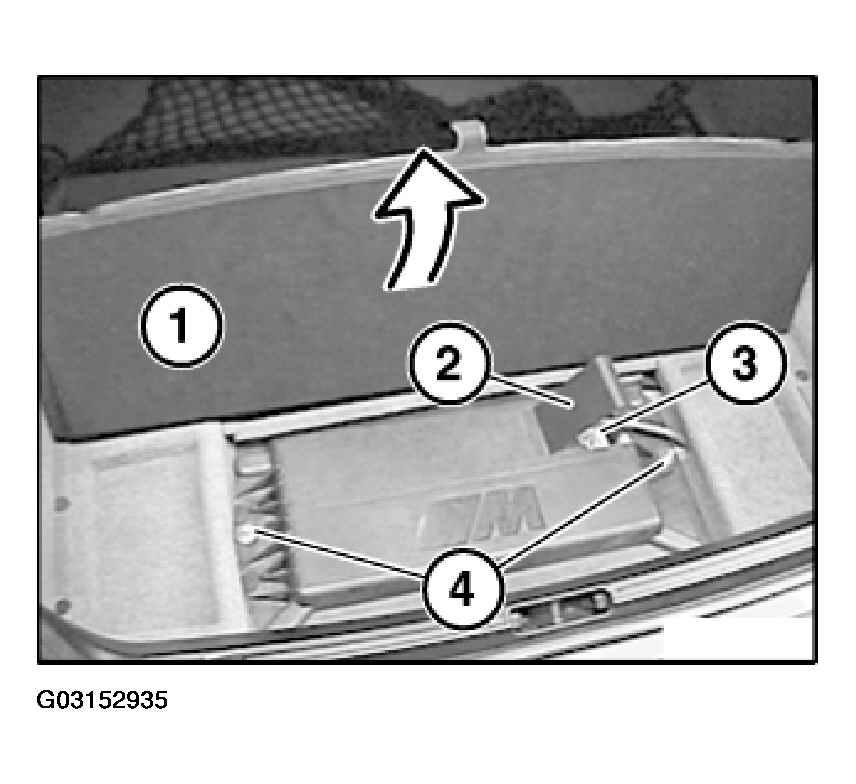

Fold back floor trim panel (1).
Lift cover (2) on battery negative lead.
Disconnect and cover battery negative lead (3).
Release nuts (4).
Remove battery cover.
