Battery In Luggage Compartment Behind Side Trim Panel

Remove side trim panel.

Follow instructions for disconnecting and connecting battery. See 12 00 Instructions For Disconnecting And Connecting Battery  .

Disconnect and cover battery negative lead.

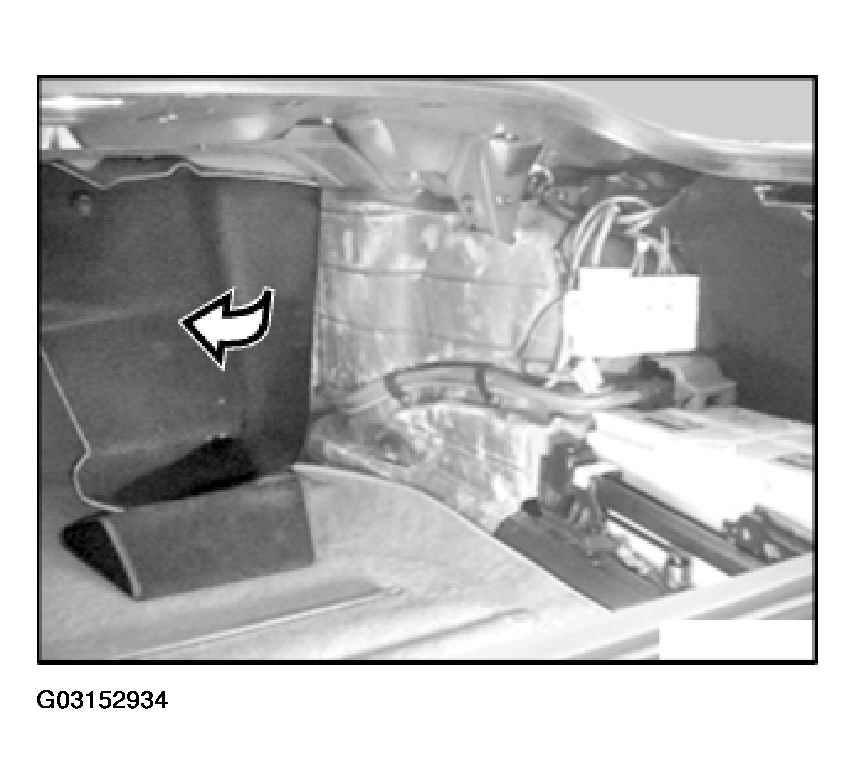

Fig 1: Removing Side Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Release front side trim panel partly and fold forward.

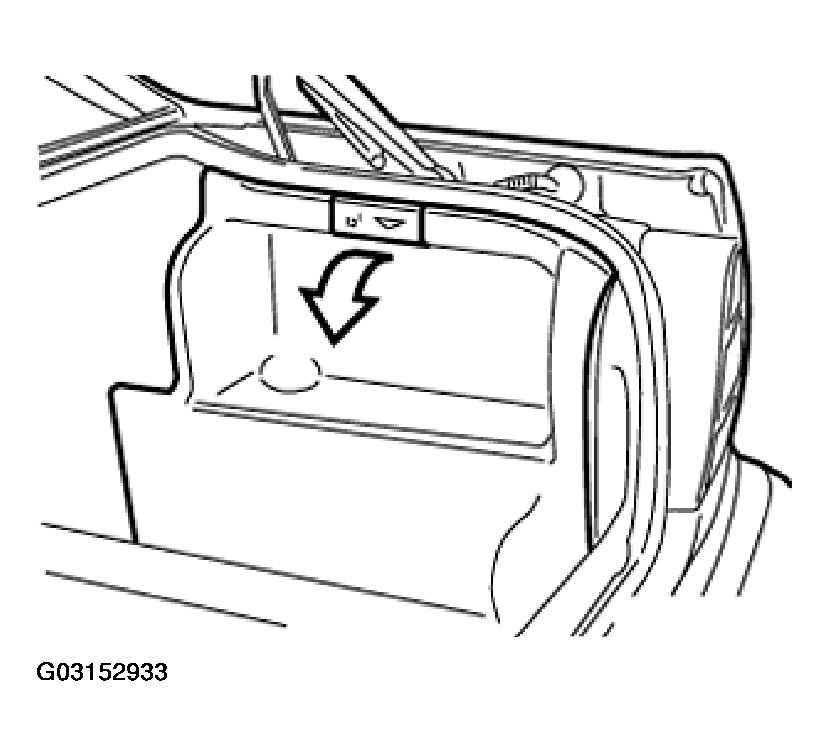

Fig 2: Releasing Front Side Trim Panel Partly And Fold Forward

Courtesy of BMW OF NORTH AMERICA, INC.
