12 13 009 Checking ignition coils (secondary coil)

Special tools required:

12 7 040
12 7 041
12 7 042
12 7 043
12 7 045
12 7 046
12 7 050

Carry out secondary voltage check using test adapter12 7 040.

IMPORTANT: Observe safety precautions.
Switch off ignition.

NOTE: The following checks can be carried out with the adapter kit:

Secondary voltage check
Comparison between ignition coils from different manufacturers
Ignition coil faults
Spark plug faults
Injection system faults

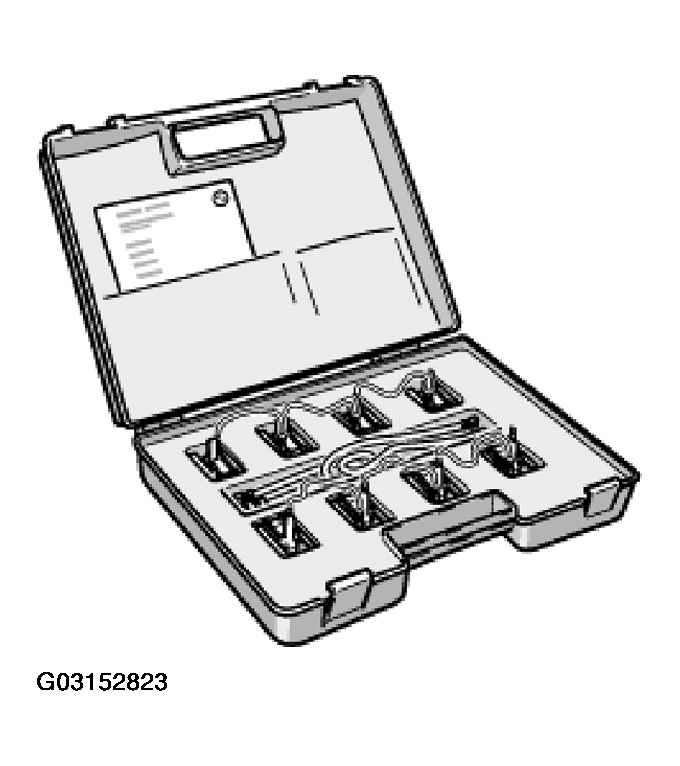

Fig 1: Identifying Adapter Kit

Courtesy of BMW OF NORTH AMERICA, INC.

Connect special tool12 7 043 (connecting cable) to special tool12 7 041 (single adapter).

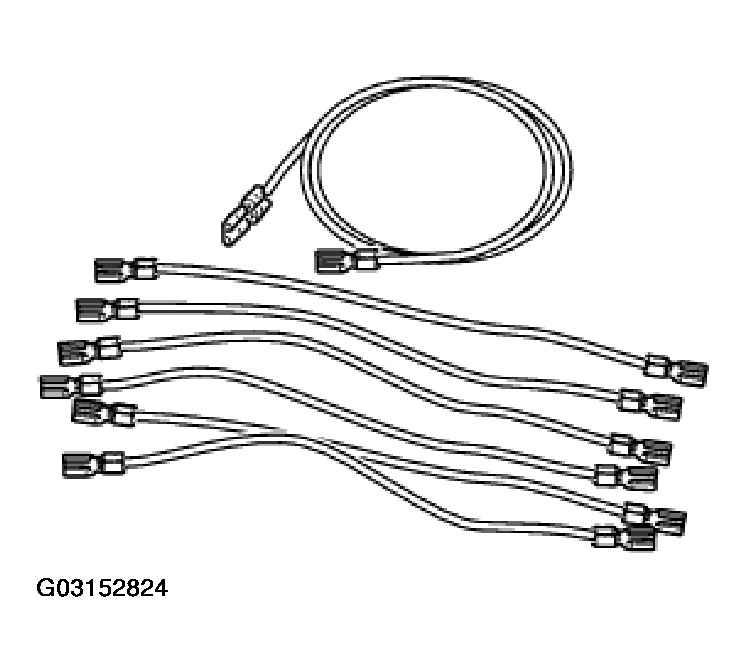

Fig 2: Identifying Special Tool 12 7 043 (Connecting Cable)

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Checks on engines with single-spark ignition coils:
Special tool 12 7 041 (single adapter) in conjunction with special tool 12 7 045 for fitting onto ignition coil.

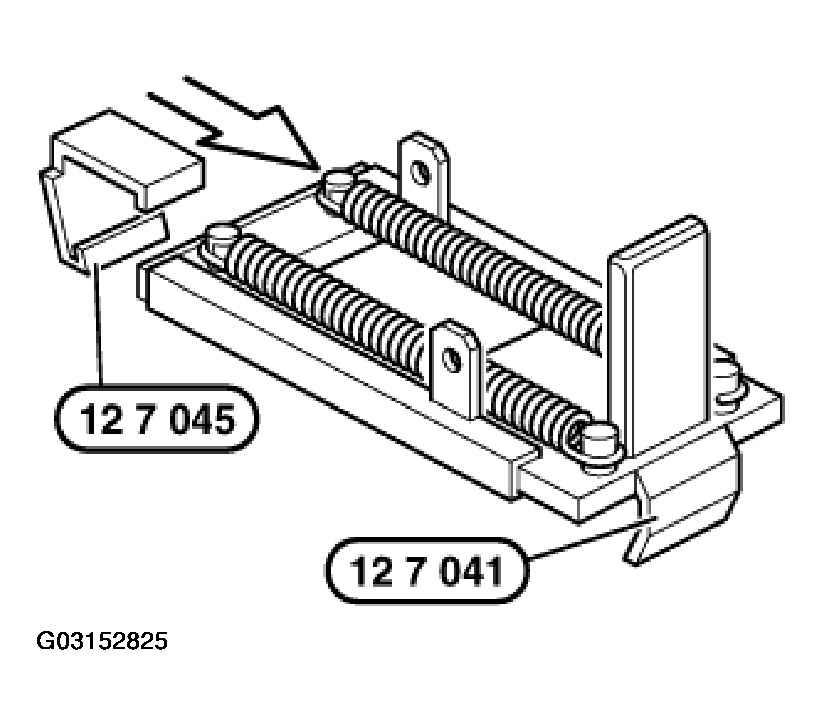

Fig 3: Connecting Special Tool 12 7 041 (Single Adapter) To Special Tool 12 7 045

Courtesy of BMW OF NORTH AMERICA, INC.

Remove cover for ignition coils.

Version with single-spark ignition coils:

Mount special tool12 7 041 on ignition coils and connect to special tool12 7 043.

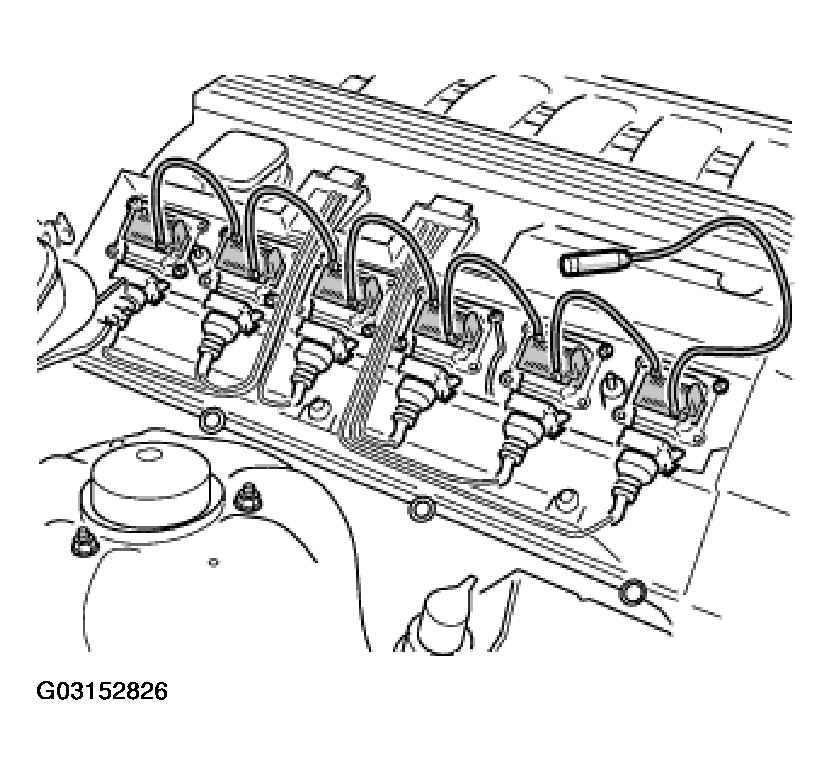

Fig 4: Mounting Special Tool 12 7 041 On Ignition Coils

Courtesy of BMW OF NORTH AMERICA, INC.

Connect DIS Tester with RZV connecting lead to last test adapter (RZV = static ignition distribution).

Connect trigger pliers of DIS tester to feed line on ignition coil of 1st cylinder.

Select "Measurement".
Select "Preset measurements".

Subsequent procedure in accordance with DIS instructions.

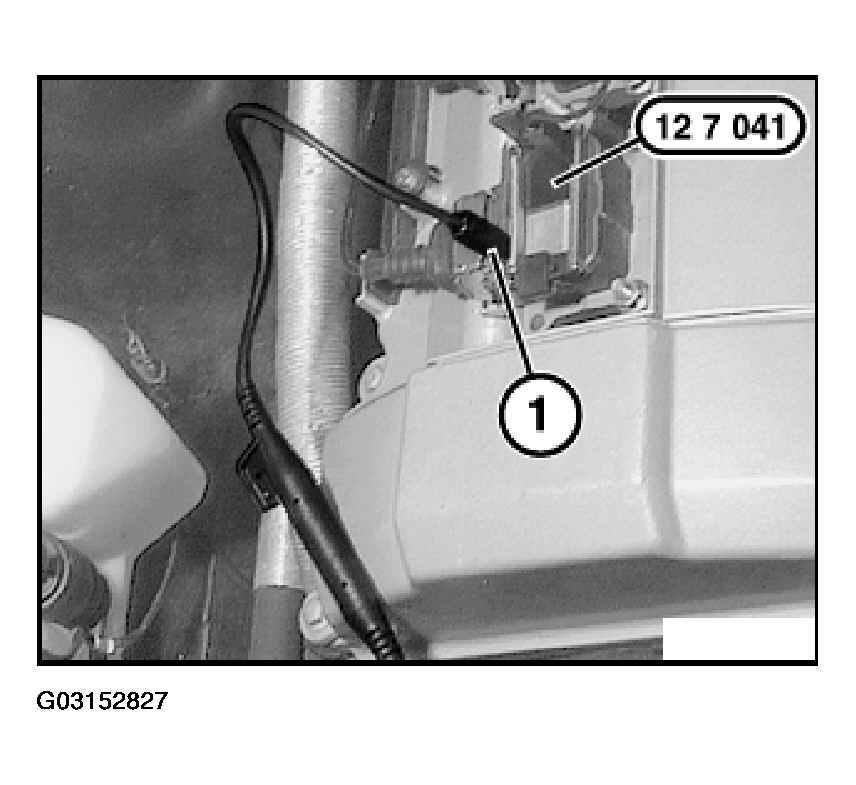

Fig 5: Identifying Feed Line On Ignition Coil Of 1st Cylinder

Courtesy of BMW OF NORTH AMERICA, INC.

Version with rod-type ignition coils:

Unlock plug on rod-type ignition coil and disconnect.

Remove rod-type ignition coil, connect special tool12 7 050 (adapter cable) to spark plug and ignition coil, connect ignition coil to engine wiring harness.

Carry out measurements following DIS instructions.

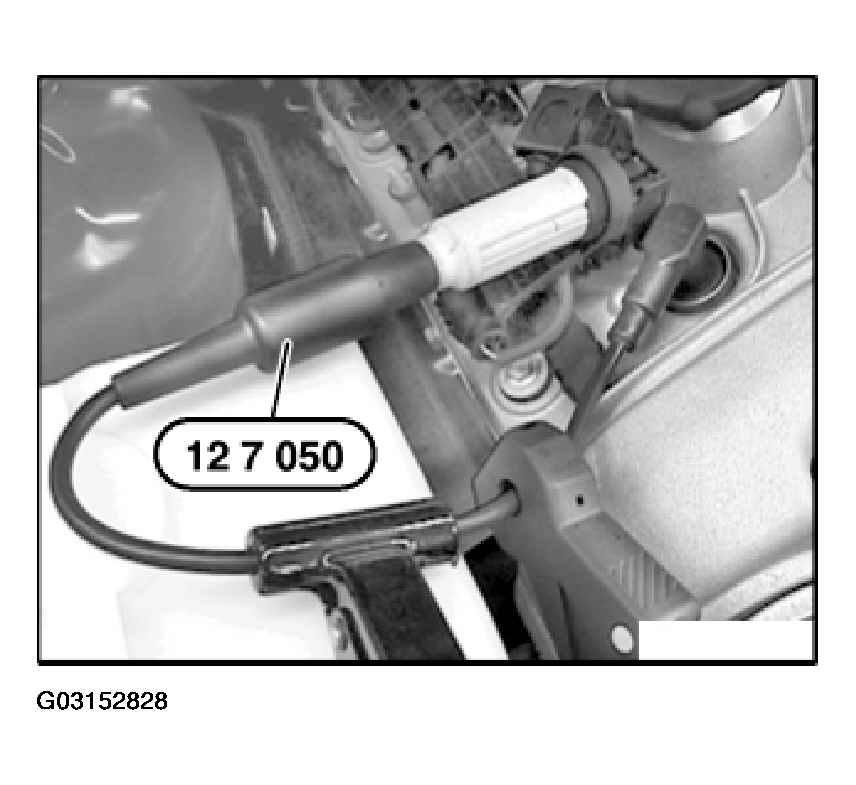

Fig 6: Connecting Special Tool 12 7 050 (Adapter Cable) To Spark Plug And Ignition

Courtesy of BMW OF NORTH AMERICA, INC.

Version with ignition coil block:

Raise cover on ignition coil block slightly and fit special tool12 7 046.

Connect special tool12 7 046 to adapter cable12 7 042 and then to Tester.

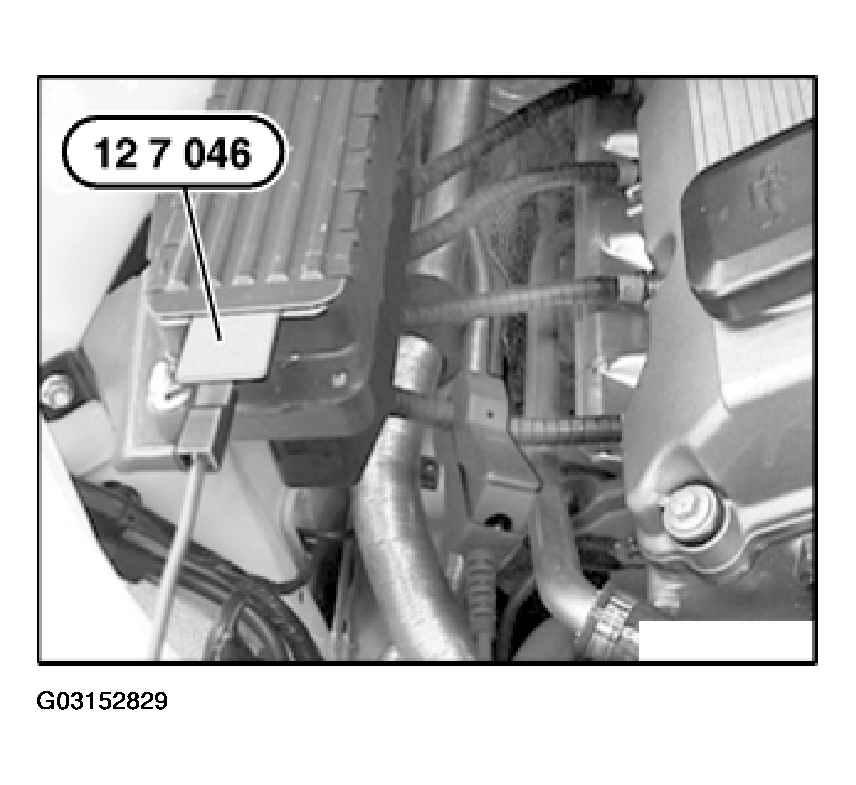

Fig 7: Identifying Special Tool 12 7 046

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The adapter cable 12 7 042 is located in the case of the adapter kit 12 7 040.
